6–4 415606-001 Service Reference Guide, dx2200 MT
Removal and Replacement Procedures— Microtower (MT) Chassis
6.4 Front Drive Bezels
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel (Section 6.3, “Front Bezel”).
3. Remove the front bezel (Section 6.3, “Front Bezel”).
6.4.1 5.25" Drive Bezel Blank

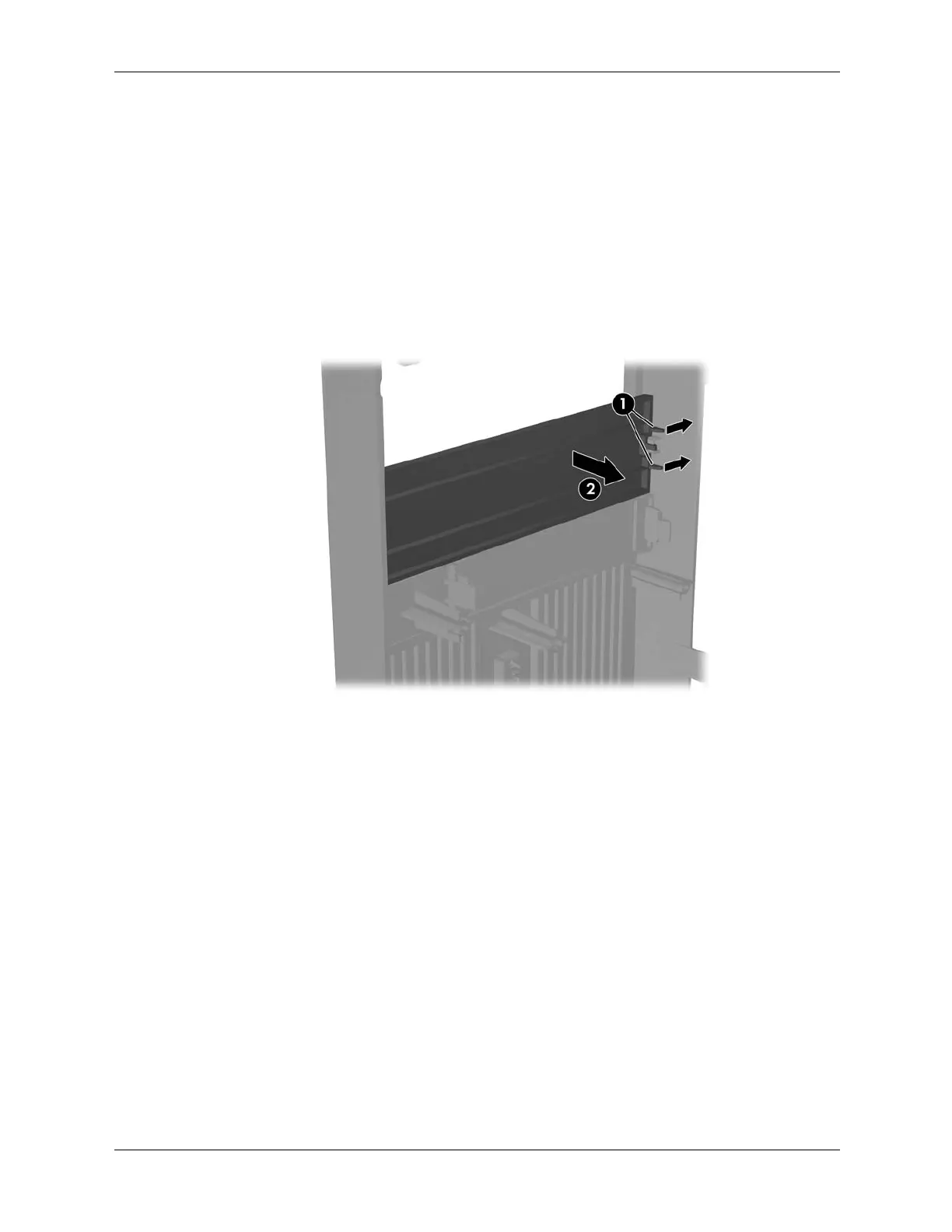

While facing the inside of the front bezel, press the two retaining tabs on the right towards the
outer edge of the bezel 1 and pull the bezel blank inwards to remove it 2.
To install a bezel blank, slide the left side of the blank into the two retainer slots on the left side
of the front bezel then snap the right side of the blank into place.
