6–14 415606-001 Service Reference Guide, dx2200 MT
Removal and Replacement Procedures— Microtower (MT) Chassis
6.8.3 3.5" Drive
If you are installing a device for the first time in the external 3.5” drive bay you will need to use a
flat blade screwdriver to break out the metal shield.
The 3.5" external drive bay may be populated with a diskette drive or a media card reader. The
removal procedure is the same for both devices.
1. Turn off the computer properly through the operating system and turn off any external
devices.
2. Disconnect the power cord from the power outlet and the computer, and disconnect any
external devices.
3. Remove the access panel. (Section 6.2, “Access Panel”)
4. Remove the front bezel. (Section 6.3, “Front Bezel”)
5. If the device is a media card reader, disconnect the internal USB cable from the system
board. If the device is a diskette drive, disconnect the power and data cables from the back of
the drive.

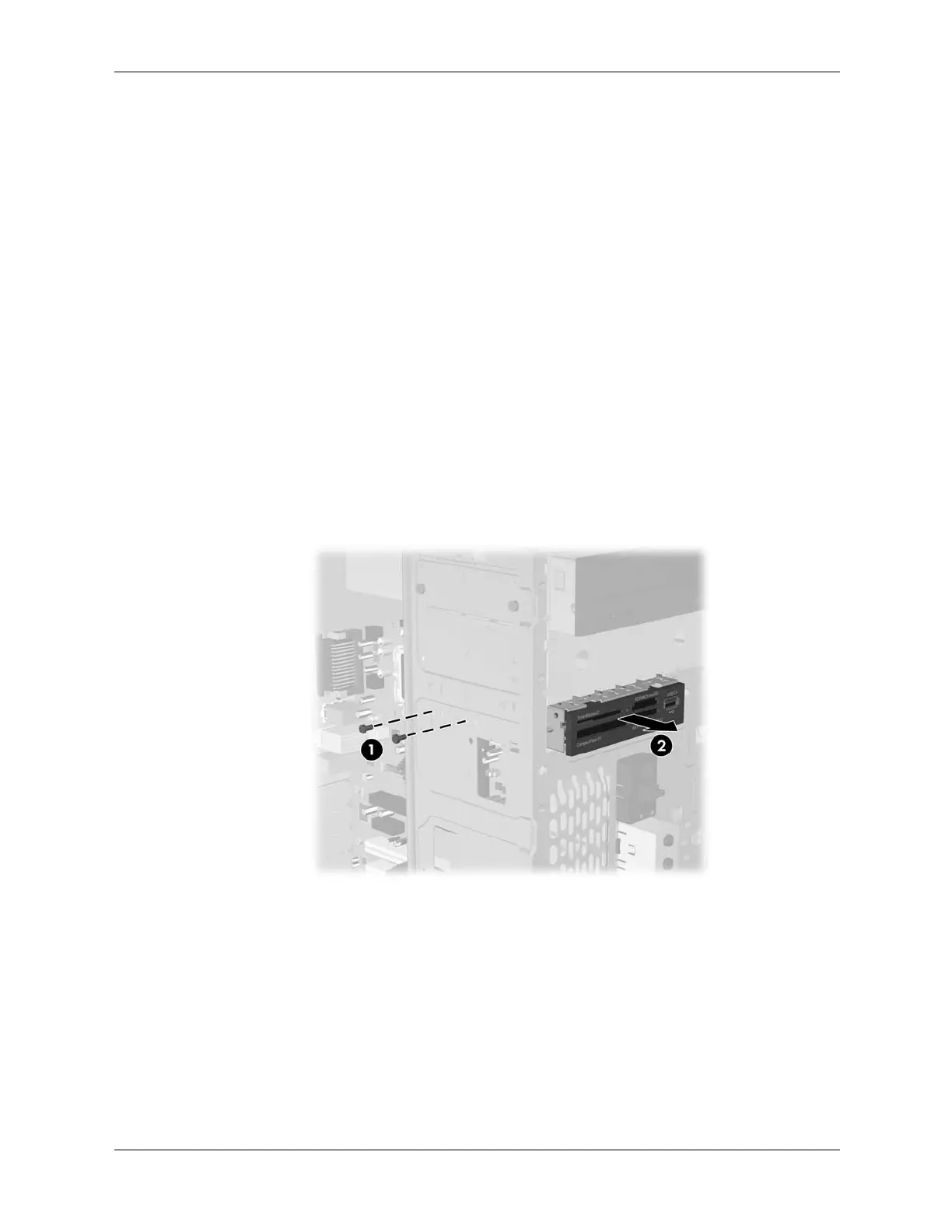

6. Remove the retainer screws that secure the drive to the bay 1 then slide the drive forward
and out of the bay 2.
To install a drive, reverse the removal procedure. Be sure to install a guide screw on the front
right side of a new drive. The guide screw helps secure the drive in place.
Refer to the table on the following page for proper retainer and guide screw locations.

HP dx2200 - Microtower PC Specifications

General

Chipset	Intel 945G Express
Memory	Up to 4 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 950
Audio	Integrated High Definition audio
Network	Integrated 10/100/1000 Ethernet
Front Ports	2 USB 2.0, headphone, microphone
Power Supply	300W
Processor	Intel Pentium 4 or Intel Celeron
Optical Drive	DVD-ROM
Expansion Slots	1 PCI Express x16, 3 PCI
Operating System	Windows XP Professional or FreeDOS
Rear Ports	4 USB 2.0, VGA, Ethernet, Line-in, Line-out, Microphone
Storage	SATA Hard Drive (capacity varies)
USB Ports	8 USB 2.0 (2 front, 4 rear, 2 internal)
