Service Reference Guide, dx2200 MT 415606-001 6–19
Removal and Replacement Procedures— Microtower (MT) Chassis
6.10 Speaker
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel (Section 6.2, “Access Panel”).
3. Remove the front bezel (Section 6.3, “Front Bezel”).
4. Disconnect the speaker cable from the system board.
5. Free the cable from the cable tie that is attached to the chassis.

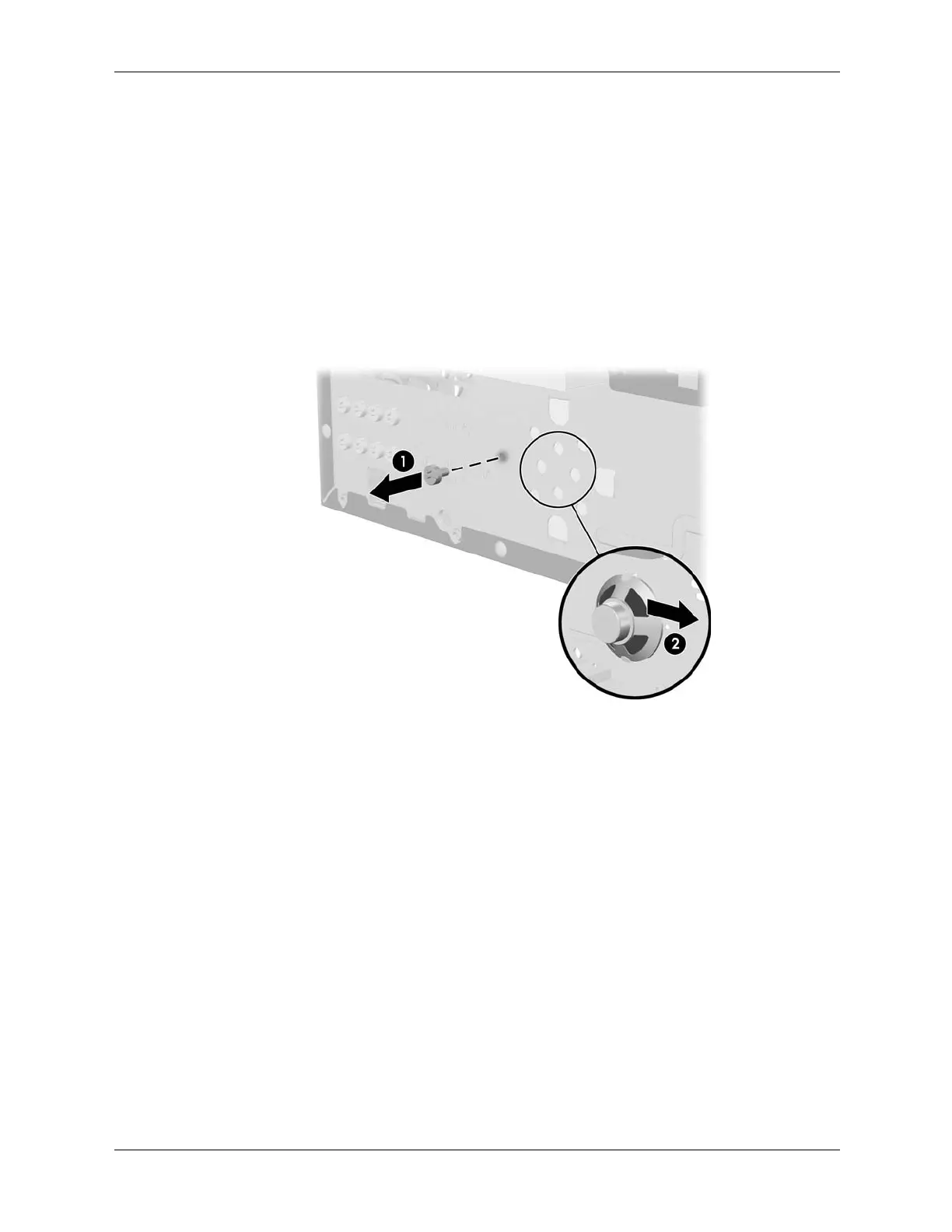

6. Remove the screw that secures the speaker to the inside of the chassis 1 then, remove the
speaker 2 by sliding it out of the retaining clips
To install the speaker, reverse the removal procedure.
When installing the speaker, make sure the speaker wires point towards the speaker retaining
screw.

HP dx2200 - Microtower PC Specifications

General

Chipset	Intel 945G Express
Memory	Up to 4 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 950
Audio	Integrated High Definition audio
Network	Integrated 10/100/1000 Ethernet
Front Ports	2 USB 2.0, headphone, microphone
Power Supply	300W
Processor	Intel Pentium 4 or Intel Celeron
Optical Drive	DVD-ROM
Expansion Slots	1 PCI Express x16, 3 PCI
Operating System	Windows XP Professional or FreeDOS
Rear Ports	4 USB 2.0, VGA, Ethernet, Line-in, Line-out, Microphone
Storage	SATA Hard Drive (capacity varies)
USB Ports	8 USB 2.0 (2 front, 4 rear, 2 internal)
