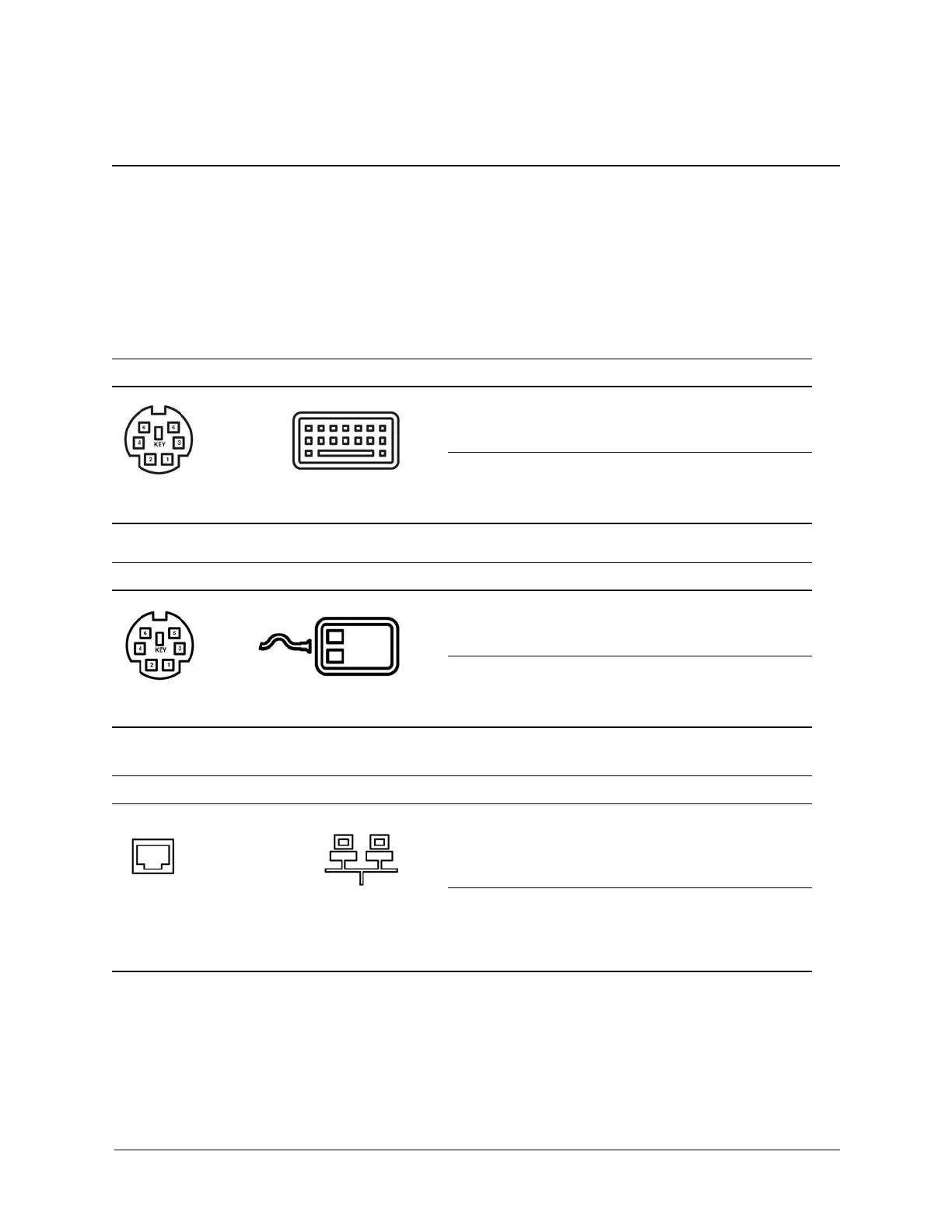

Connector Pin Assignments
This appendix contains the pin assignments for many computer and workstation connectors.
Some of these connectors may not be used on the product being serviced.
Enhanced Keyboard
Connector and Icon Pin Signal
1
2
3
Data
Unused
Ground
4
5
6
+5 VDC
Clock
Unused
Mouse
Connector and Icon Pin Signal
1
2
3
Data
Unused
Ground
4
5
6
+5 VDC
Clock
Unused
Ethernet RJ-45
Connector and Icon Pin Signal
1
2
3
4
(+) Transmit Data
(-) Transmit Data
(+) Receive Data
Unused
5
6
7
8
Unused
(-) Receive Data
Unused
Unused

HP dx2200 - Microtower PC Specifications

General

Chipset	Intel 945G Express
Memory	Up to 4 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 950
Audio	Integrated High Definition audio
Network	Integrated 10/100/1000 Ethernet
Front Ports	2 USB 2.0, headphone, microphone
Power Supply	300W
Processor	Intel Pentium 4 or Intel Celeron
Optical Drive	DVD-ROM
Expansion Slots	1 PCI Express x16, 3 PCI
Operating System	Windows XP Professional or FreeDOS
Rear Ports	4 USB 2.0, VGA, Ethernet, Line-in, Line-out, Microphone
Storage	SATA Hard Drive (capacity varies)
USB Ports	8 USB 2.0 (2 front, 4 rear, 2 internal)
