6–24 415606-001 Service Reference Guide, dx2200 MT
Removal and Replacement Procedures— Microtower (MT) Chassis
6.14 System Board
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel (Section 6.2, “Access Panel”).
3. Remove the front bezel (Section 6.3, “Front Bezel”).
4. Disconnect the power, and data cables from the back of all installed drives.
5. Disconnect all cables from the system board.
6. Remove the heatsink from the system board (Section 6.12, “Heatsink”).

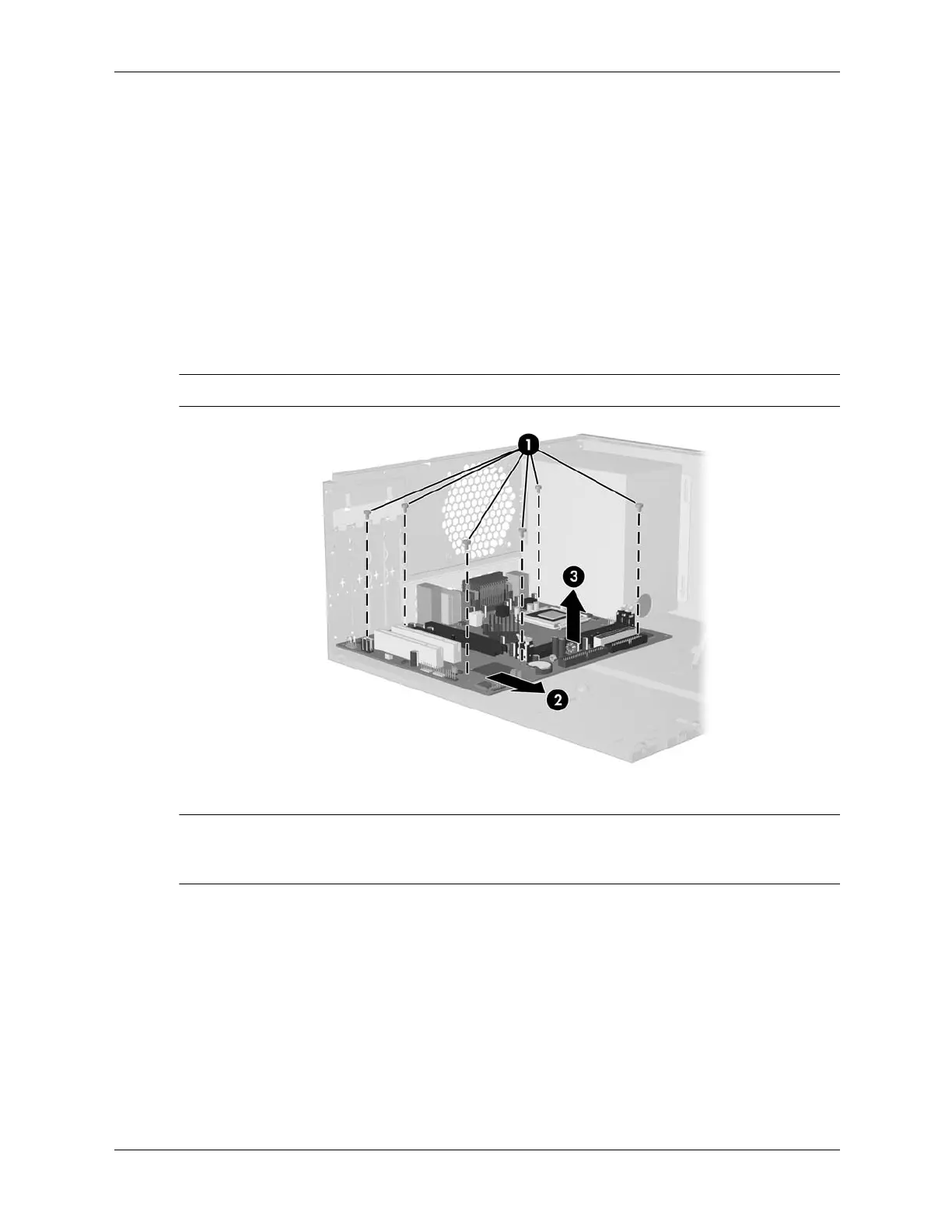

7. Remove the 6 screws that secure the system board to the chassis 1.
8. Slide the system board towards the front of the chassis 2 then remove it 3.
✎
The system board in the computer may look slightly different from the one shown here.
To install the system board, reverse the removal procedure.
✎
After installing a new system board, always update the system ROM to ensure that the latest
version of the BIOS is being used on the computer. The latest system ROM BIOS can be found
on the Web at: http:\\h18000.www1.hp.com/support/files.

HP dx2200 - Microtower PC Specifications

General

Chipset	Intel 945G Express
Memory	Up to 4 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 950
Audio	Integrated High Definition audio
Network	Integrated 10/100/1000 Ethernet
Front Ports	2 USB 2.0, headphone, microphone
Power Supply	300W
Processor	Intel Pentium 4 or Intel Celeron
Optical Drive	DVD-ROM
Expansion Slots	1 PCI Express x16, 3 PCI
Operating System	Windows XP Professional or FreeDOS
Rear Ports	4 USB 2.0, VGA, Ethernet, Line-in, Line-out, Microphone
Storage	SATA Hard Drive (capacity varies)
USB Ports	8 USB 2.0 (2 front, 4 rear, 2 internal)
