HP dx2200 - Microtower PC User Manual

Service Reference Guide, dx2200 MT 415606-001 6–9
Removal and Replacement Procedures— Microtower (MT) Chassis
8. Install a new expansion card or an expansion slot cover to close the open slot.
To install a replacement expansion card go to step 10.
9. If you are installing an expansion card for the first time you must first remove the expansion
slot cover. Use a flatblade screwdriver to pry out the metal shield on the rear panel that
covers the expansion slot. Be sure you remove the appropriate shield for the expansion card
you are installing.

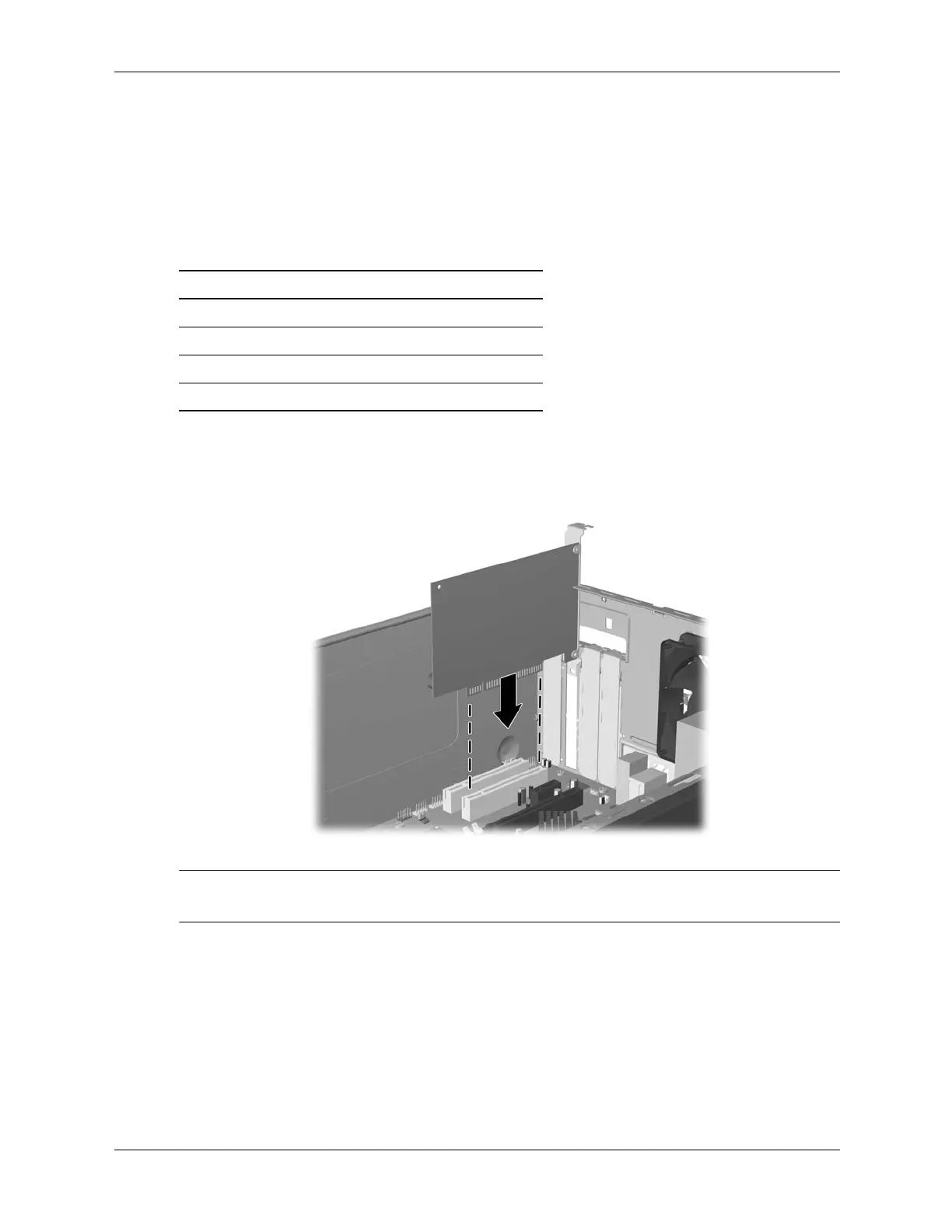

10. With the card aligned so the mounting bracket will fit firmly against the computer
backwall 1, slide the expansion card into the expansion socket and press it firmly into
place 2.
✎
When you install an expansion card, make sure you press firmly on the card so that the entire
connector seats properly in the expansion card socket.
11. Reinstall the slot cover lock and its retaining screw.
12. Replace the access panel.
13. Connect external cables to the installed card, if needed.
Reconfigure the computer, if necessary.
Removable Shield Expansion Card Type
Top shield PCI e x16
Second shield PCI e x1
Third shield PCI
Bottom shield PCI

HP dx2200 - Microtower PC Specifications

General

Chipset	Intel 945G Express
Memory	Up to 4 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 950
Audio	Integrated High Definition audio
Network	Integrated 10/100/1000 Ethernet
Front Ports	2 USB 2.0, headphone, microphone
Power Supply	300W
Processor	Intel Pentium 4 or Intel Celeron
Optical Drive	DVD-ROM
Expansion Slots	1 PCI Express x16, 3 PCI
Operating System	Windows XP Professional or FreeDOS
Rear Ports	4 USB 2.0, VGA, Ethernet, Line-in, Line-out, Microphone
Storage	SATA Hard Drive (capacity varies)
USB Ports	8 USB 2.0 (2 front, 4 rear, 2 internal)
