HP dx2200 - Microtower PC User Manual

Service Reference Guide, dx2200 MT 415606-001 A–3

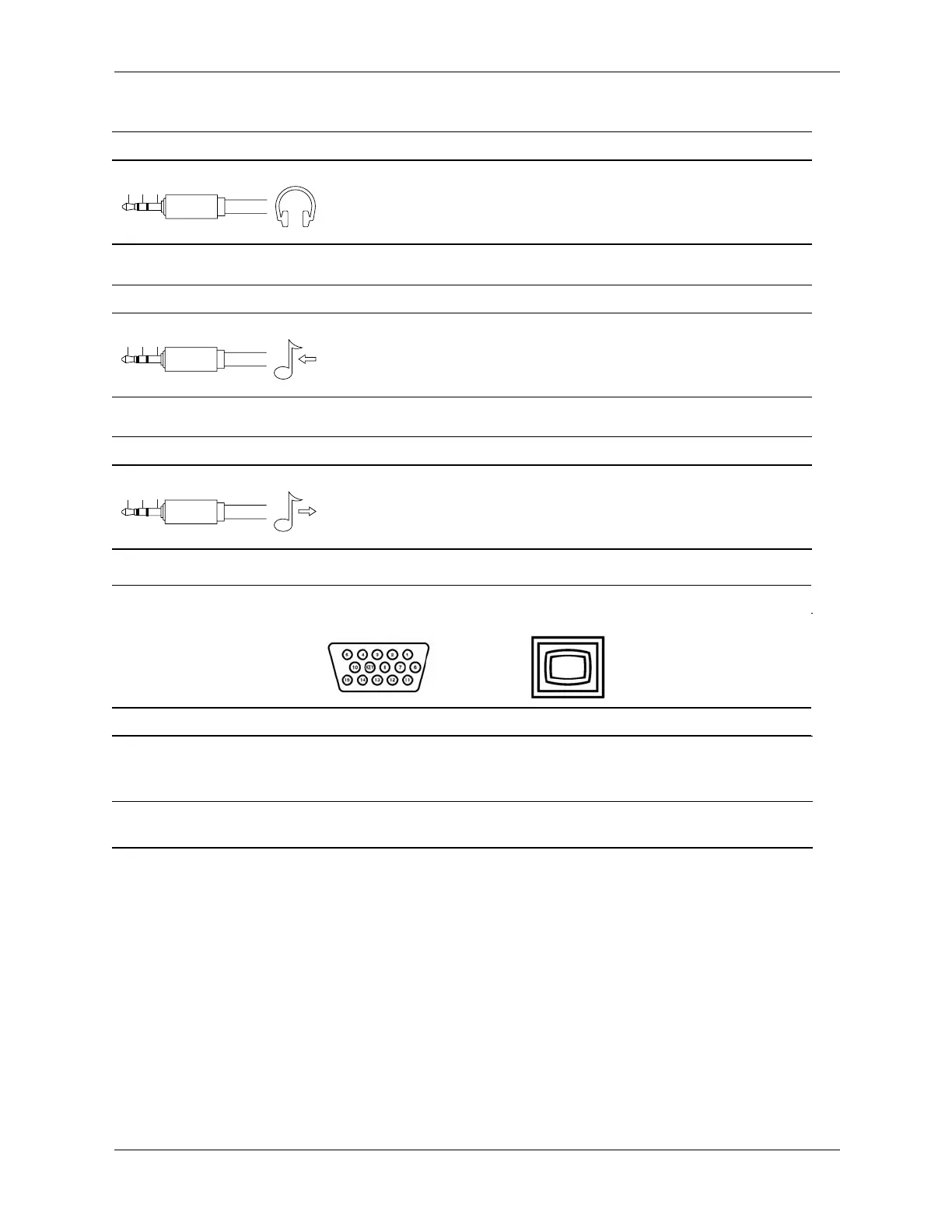

Connector Pin Assignments
Headphone
Connector and Icon (1/8" miniphone) Pin Signal
1 (Tip) Audio_Left
2 (Ring) Audio_Right
3 (Shield) Ground
Line-In Audio
Connector and Icon (1/8" miniphone) Pin Signal
1 (Tip) Audio_In_Left
2 (Ring) Audio_In_Right
3 (Shield) Ground
Line-Out Audio
Connector and Icon (1/8" miniphone) Pin Signal
1 (Tip) Audio_Out_Left
2 (Ring) Audio_Out_Right
3 (Shield) Ground
Monitor
Connector and Icon
Pin Signal Pin Signal Pin Signal
1
2
3
Red Analog
Green Analog
Blue Analog
6
7
8
Ground
Ground
Ground
11
12
13
Not used
DDC Serial Data
Horizontal Sync
4
5
Not used
Ground
9
10
+5V DC (fused)
Ground
14
15
Vertical Sync
DDC Serial Clock
1
2
3
1
2
3
1
2
3

HP dx2200 - Microtower PC Specifications

General

Chipset	Intel 945G Express
Memory	Up to 4 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 950
Audio	Integrated High Definition audio
Network	Integrated 10/100/1000 Ethernet
Front Ports	2 USB 2.0, headphone, microphone
Power Supply	300W
Processor	Intel Pentium 4 or Intel Celeron
Optical Drive	DVD-ROM
Expansion Slots	1 PCI Express x16, 3 PCI
Operating System	Windows XP Professional or FreeDOS
Rear Ports	4 USB 2.0, VGA, Ethernet, Line-in, Line-out, Microphone
Storage	SATA Hard Drive (capacity varies)
USB Ports	8 USB 2.0 (2 front, 4 rear, 2 internal)
