Power and Signal Distribution
7.4 Signal Distribution
Figures 7-5 through 7-7 show general signal distribution between the main subassemblies of the
system units.
NOTES:
See Figure 7-10 for header pinout.

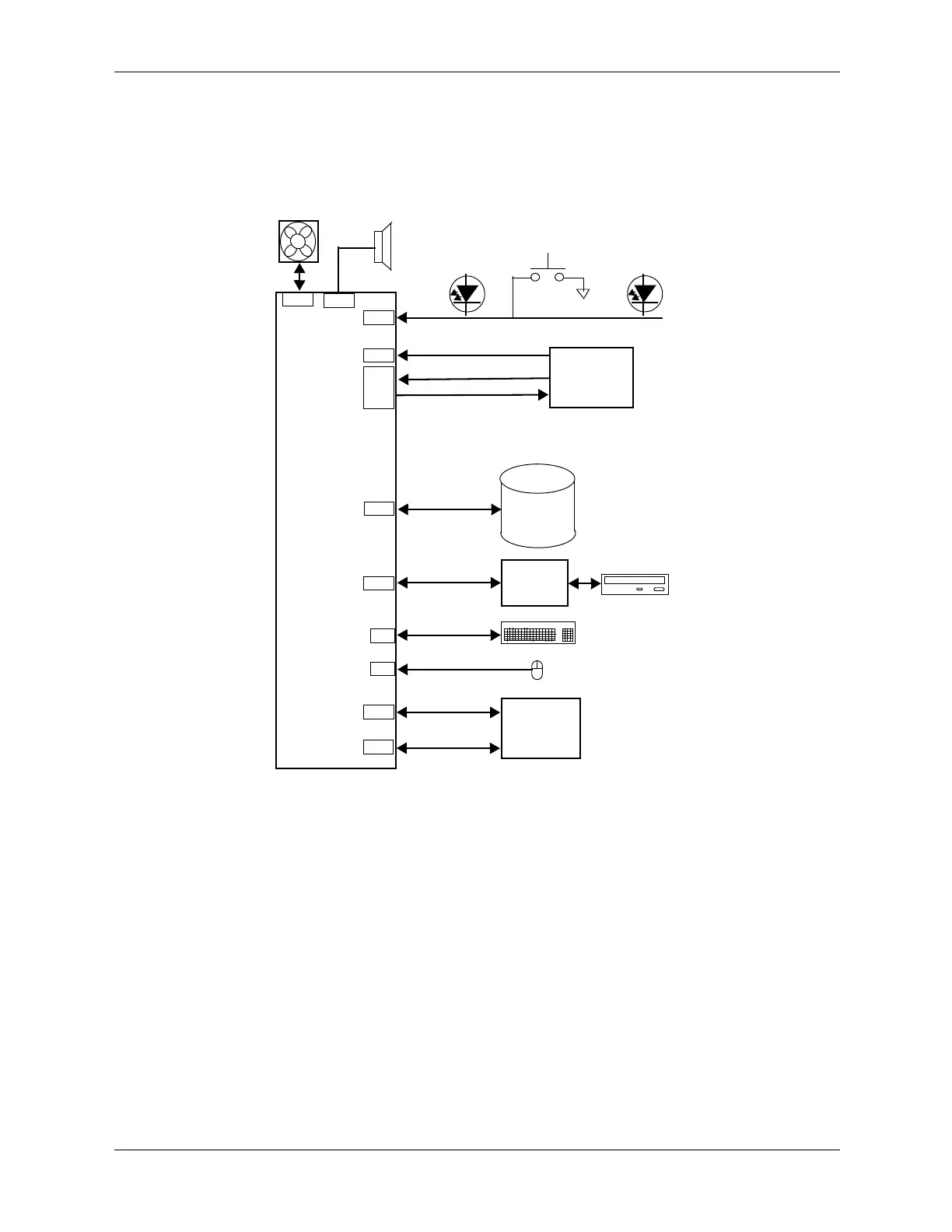

Figure 7-5. USDT Form Factor Signal Distribution Diagram
P8
+12 VccP
Power LED
IDE I/F.,
P1
Power
P6
P5
P3
Supply
Assembly
+3.3, +5, +5 Aux, +12 VDC
SATA-
Front
Mouse
PS On, POK
Hard Drive
SATA
Keyboard
P60
P21
P23
PATA
Interface
Diskette I/F.,
CD Audio
HD LED
System
Chassis Fan
Speaker
P24
Panel
I/O Module
Board
404233
Power On
J66
SATA I/F
USB 8,9 Tx/Rx
Kybd data
Mic In, HP Out
Audio
Mouse data
Slimline Optical Drive
J67
