System Overview
2.3.1 Cabinet Layouts
Front Views

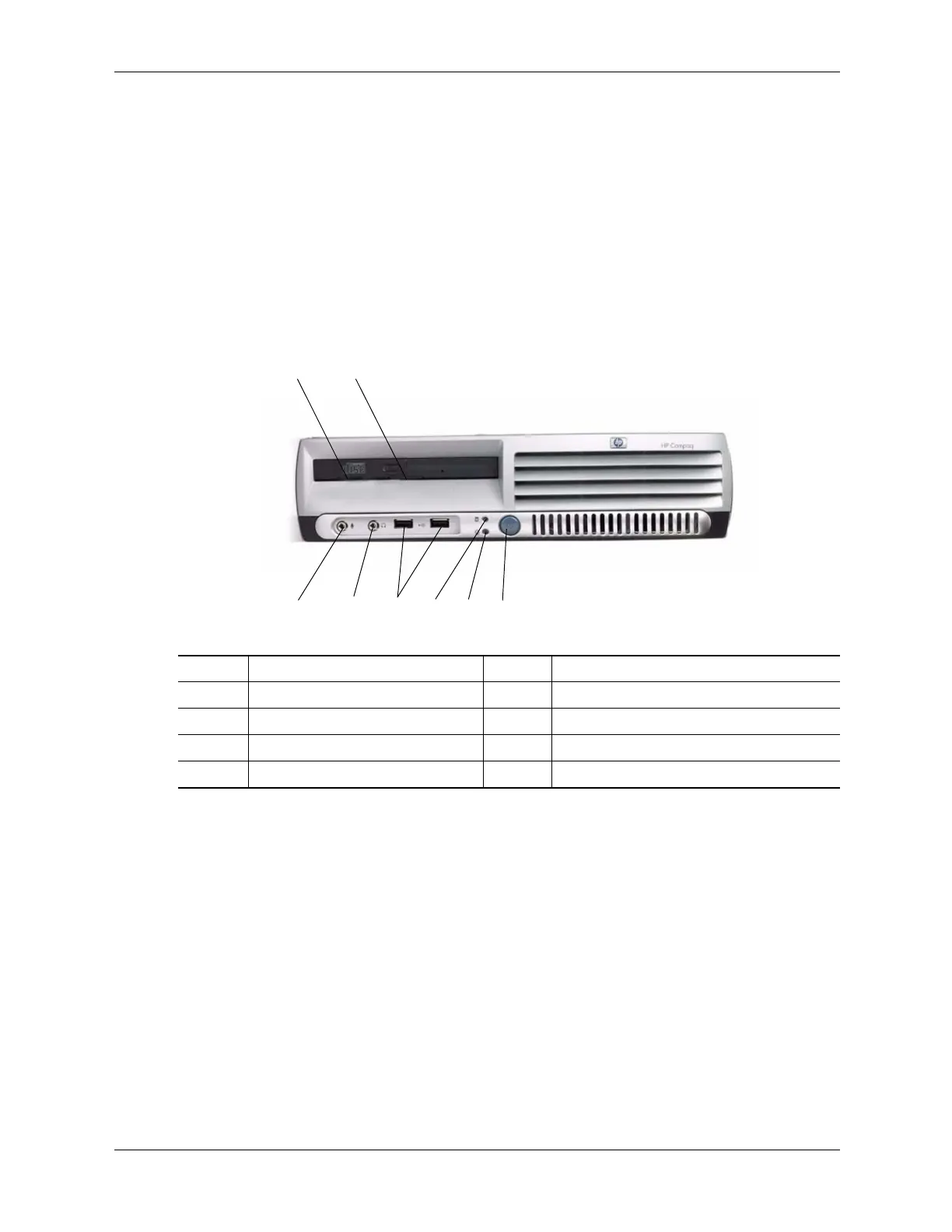

Figure 2-2 shows the front panel components of the Ultra Slim Desktop (USDT) format factor.
Figure 2-2. HP Compaq dc7700 USDT Front View
1
2
3
4
5
6
7
8
Item Description Item Decription
1 Slimline drive bay 5 USB ports 7, 8
2 CD-ROM eject button 6 HD activity LED
3 Microphone audio In jack 7 Power LED
4 Headphone audio Out jack 8 Power button
