2-12 www.hp.com Technical Reference Guide
System Overview
Microtower Chassis

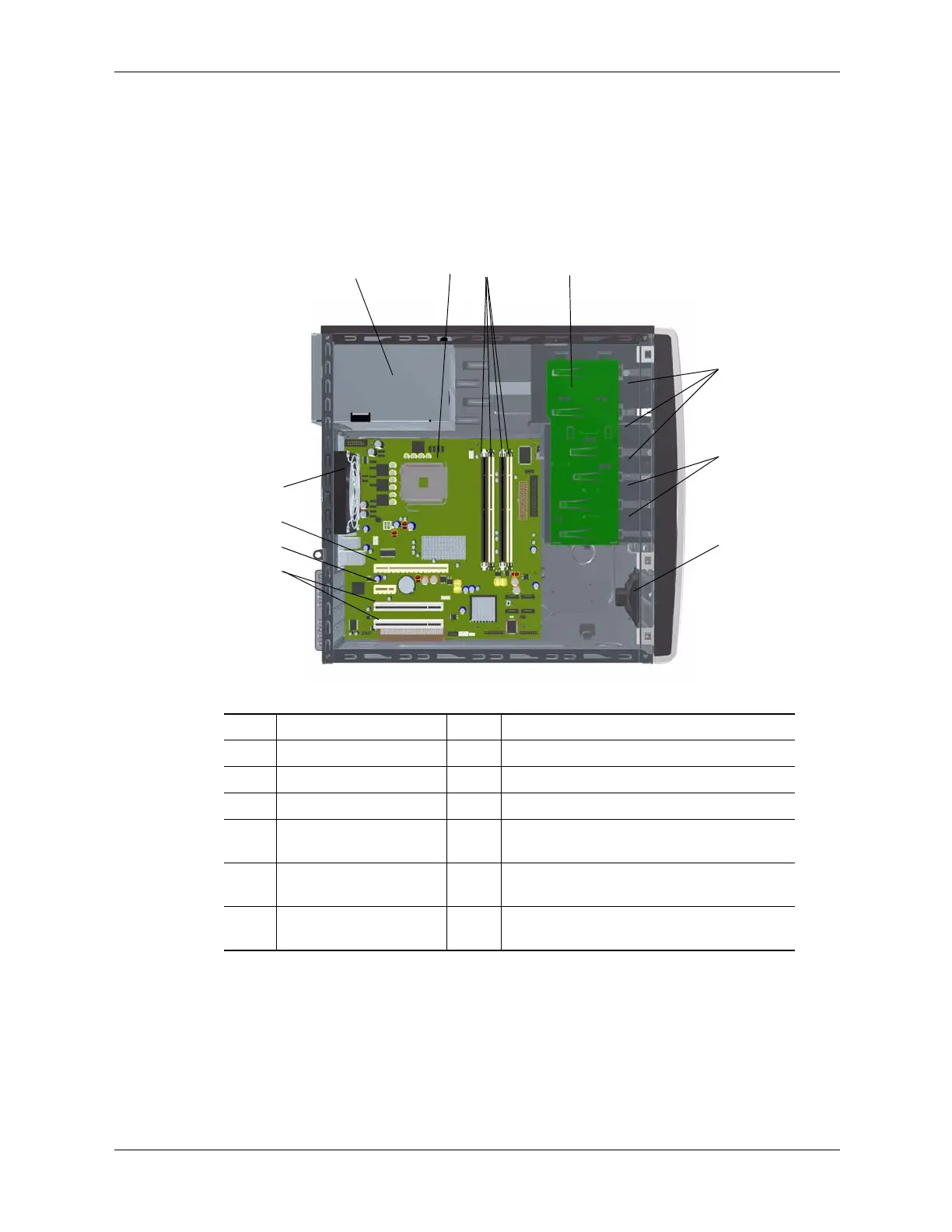

Figure 2-8 shows the layout for the Microtower (MT) chassis used for the HP Compaq dx7300
models. Features include:
Externally accessible drive bay assembly.
Easy access to expansion slots and all socketed system board components.
NOTE:
[1] Accepts PCI-E graphics or normal-layout ADD2 card.
Figure 2-8. MT Chassis Layout, Left Side View
1
3
4
5
6
2
7
-
8
9
q
Item Description Item Description
1 Power supply assembly 7 Speaker
2 Processor socket 8 PCI 2.3 slots
3 DIMM sockets (4) 9 PCI Express x1 slot
4 DriveLock 10 PCI Express x16 graphics/normal-layout
SDVO slot [1]
5 Externally accessible
drive bays
11 Chassis fan
6 Internally accessible
drive bays
-- --
