16

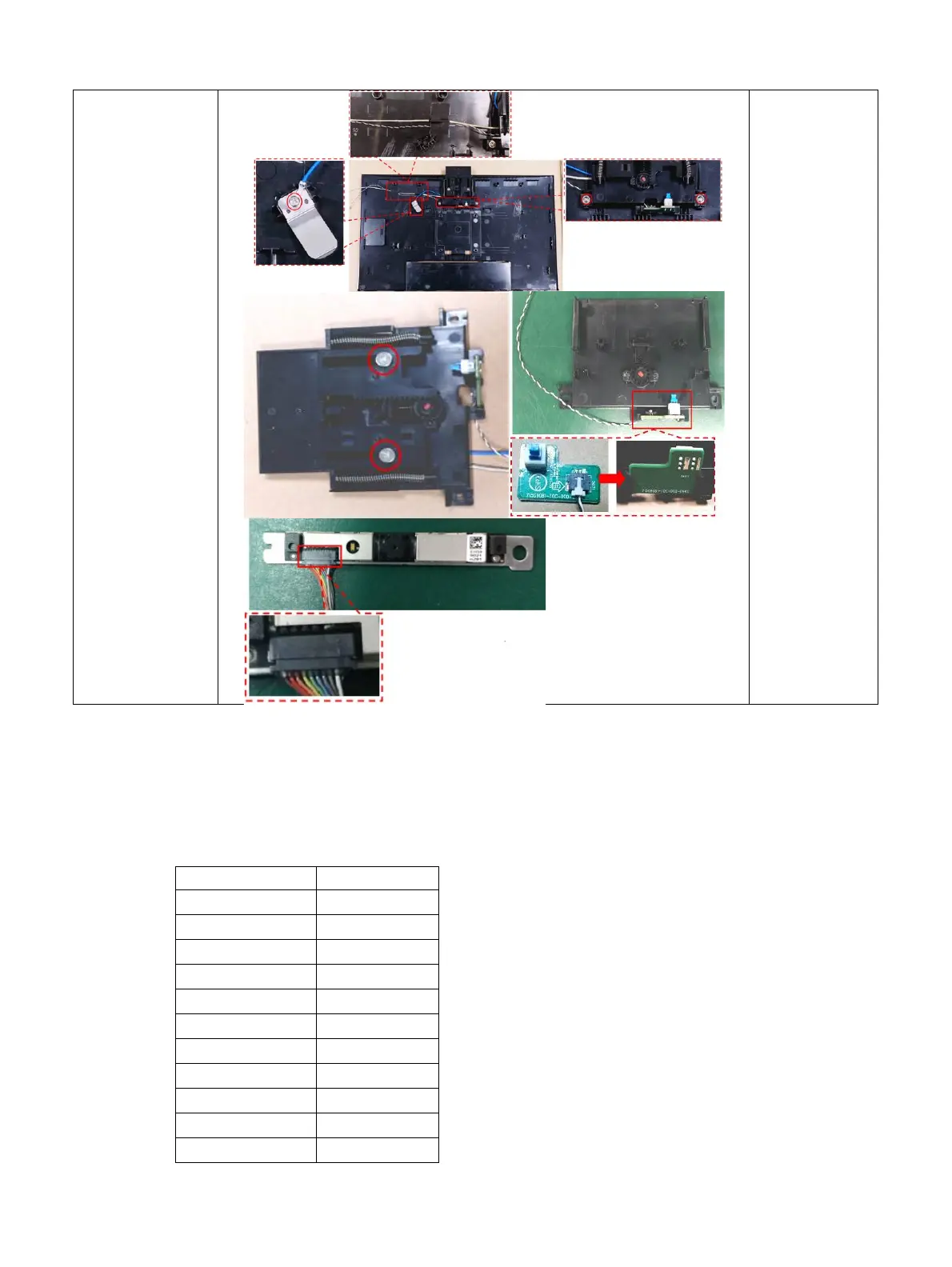

Remove the
screws to remove
the Webcam
Module and the
BKT
Remove the
screws to
remove the
Webcam Module
and the BKT
Connector repair
This procedure includes HDMI, DisplayPort and audio connectors.
The connectors are on the main board (board part number CBPCLE5HPQA).
The connectors identifiers are as follows:
Connector
Location
PHONE JACK
CN601
DC POWER JACK
CN7802
DC POWER JACK
CN7801
RJ45 +LED
CN107
USB B
CN106
USB 3.0
CN103
USB 3.0
CN104
D-SUB
CN501
HDMI
CN502
DP
CN504
USB Type-C
CN101
