3) Lift the CN501 connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
AC socket CN7801, CN7802
Repair the AC Socket port connector:

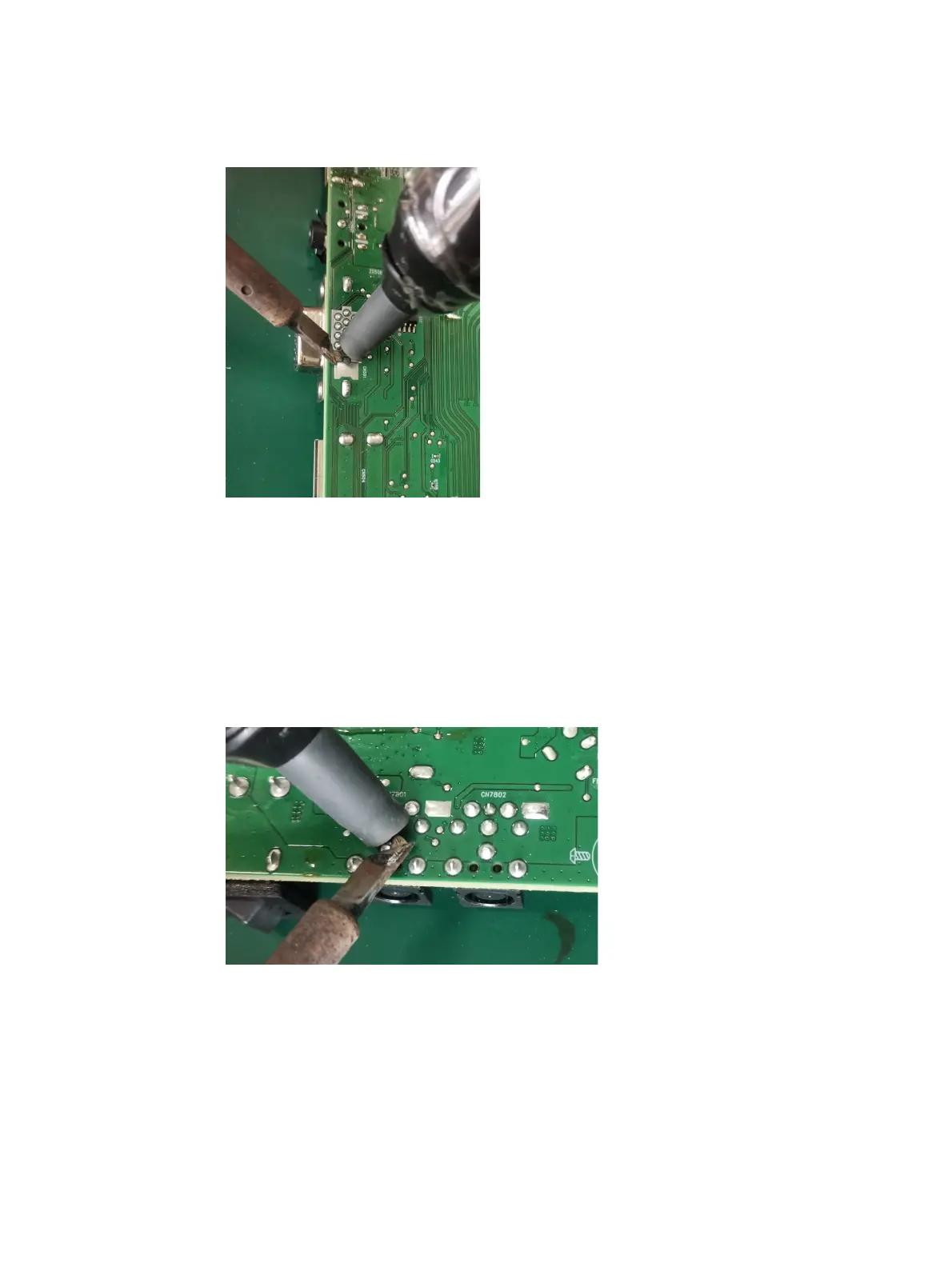

1) Use a soldering iron and a desoldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the AC socket connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
USB port CN106, CN103, CN104
Repair the USB port connector:
1) Use a soldering iron and a desoldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the USB connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
