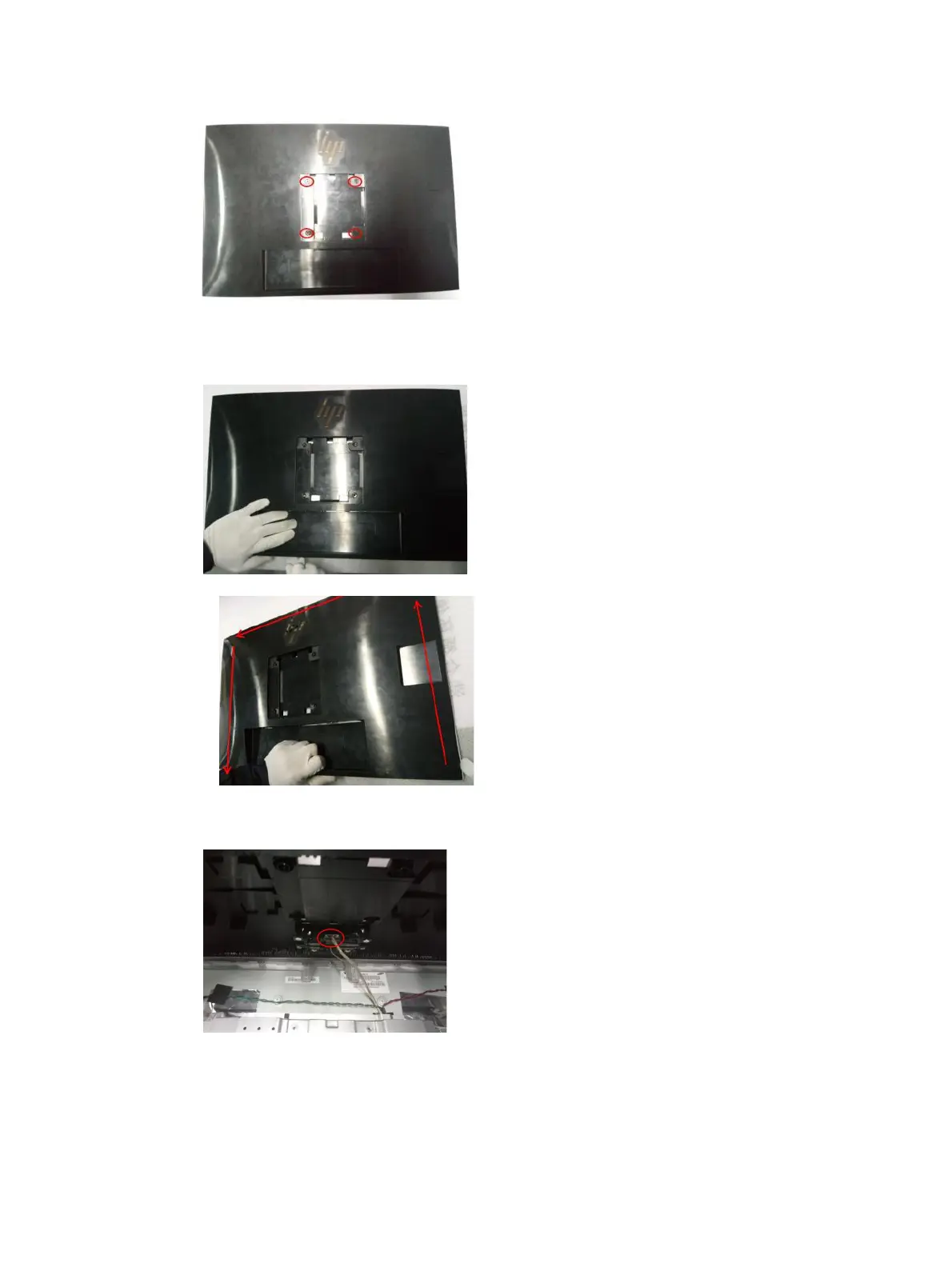

1) Remove four screw from the rear case.

Remove screw from rear cover

2) Insert the scraper bar tool into the gap between the middle frame and rear case, and then rotate. The hook

opens. Repeat the steps. Be careful with four corners DO NOT move away rear case immediately.

Separate rear cover and middle frame step

3) Hang up rear case, disconnect the webcam control cable and then take away rear case.

Webcam cable separate step
