Webcam cable separate step

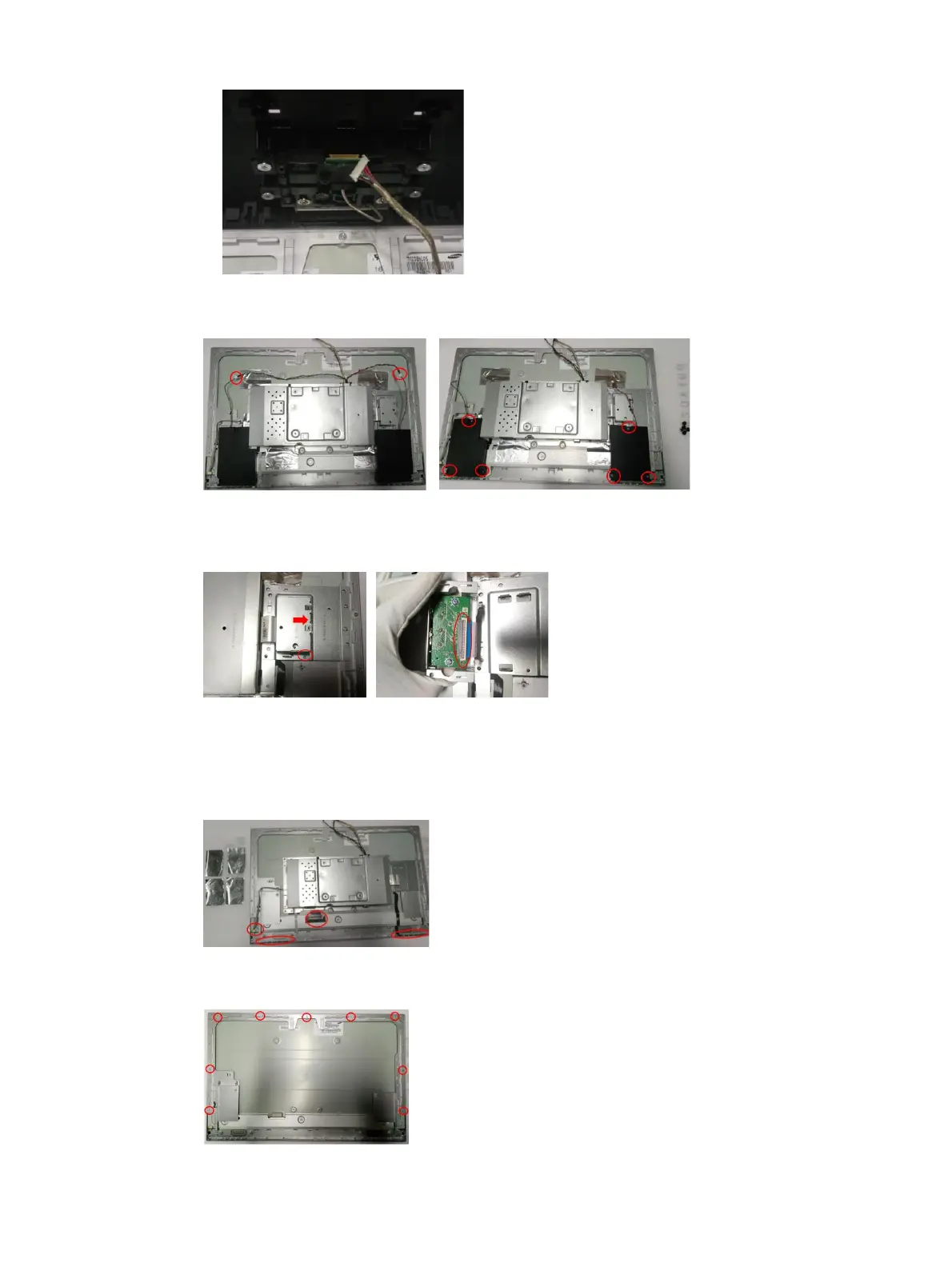

4) Peel off tapes, disconnect the speaker cables unfix six screws and take out the speakers.

5) Unscrew the side USB cover, pull it rightward and reverse, then disconnect the cable.

6) Peel the foils off, disconnect the backlight cable and LVDS cable. Take out the OSD keypad and LYNC

keypad.

cable and materials separate step

7) Take away the metal chassis, unscrew middle frame from panel.

Separate middle frame and panel

Speaker separate step

USB side chassis separate step
