HP E24u G4 - Page 14

11

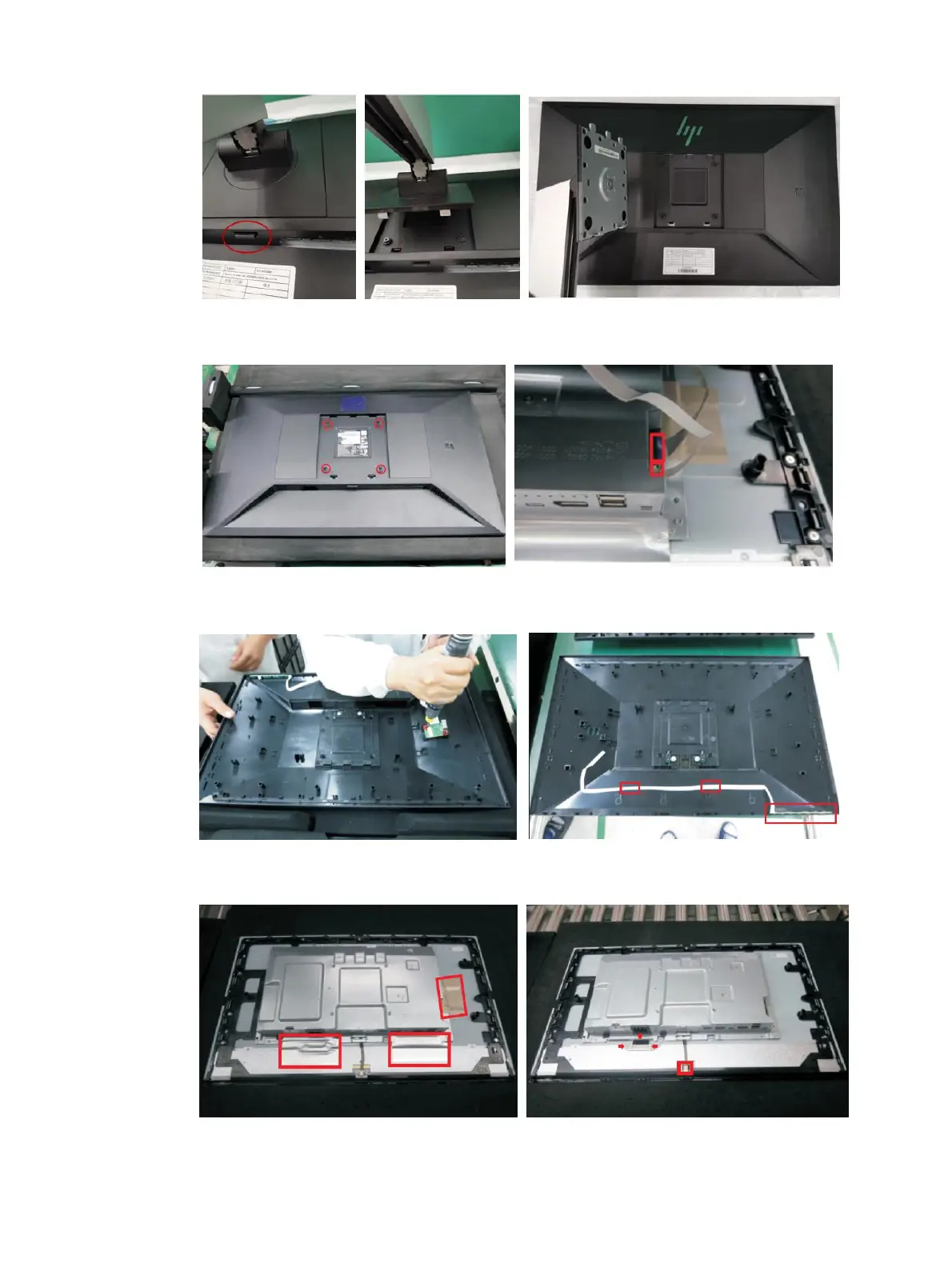

2) Use tool to release the four screws from rear cover. Pull the rear cover by disconnecting the cables.
3) Release the two screws for removing the USB BD. Remove OSD BD from the hook of the rear cover.
4) Remove AI foil. Disconnect LVDS cable and panel cable.
