HP E24u G4 User Manual

12

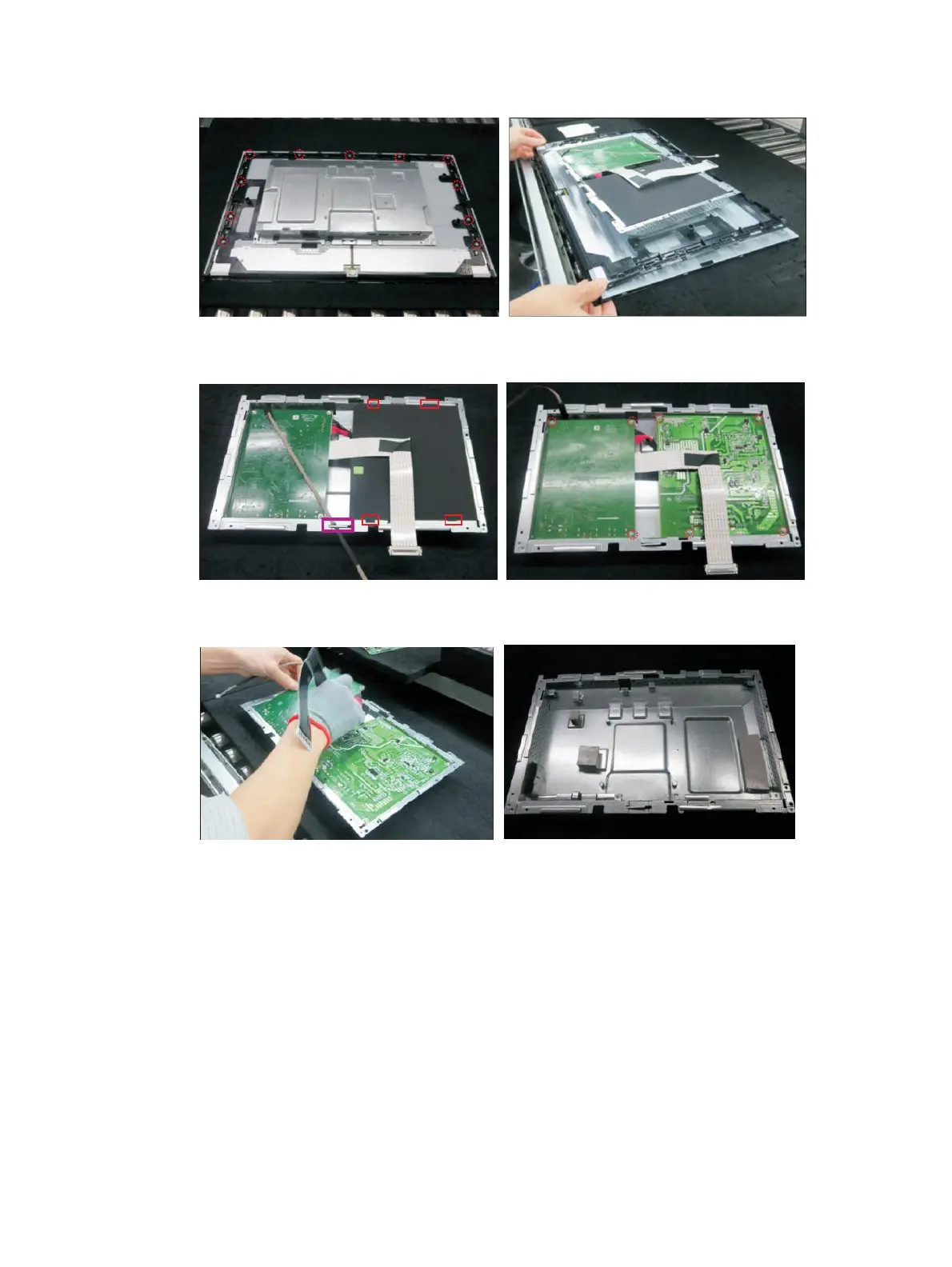

5) Release all the screws. Remove middle cover and bracket.
6) Remove the safety Mylar, then release the seven screws from the interface BD and power BD
7) Remove the power BD and Interface BD from the bracket
Power board
The power board part number is 755.A2403.A001.
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 10.
Remove the power board:
1) The HP E24u G4 power board connector position is as follows:

HP E24u G4 Specifications

General

Color gamut	72 %
Pixel pitch	0.274 x 0.274 mm
Screen shape	Flat
Backlight type	Edge LED
Display diagonal	23.8 \
Surface hardness	3H
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	50 - 60 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 80 kHz
Contrast ratio (dynamic)	5000000:1
Display number of colors	-
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HDMI	Yes
HDMI version	1.4
DisplayPort version	1.2
USB upstream port type	USB Type-C
USB Type-A downstream ports quantity	4
AC input voltage	100 - 240 V
Power consumption (max)	131 W
Power consumption (standby)	0.5 W
Power consumption (typical)	22 W
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	223 mm
Package width	611 mm
Package height	392 mm
Package weight	8890 g
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 23 °
Height adjustment	150 mm
Panel mounting interface	100 x 100 mm
Cables included	AC, USB Type-C
Product color	Black, Silver
Market positioning	Business
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	207 mm
Width (with stand)	539.4 mm
Height (with stand)	494.9 mm
Weight (with stand)	6300 g
Depth (without stand)	47 mm
Height (without stand)	323.3 mm
