2-16

Installing the Switch

Installation Procedures

Using the RJ-45 Connectors

To connect:

Push the RJ-45 plug into the RJ-45

port until the tab on the plug clicks

into place. When power is on for the

switch and for the connected device,

the Link LED for the port should

light to confirm a powered-on device

(for example, an end node) is at the

other end of the cable.

If the Link LED does not go on when

the network cable is connected to

the port, see “Diagnosing With the

LEDs” in chapter 4,

“Troubleshooting”.

To disconnect:

Press the small tab on the plug and

pull the plug out of the port.

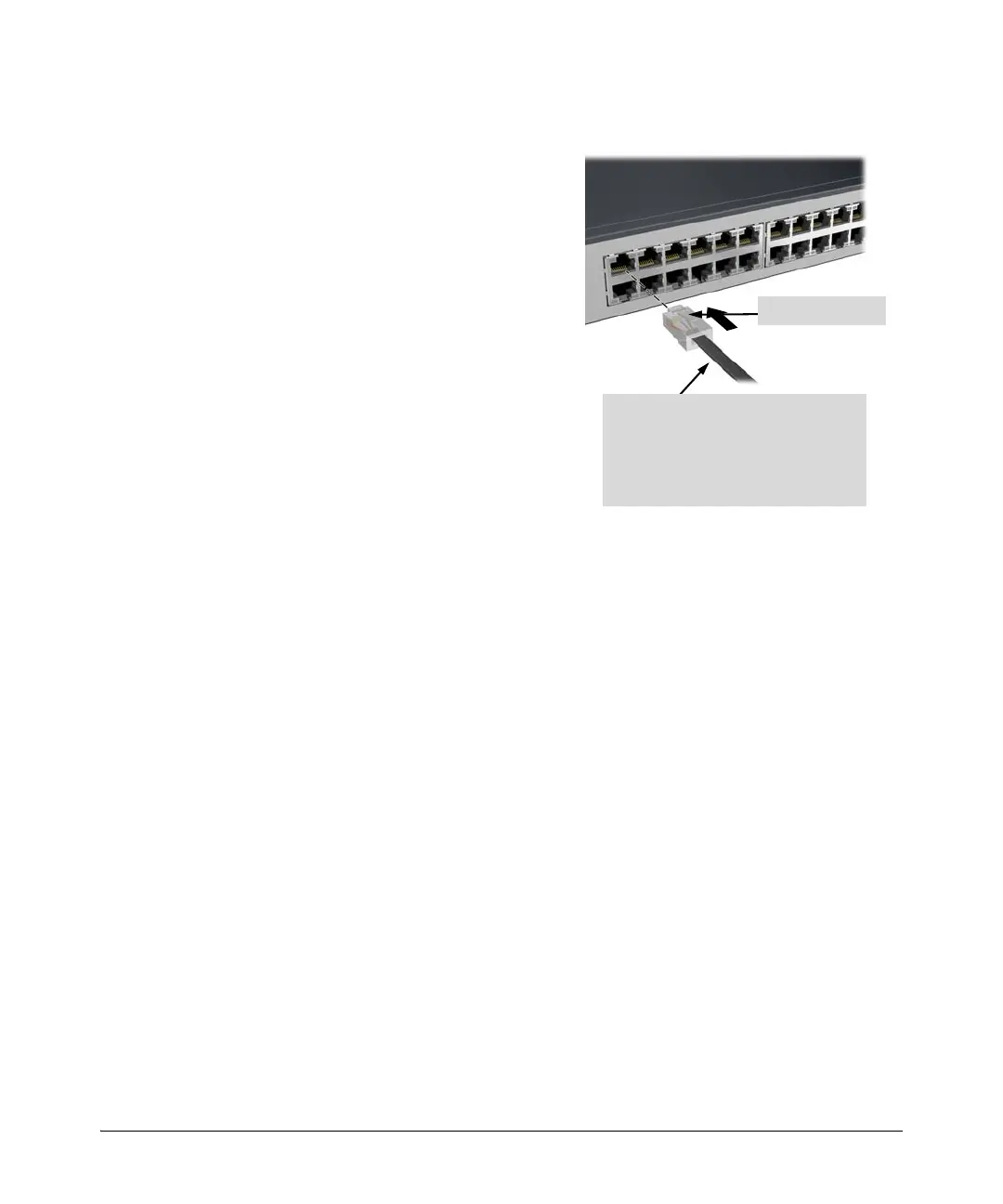

RJ-45 connector

Unshielded twisted-pair cable:

• Category 3, 4, or 5 for 10 Mbps ports

• Category 5 or better for 100 Mbps ports

• Category 5e or better for 1000 Mbps ports

Maximum distance: 100 meters

Figure 2-10. Connecting network cables
