B-4
Cabling and Technology Information
Twisted-Pair Cable/Connector Pin-Outs

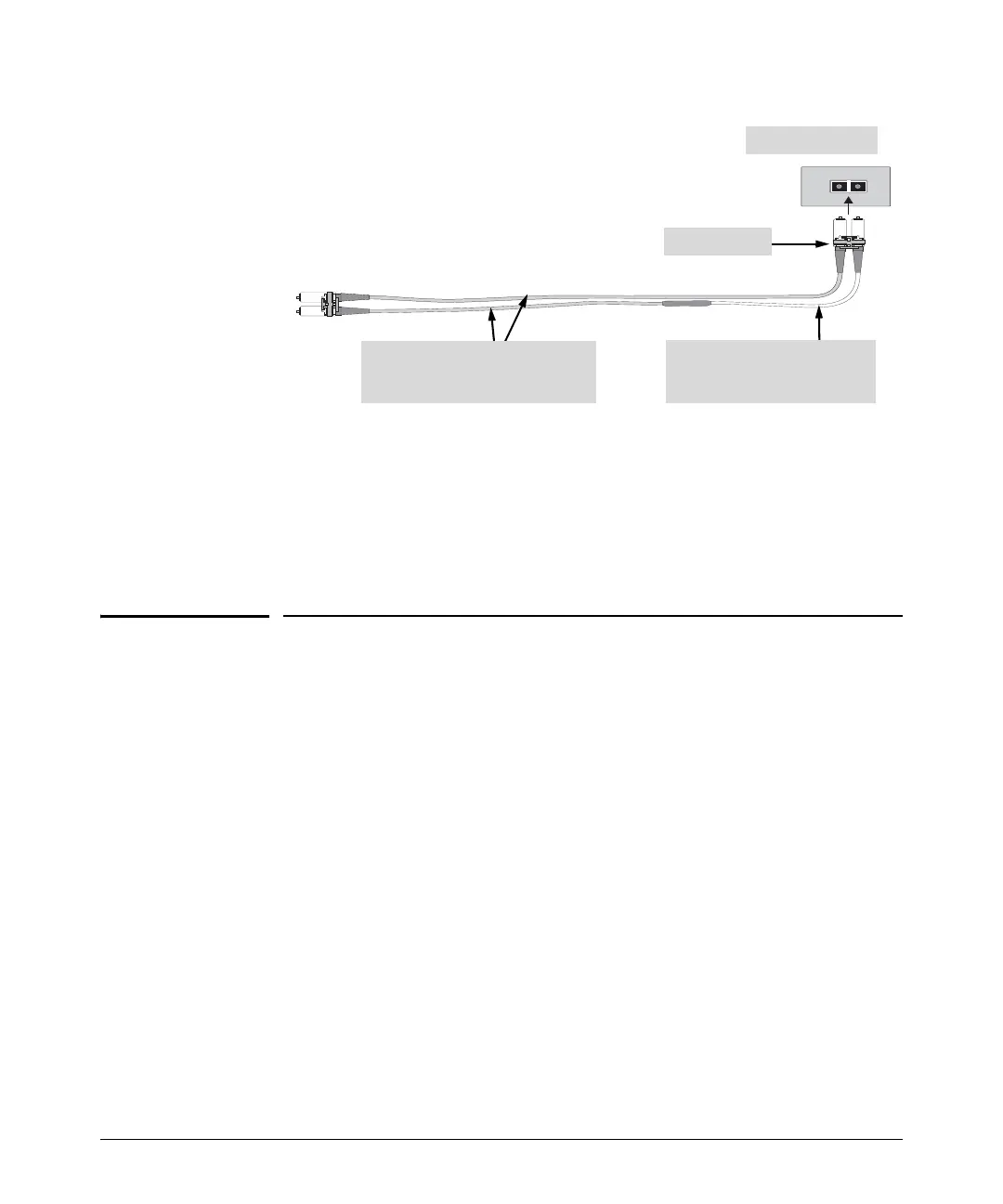

Figure B-1. Connecting a patch cord
Make sure you purchase a patch cord that has appropriate connectors on each
end, and has multimode fibers that match the characteristics of the multimode
fiber in your network. Most important, the core diameter of the multimode
patch cord must match the core diameter of the multimode cable
infrastructure (either 50 or 62.5 microns).
Twisted-Pair Cable/Connector Pin-Outs
The Auto-MDIX Feature:
In the default configuration, “Auto”, the fixed 10/100Base-TX ports on the
E2620 Switches all automatically detect the type of port on the connected
device and operate as either an MDI or MDI-X port, whichever is appropriate.
So for any connection, a straight-through twisted-pair cable can be used—you
no longer have to use crossover cables, although crossover cables can also be
used for any of the connections. (The 10/100/1000-T ports support the IEEE
802.3ab standard, which includes the “Auto MDI/MDI-X” feature, which
operates the same way.)
If you connect a E2620 or E2620-PoE+ Switch twisted-pair port to another
switch or hub, which typically have MDI-X ports, the E2620 Switch port
automatically operates as an MDI port. If you connect it to an end node, such
as a server or PC, which typically have MDI ports, the E2620 Switch port
operates as an MDI-X port. In all cases, you can use standard straight-through
cables or crossover cables.
If you happen to use a correctly wired crossover cable, though, the switch will
still be able to automatically detect the MDI/MDI-X operation and link
correctly to the connected device.
To network
multimode
cabling
Mode Conditioning
Patch Cord
Gigabit-LX port
Single-mode section plugs into Tx
port on Gigabit-LX Transceiver or
Gigabit-LX mini-GBIC
The multimode cable in the patch cord
must match the characteristics of your
network cable
LC Connector
To Next Page
