Installing the Switch
Sample Network Topologies for Non-PoE+ Switches
As a Segment Switch

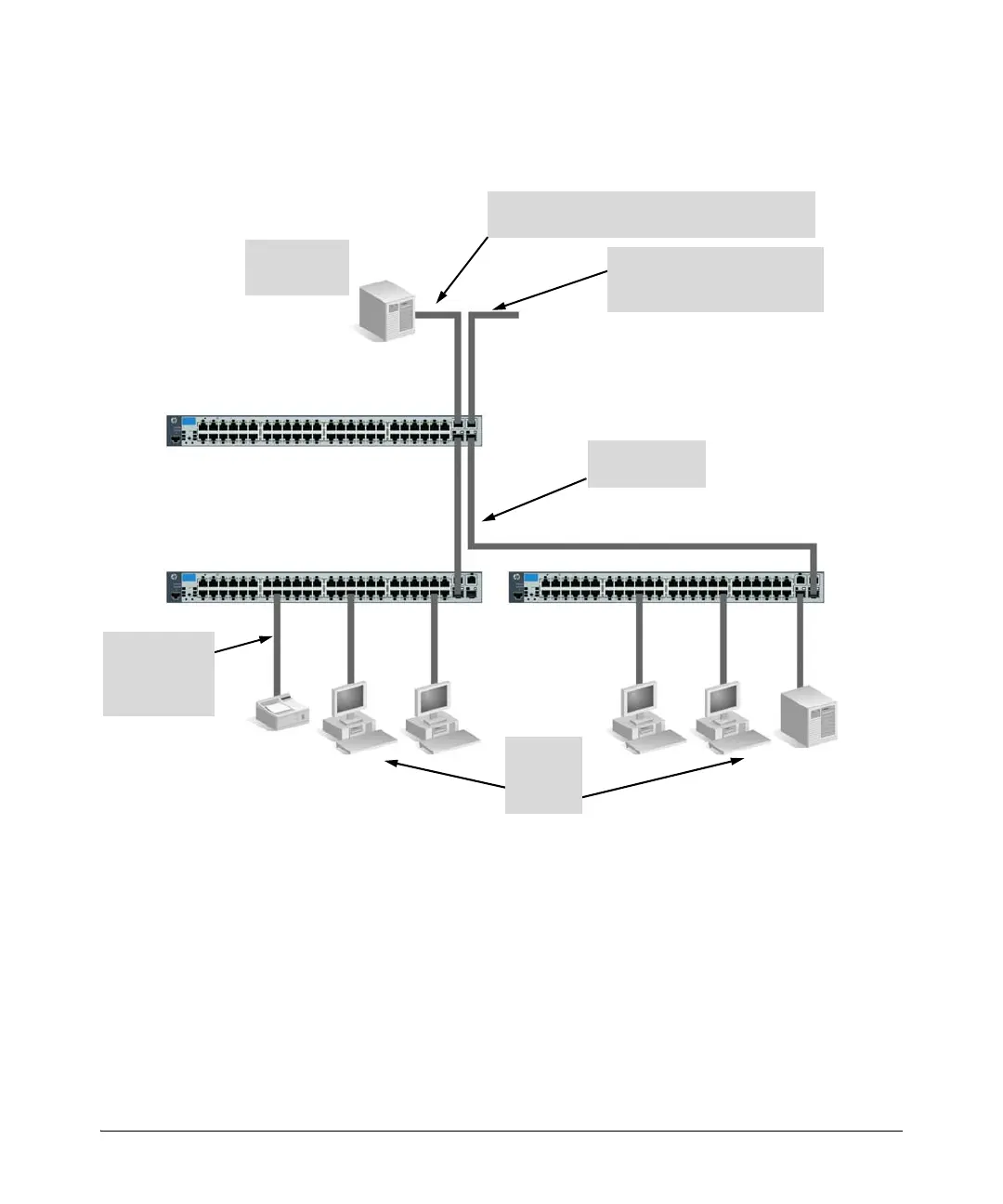

Figure 2-21. Segment network configuration
The E2620 Switches also work well as segment switches. That is, with their
high performance, they can be used for interconnecting network segments—
simply connect the network devices that form those segments to the E2620
Switches.
In the illustration above, two “Fast Ethernet” switches with PCs, printers, and
local servers attached, are both connected to a Switch E2620-48. The devices
attached to the two desktop switches can now communicate with each other
through the switch. They can also all communicate with the server that is
connected to a 1000Base-T port on the switch.
Switch E2620-48
Server with
Gigabit
Ethernet NIC
Category 5e twisted-pair straight-through or
crossover cable for 1000 Mbps connection to server
Gigabit
fiber-optic cable
Switch E2620-48
Switch E2620-48
PCs,
printers,
and local
servers
Twisted-pair
straight-through
cables to
end nodes
Category 5e twisted-pair straight-
through or crossover cable for 1000
Mbps connection to backbone

HP E2620 Specifications

General

Model	HP E2620
Jumbo Frame Support	Yes
Manageable	Yes
Ports	24 or 48 10/100/1000 ports
Uplink Ports	4 SFP ports
Layer	Layer 2
Management	Web, CLI, SNMP
PoE Support	Available on some models (PoE+)
MAC Address Table Size	16000 entries
Operating Temperature	0°C to 45°C
Switching Capacity	Up to 128 Gbps
Throughput	Up to 95.2 Mpps
Weight	3.7 kg
Operating Humidity	15% to 95% non-condensing
