HP E2620 User Manual

3-6
Configuring the Switch
Using the IP Address for Remote Switch Management

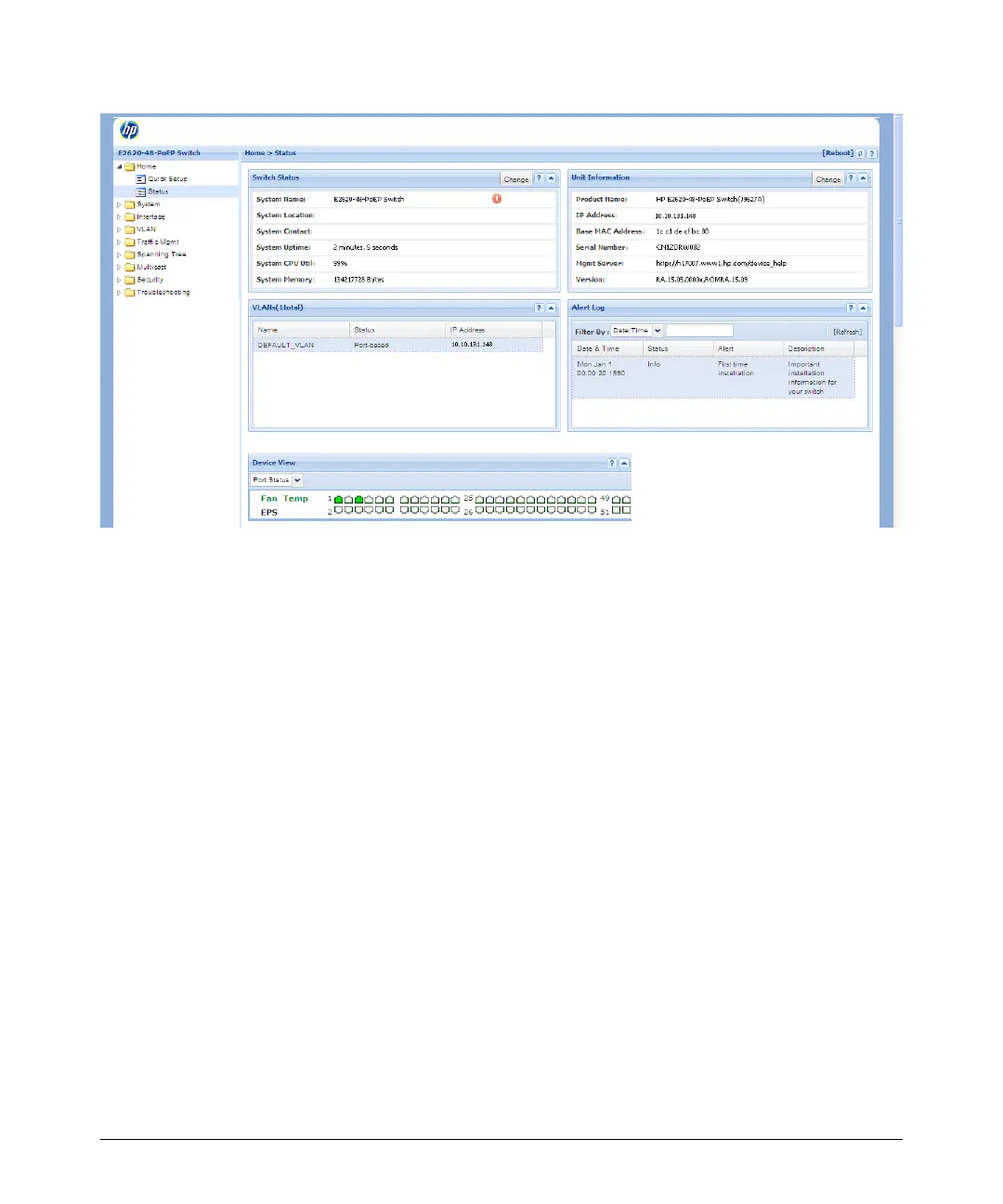

Figure 3-2. Example web browser session
For more information on using the web browser interface, please see the
Management and Configuration Guide, which is on the HP Web site at
www.hp.com/networking/support, (see page 1-14).
An extensive help system is also available for the web browser interface. To
access the help system though, the subnet on which the switch is installed
must have access to the internet.

HP E2620 Specifications

General

Model	HP E2620
Jumbo Frame Support	Yes
Manageable	Yes
Ports	24 or 48 10/100/1000 ports
Uplink Ports	4 SFP ports
Layer	Layer 2
Management	Web, CLI, SNMP
PoE Support	Available on some models (PoE+)
MAC Address Table Size	16000 entries
Operating Temperature	0°C to 45°C
Switching Capacity	Up to 128 Gbps
Throughput	Up to 95.2 Mpps
Weight	3.7 kg
Operating Humidity	15% to 95% non-condensing
