HP E27q G4

13
S3

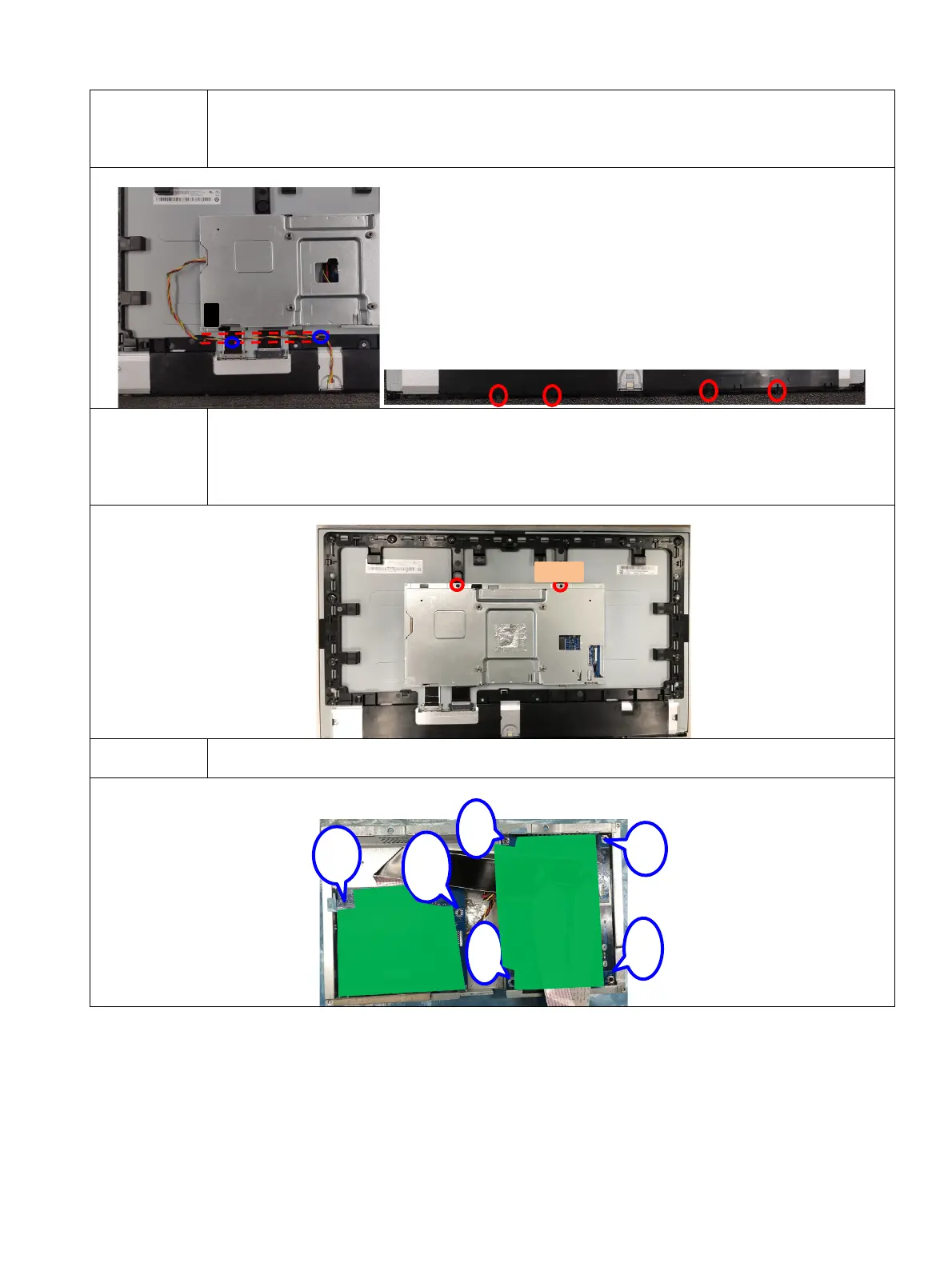

1) Tear off the acetate tape on the lamp wire as the picture 1.
2) Pull out the lamp wire.
3) Unlock 4 Trim screws as the picture 2.
4) Disassemble the trim in the Panel.
PICTURE 1 PICTURE 2
S4
1) Tear off conductive cloth on the LVDS FFC as the picture 1.
2) Pull out the LVDS FFC into Panel.
3) Disassemble the SHD.
4) Unlock 15 MF screws.
5) Disassemble the MF on the Panel.
PICTURE 1
S5
1) Remove the Mylar on the P/BD. Unlock 6 PCBA screws from the PCBA as the picture 1.
2) Unlock 2 hexagonal screws from the SHD
PICTURE 1
1
6
5
4
3
2
Main BD
Power BD
