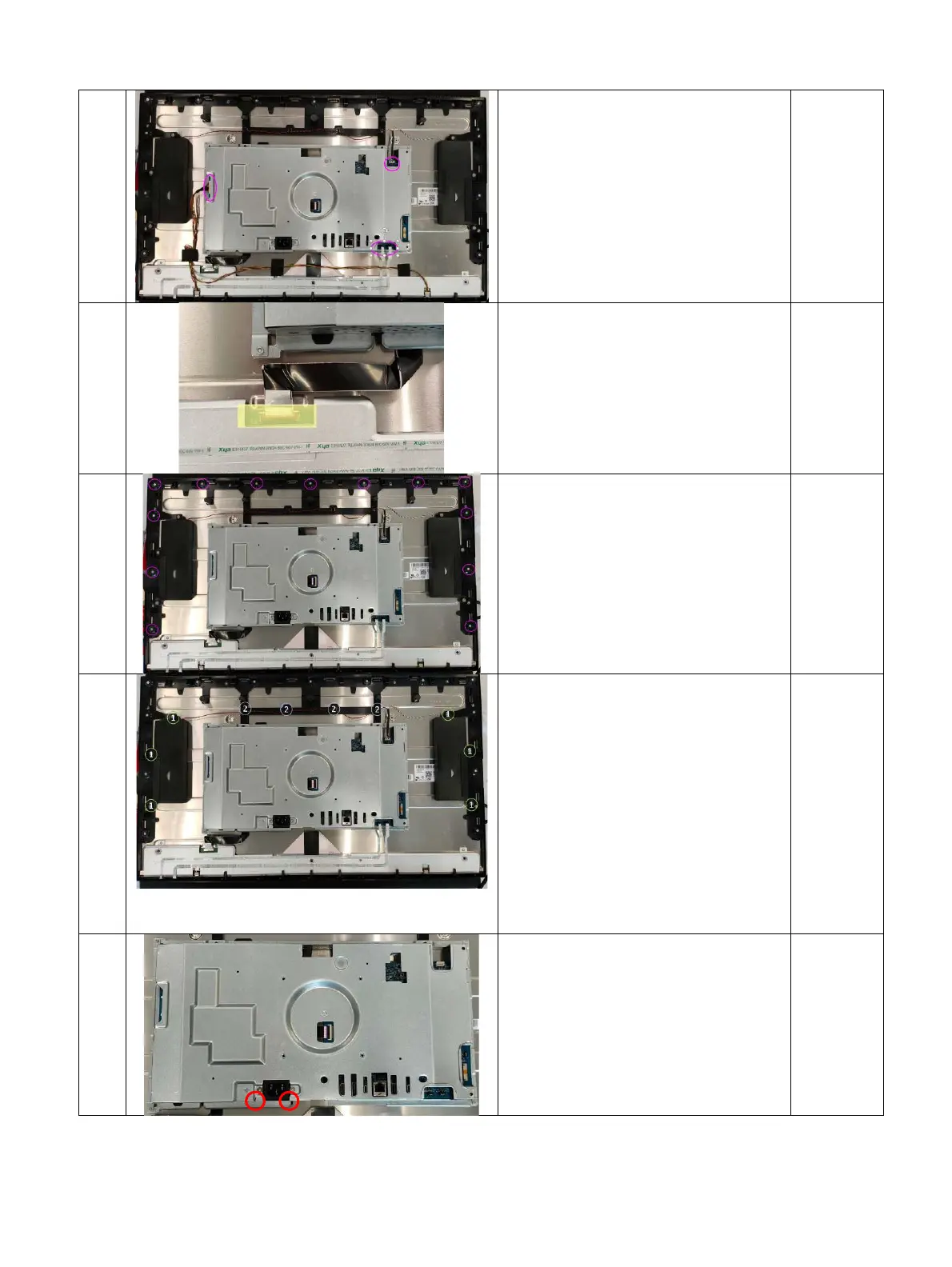

HP E32k G5 - Page 17

6 1. Disconnect PWR-BD wire
2. Disconnect SPK wire
3. Disconnect PWR Key-BD
FFC and ALS-BD FFC
4. Tear off adhesive tape on
panel light bar wire *3pc
7 1. Tear off yellow tape
2. Disconnect IF-BD EDP
3. Disassemble SHD from
MF
8 1. Disassemble M3 screw *
13pcs
2. Disassemble MF and
Panel
Screwd
river：
TORQUE
4±0.5
(KGF-
CM)
9 1. Disassemble M3 screw
* 6pcs
2. Unhook speaker wire
from MF
3. Disassemble SPK from MF
4. Disassemble panel wire
from panel
5. Disassemble panel from
MF
Screwd
river：
TORQUE
3.5±1.0
(KGF-
CM)
11 Disassemble M3 screw * 2pc
from SHD
Screwd
river：
TORQUE
5.0±1.0
(KGF-
CM)
