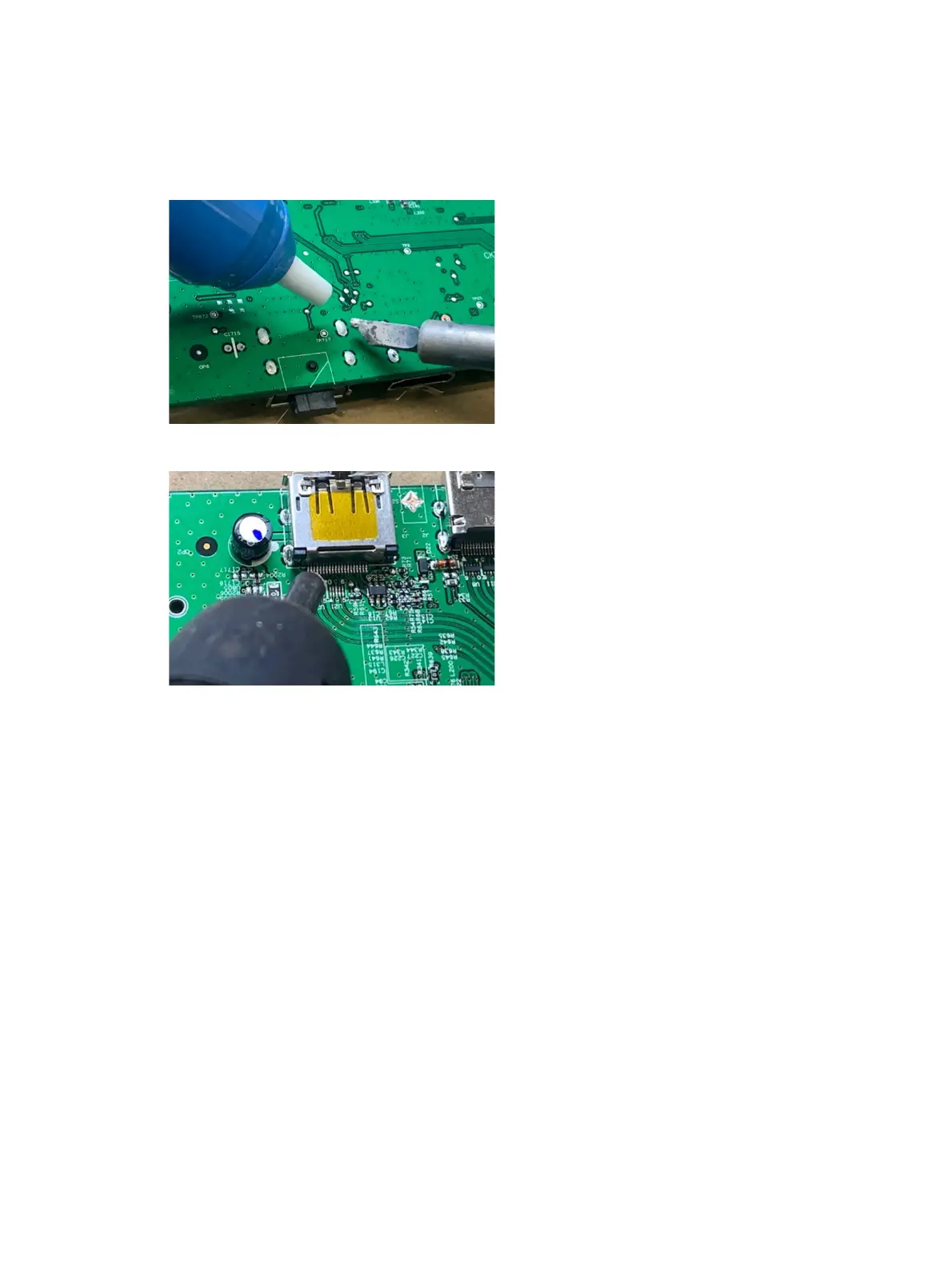

DP Connector repair – J301

1) Use a soldering iron and a de-soldering pump to remove as much solder

as possible from one of the pin.

2) Use a hot air gun to melt the solder on the pins

3) Lift connector from the PCB

4) Place new component on the location, and must check it can match PCB

footprint

5) Soldering the new component by solder iron

Questions and Answers:

Need help?

Do you have a question about the HP E32k G5 and is the answer not in the manual?

General

Display Size	31.5 inches
Panel Type	IPS
Refresh Rate	60 Hz
Aspect Ratio	16:9
Contrast Ratio	1000:1
Color Gamut	99% sRGB
Tilt	-5° to +20°
Pivot	Yes
VESA Mount	100 x 100 mm
Speakers	No
Response Time	5 ms
Viewing Angle	178° horizontal / 178° vertical
Connectivity	HDMI, DisplayPort, USB-C, USB Hub
Resolution	3840 x 2160 (4K UHD)
Swivel	±45°
