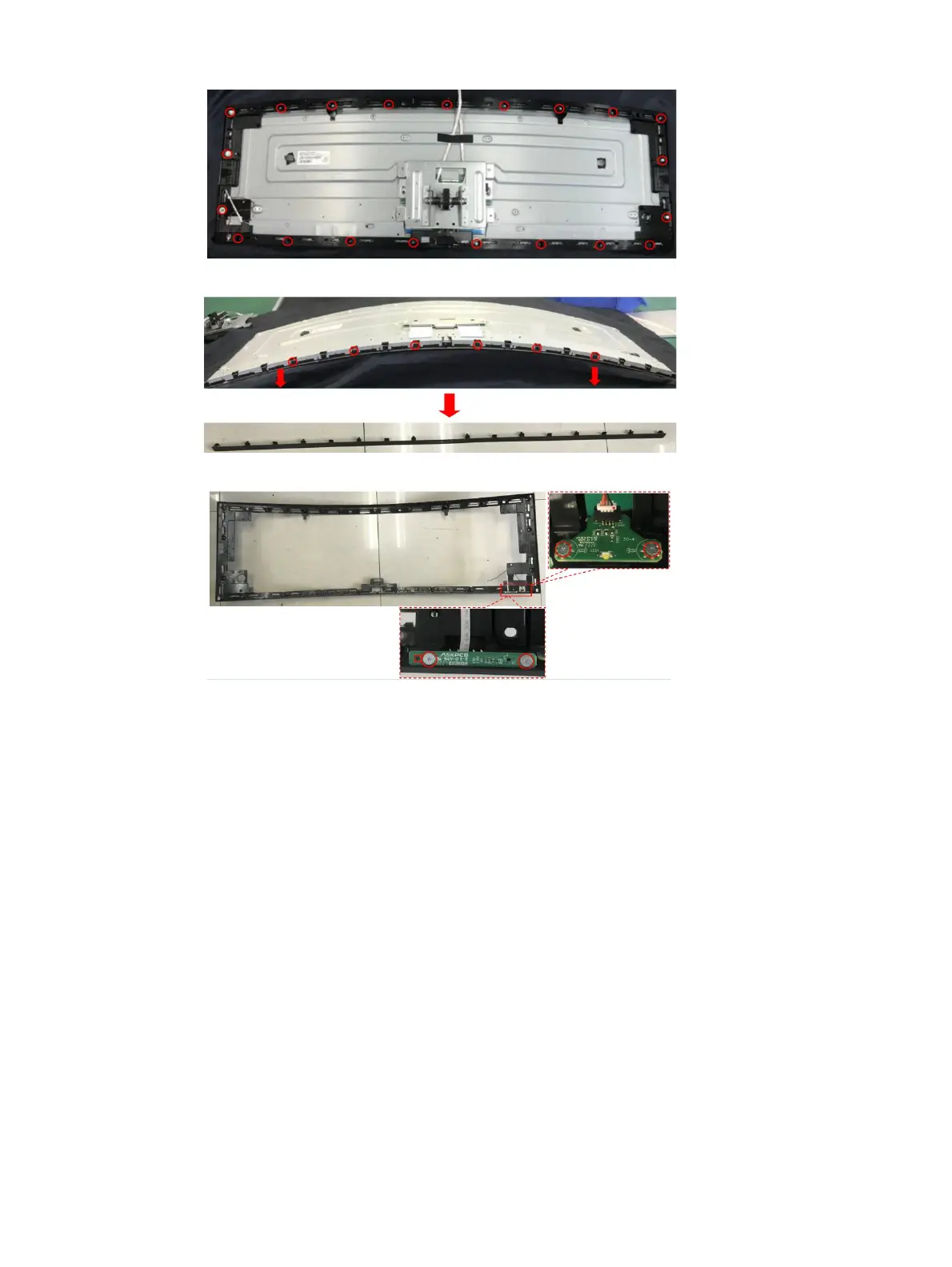

17) Tear off tapes and disconnect the pins. Disassemble 6 screws to remove the BEZEL_BTM.
18) Disassemble 4 screws to remove the key board and LED board ( if required)
Power board
The power board part number is ADPCM2030AA7
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 13.
Remove the power board:
1) The HP E45C G5 power board connector position is as follows:
To Next Page
