Solid-state drive
Description Spare part number
1 TB, PCIe, TLC L31368-001
512 GB, PCIe, self-encrypting drive (SED), Opal 2, TLC L31366-001
512 GB, PCIe, TLC L31372-001
256 GB, PCIe, self-encrypting drive (SED), Opal 2, TLC L31369-001
256 GB, PCIe, TLC L31370-001
256 GB, PCIe L31371-001
128 GB, SATA-3, TLC L31367-001
Before removing the solid-state drive, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the following components:
a. Display panel (see Display panel on page 33)
b. Disconnect the battery cable (see Battery on page 36)

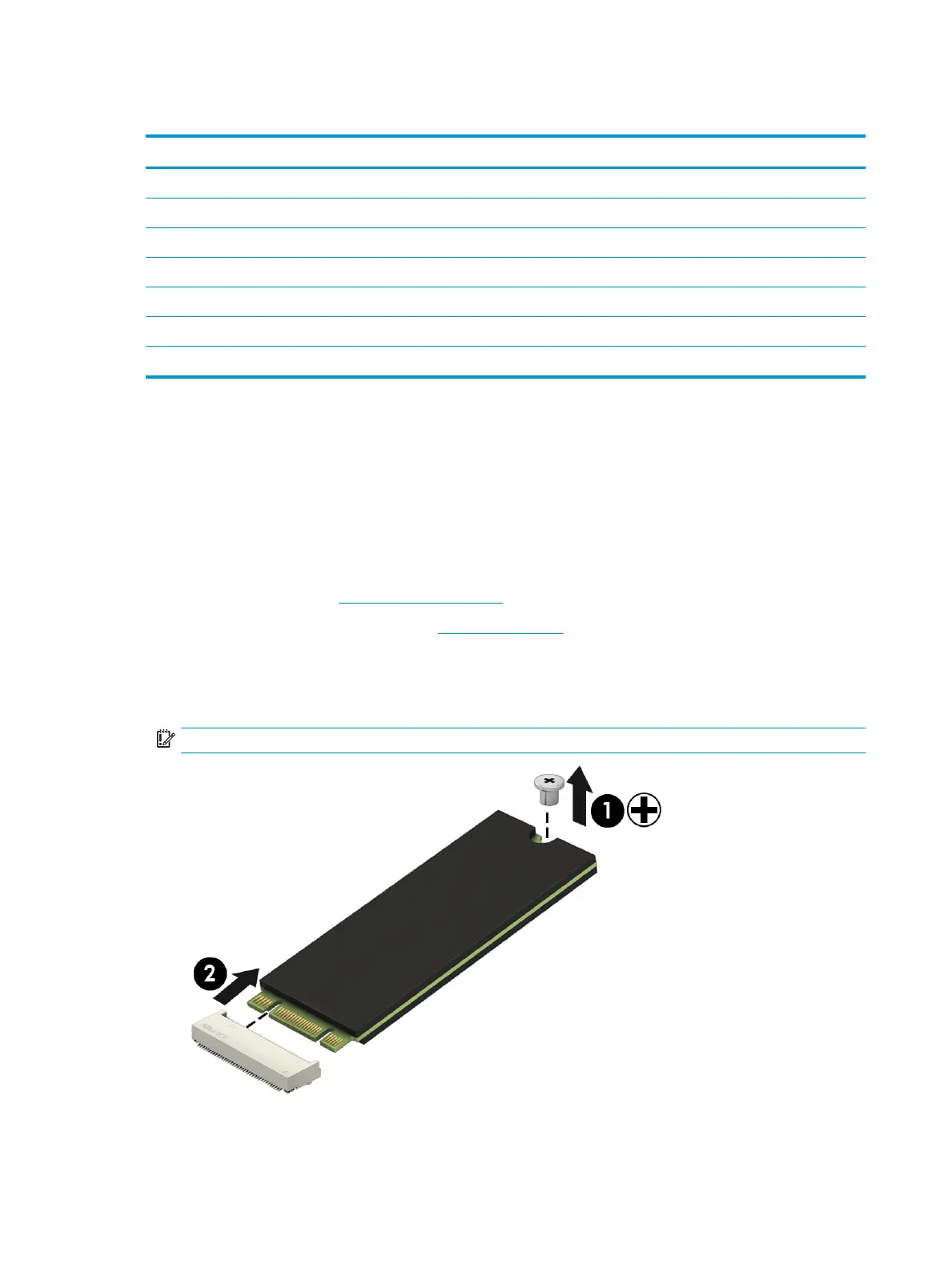

Remove the solid-state drive:
▲ Using a PH Type #0 Phillips screwdriver, remove the Phillips M1.6x1.6 screw (1), and then remove the
solid-state drive (2).
IMPORTANT: Be sure to use the correct size screwdriver to avoid stripping the screw.
Reverse this procedure to replace the solid-state drive.
38 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
