POGO connector
Description Spare part number
POGO connector and cable L31359-001
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the following components:
a. Display panel (see Display panel on page 33)
b. Battery (see Battery on page 36)

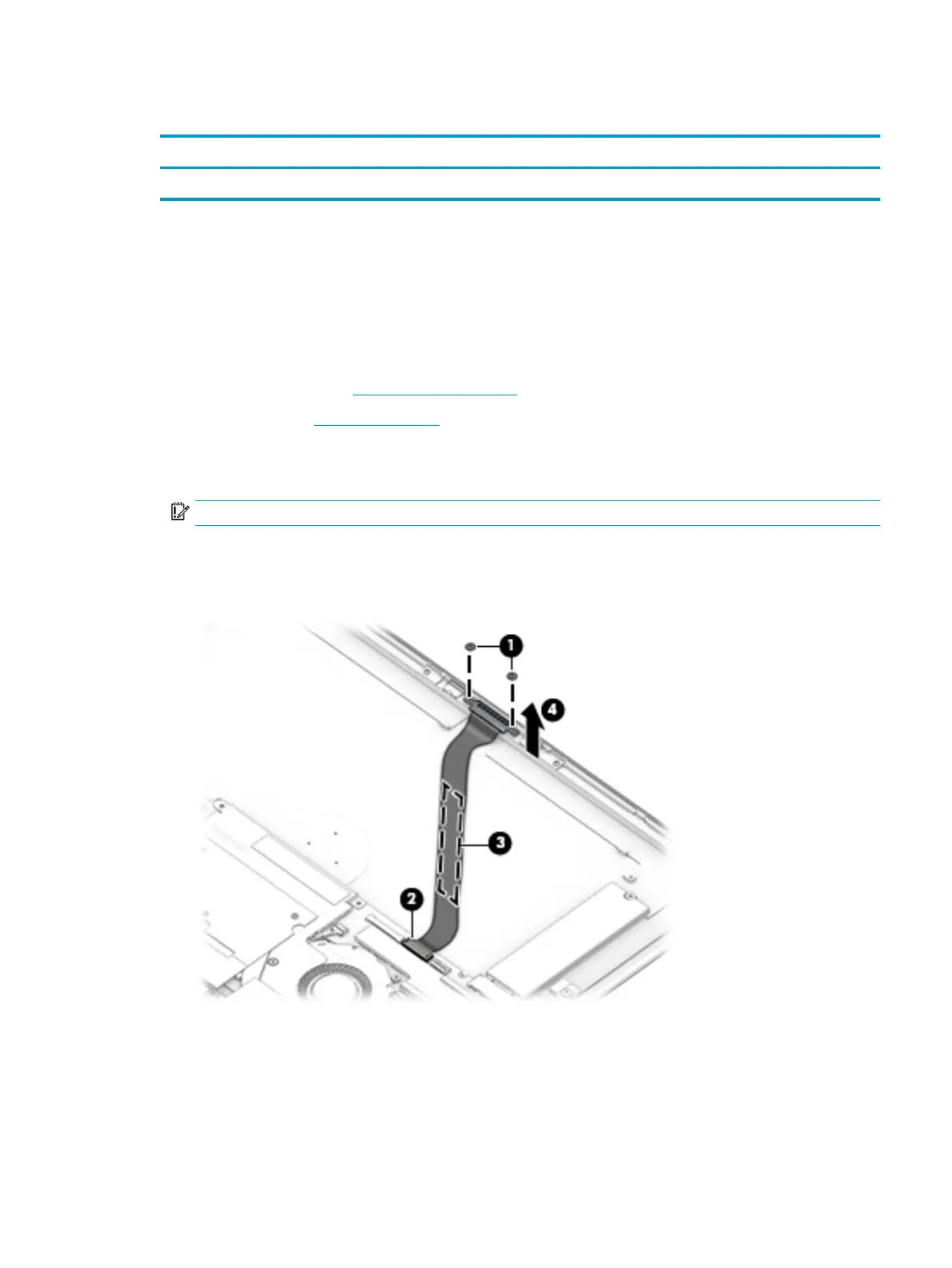

Remove the POGO connector:
1. Using a PH Type #0 Phillips screwdriver, remove the two Phillips M1.6×1.6 screws (1).
IMPORTANT: Be sure to use the correct size screwdriver to avoid stripping the screw.
2. Disconnect the POGO cable from the ZIF connector on the system board (2).
3. Peel the cable up to disengage the adhesive that secures it to the computer (3), and then remove the
cable/connector from the computer (4).
Reverse this procedure to replace the POGO connector.
Component replacement procedures 43
