HP Elite x2 1013 G3 User Manual

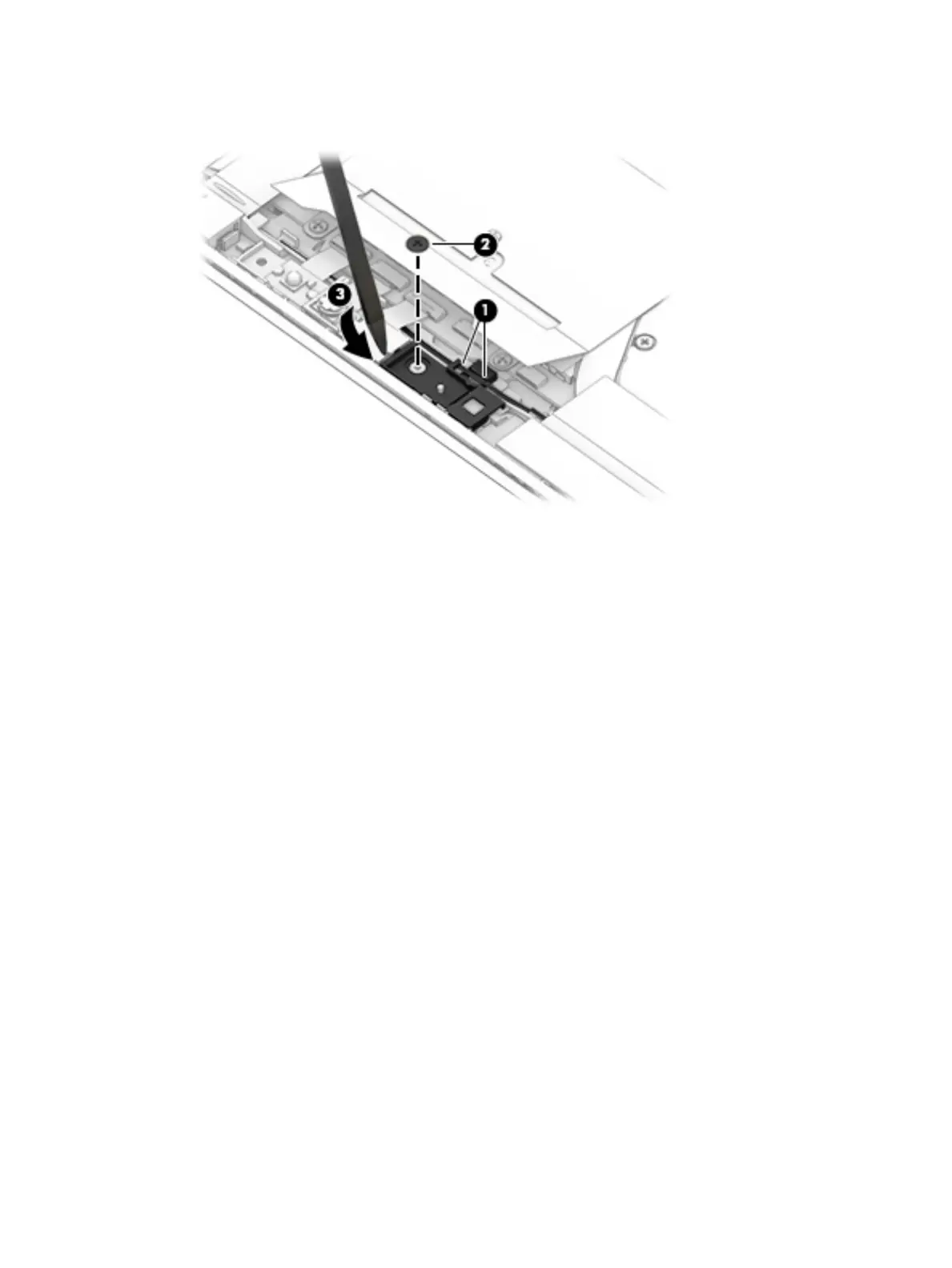

2. To remove the plastic bezel, remove speaker cable from the clip on the bezel (1), remove the Phillips
M1.6×1.6 screw (2), and then use a tool to remove the bezel from the computer (3).
Reverse this procedures to replace the microphone board.
Component replacement procedures 49

HP Elite x2 1013 G3 Specifications

General

Display Size	13 inches
Resolution	3000 x 2000
Operating System	Windows 10 Pro
Battery Life	Up to 10 hours
Graphics	Intel UHD Graphics 620
Front Camera	5 MP
Rear Camera	8 MP
Camera	Front: 5 MP, Rear: 8 MP
Processor	Intel Core i5 or i7
RAM	8GB or 16GB
Storage	256 GB / 512 GB / 1 TB SSD
Ports	2 x USB-C, 1 x headphone/microphone combo
Wireless	Bluetooth 4.2
Security	Fingerprint reader, IR camera
