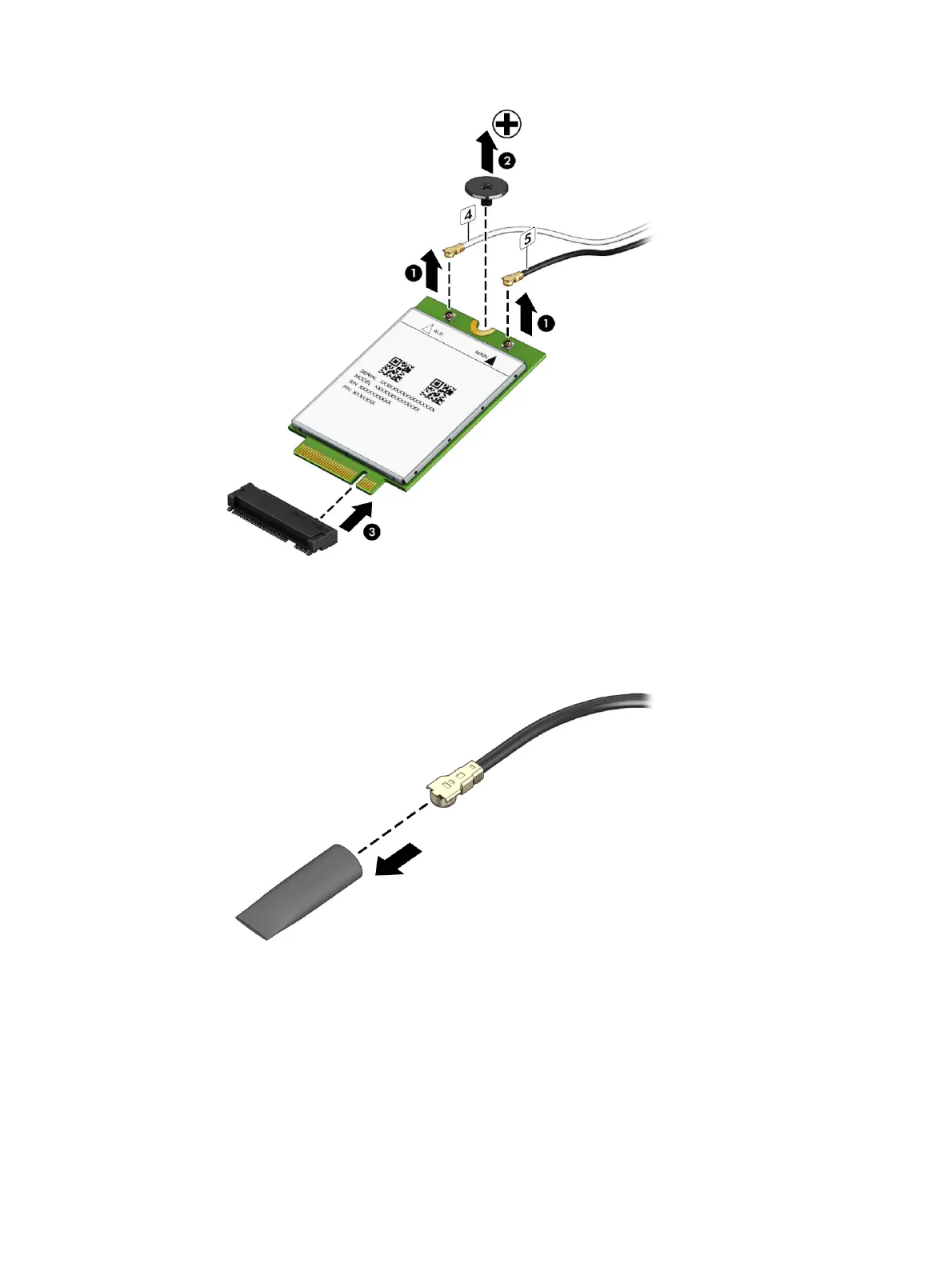

5. If the WWAN antenna is not connected to the terminal on the WWAN module, a protective sleeve must be
installed on the antenna connector, as shown in the following illustration.
Reverse this procedure to install the WWAN module.
Solid-state drive
To remove the solid-state drive, use these procedures and illustrations. The primary solid-state drive is
installed in the main solid-state drive connector. The secondary solid-state drive is installed in the same
connector as the WWAN module—you can use one or the other, but not both.
48
Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
