Before removing the speakers, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 41).
2. Remove the bottom cover (see Bottom cover on page 41).
3. Remove the battery (see Battery on page 51).
4. Remove the system board (see System board on page 60).
NOTE: Be sure that the RTC battery remains connected to the system board.
Remove the speakers:

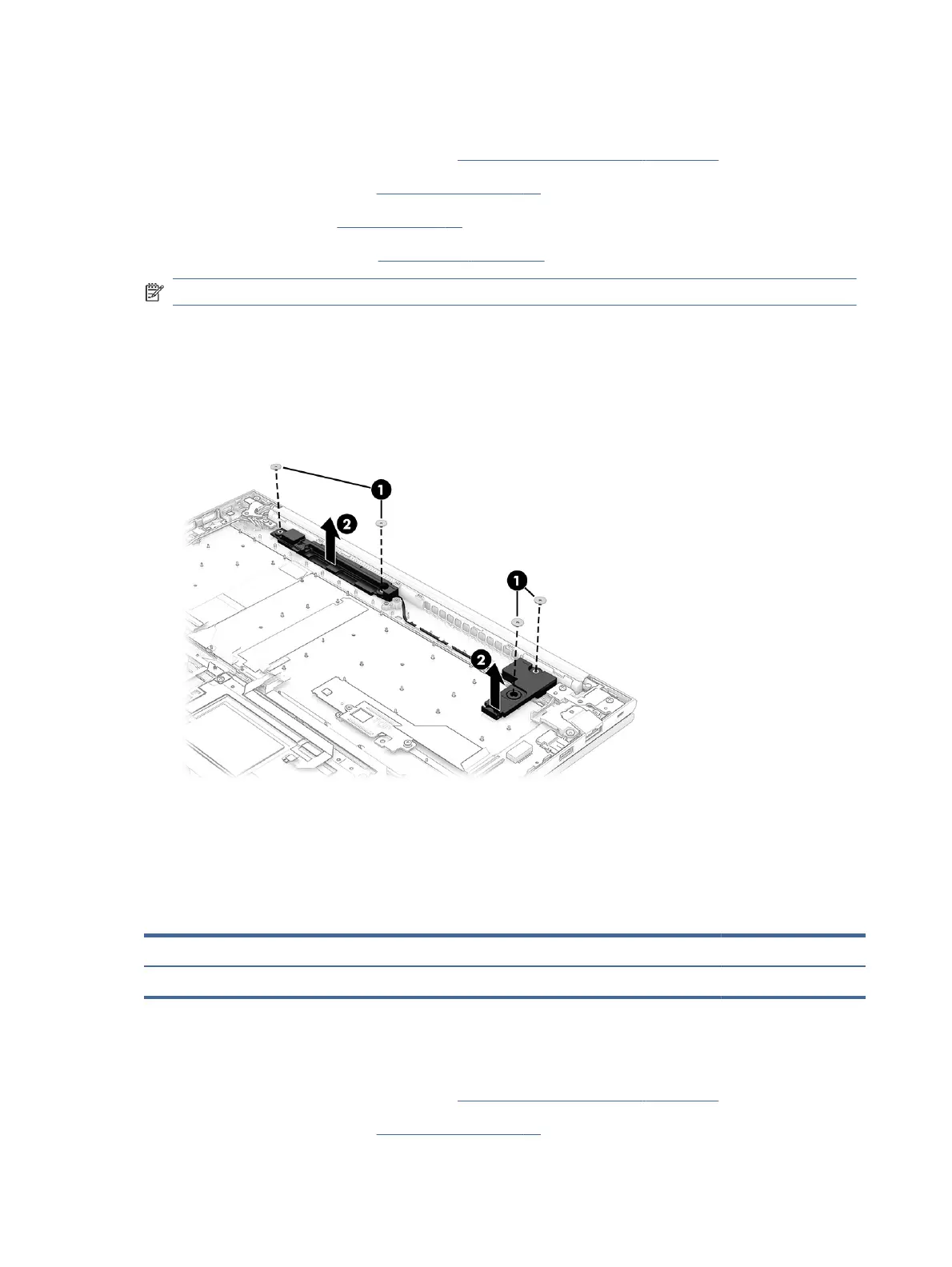

1. Remove the four Phillips M2.0 × 2.0 screws (1) that secure the speakers to the computer.
2. Lift the speakers straight up to remove them (2).
Reverse this procedure to install the speakers.
Power connector cable
To remove the power connector cable, use this procedure and illustration.
Table 6-12
Power connector cable description and part number
Description Spare part number
Power connector cable M21725-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 41).
2. Remove the bottom cover (see Bottom cover on page 41).
64
Chapter 6 Removal and replacement procedures for authorized service provider parts
