Before removing the NFC module, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 41).
2. Remove the bottom cover (see Bottom cover on page 41).
3. Remove the battery (see Battery on page 51).

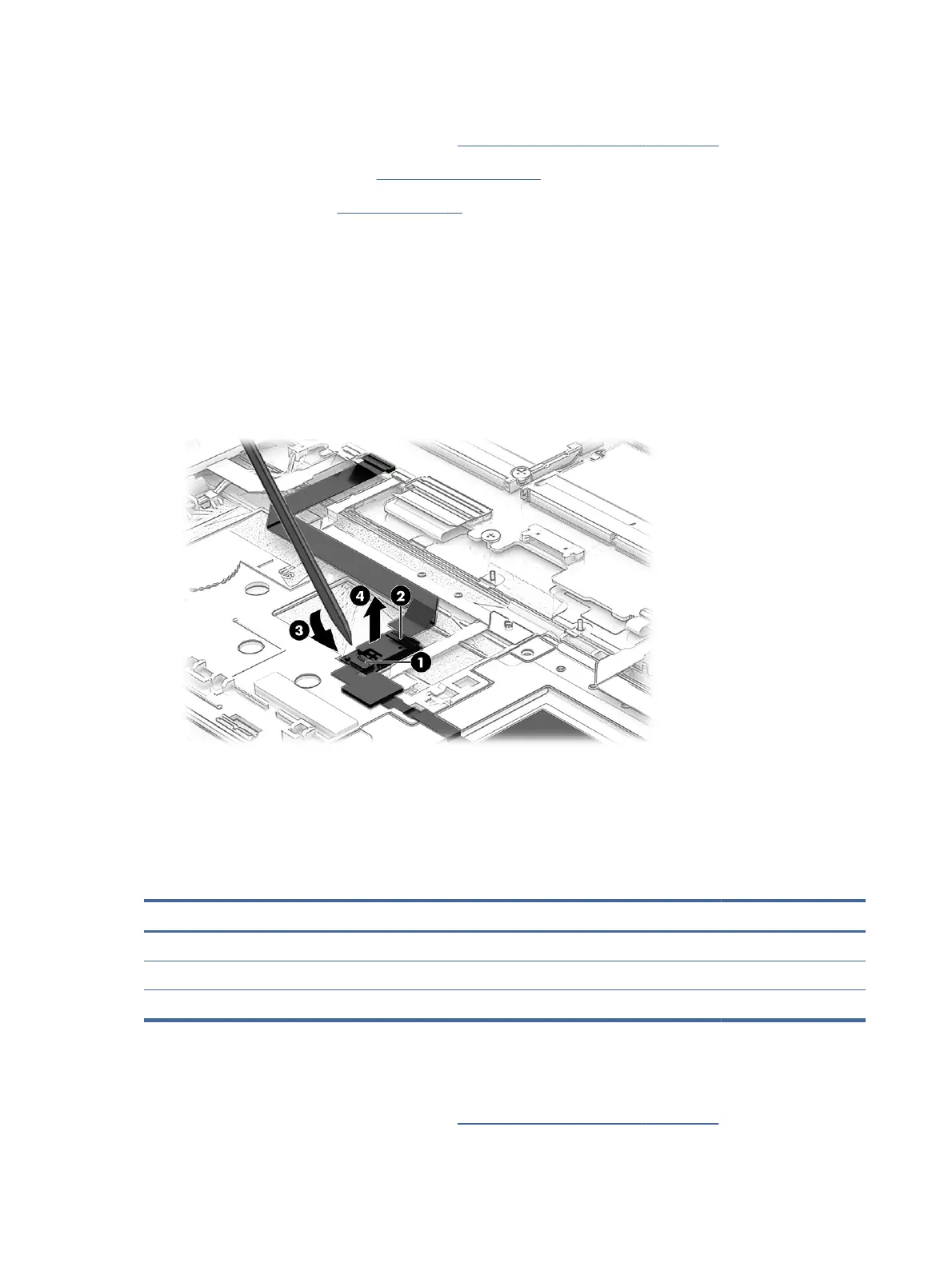

Remove the NFC module:
1. Remove any protective tape covering the module and reuse during replacement.
2. Disconnect the antenna cable from the ZIF connector on the NFC module (1).
3. Disconnect the system board cable from the ZIF connector on the NFC module (2).
4. Use a tool to release the module from the computer (3). The NFC module is secured with adhesive.
5. Remove the NFC module from the computer (4).
Reverse this procedure to install the NFC module.
Smart card reader
To remove the smart card reader from the top cover, use this procedure and illustration.
Table 6-6
Smart card reader description and part number
Description Spare part number
Smart card reader M21398-001
Smart card reader cable N27591-001
Smart card reader bracket (available in the Bracket Kit) N21997-001
Before removing the smart card reader, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 41).
56
Chapter 6 Removal and replacement procedures for authorized service provider parts
