Secondary M.2 2230 solid-state drives are installed in the
3. The secondary solid-state drive is installed in the same connector as the WWAN module. You can use
one or the other, but not both. Remove the Phillips M2.0 × 2.5 screw (1) that secures the drive to the
computer.
4. Pull the drive away from the socket to remove it (2).

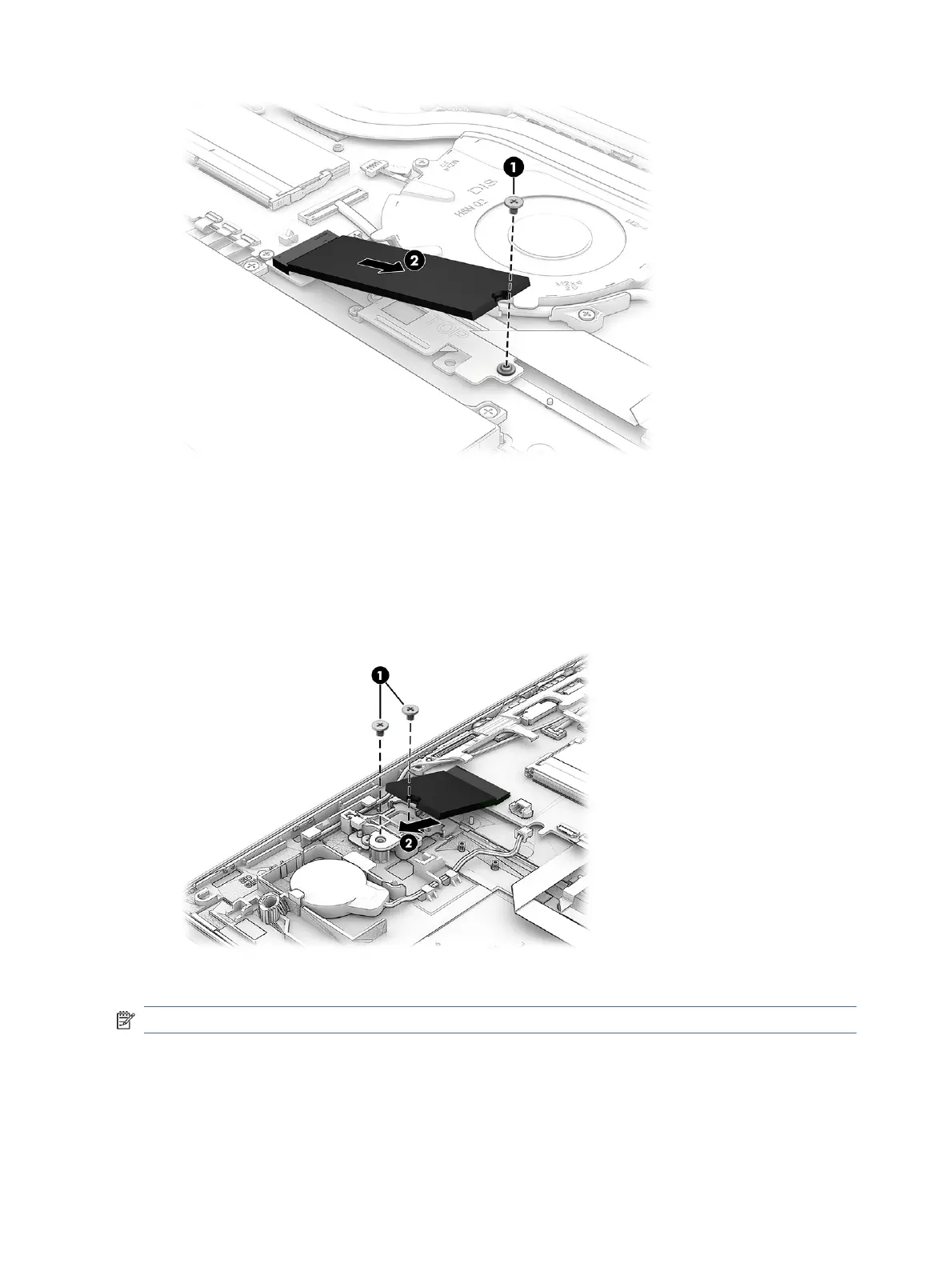

Secondary M.2 2230 solid-state drive
To install the solid-state drive, reverse the removal procedures.
NOTE: Solid-state drives are designed with a notch to prevent incorrect insertion.
