Removal and replacement procedures
Maintenance and Service Guide 4–23

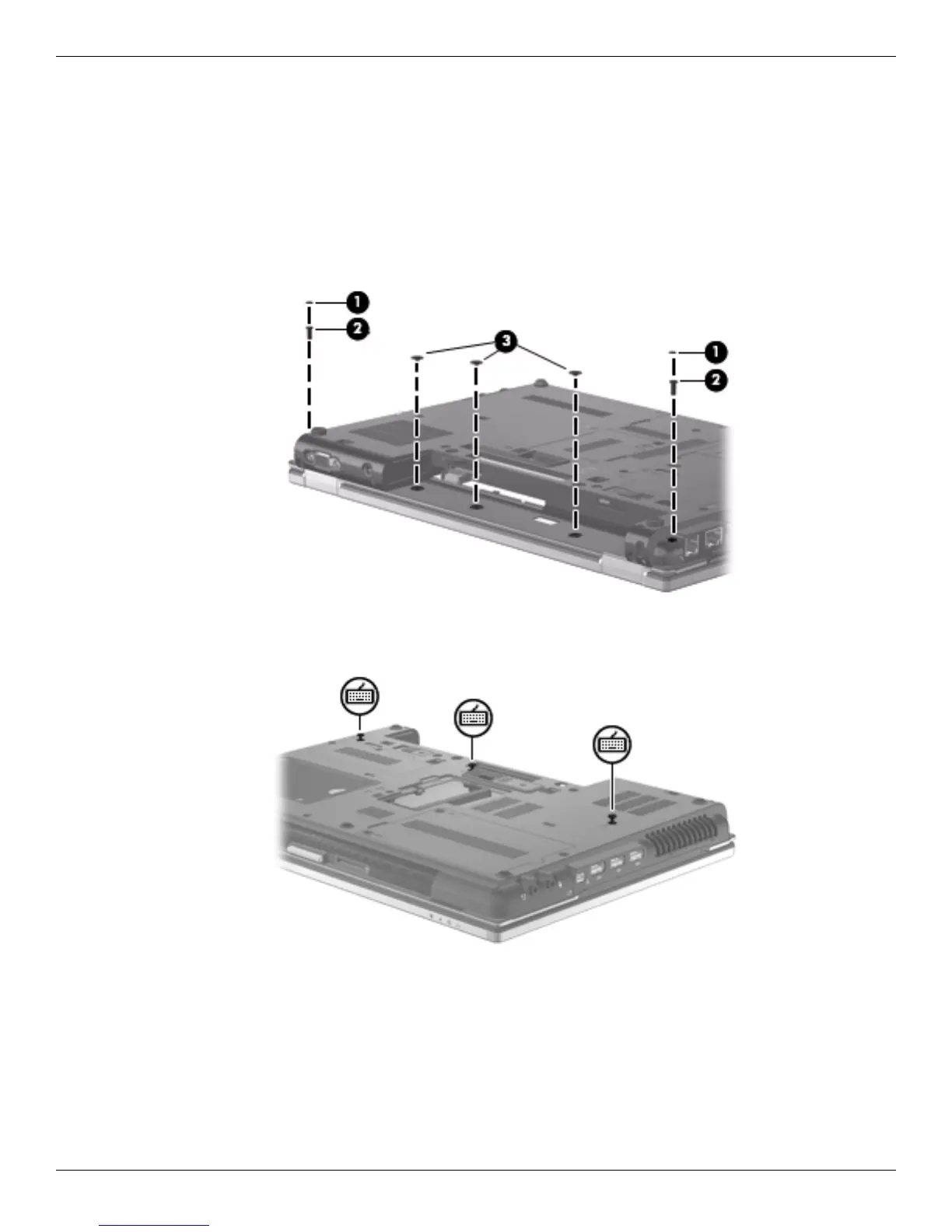

Remove the keyboard and switch cover:
1. Position the computer with the front toward you.
2. Remove the following:
❏ Two rubber screw covers 1 and 2 Torx T8 M2.5×6.0 screws 2 that secure the switch cover to the computer
❏ Three Phillips PM2.0×2.0 broadhead screws 3 that secure the switch cover to the computer in the battery
bay
✎
Use the Phillips P0 screwdriver to remove the PM2.0×2.0 broadhead screws.
❏ Three PM2.5×10.0 captive screws that secure the keyboard to the computer
3. Turn the computer right-side up, with the front toward you.
4. Open the computer as far as possible.
