4–24 Maintenance and Service Guide
Removal and replacement procedures

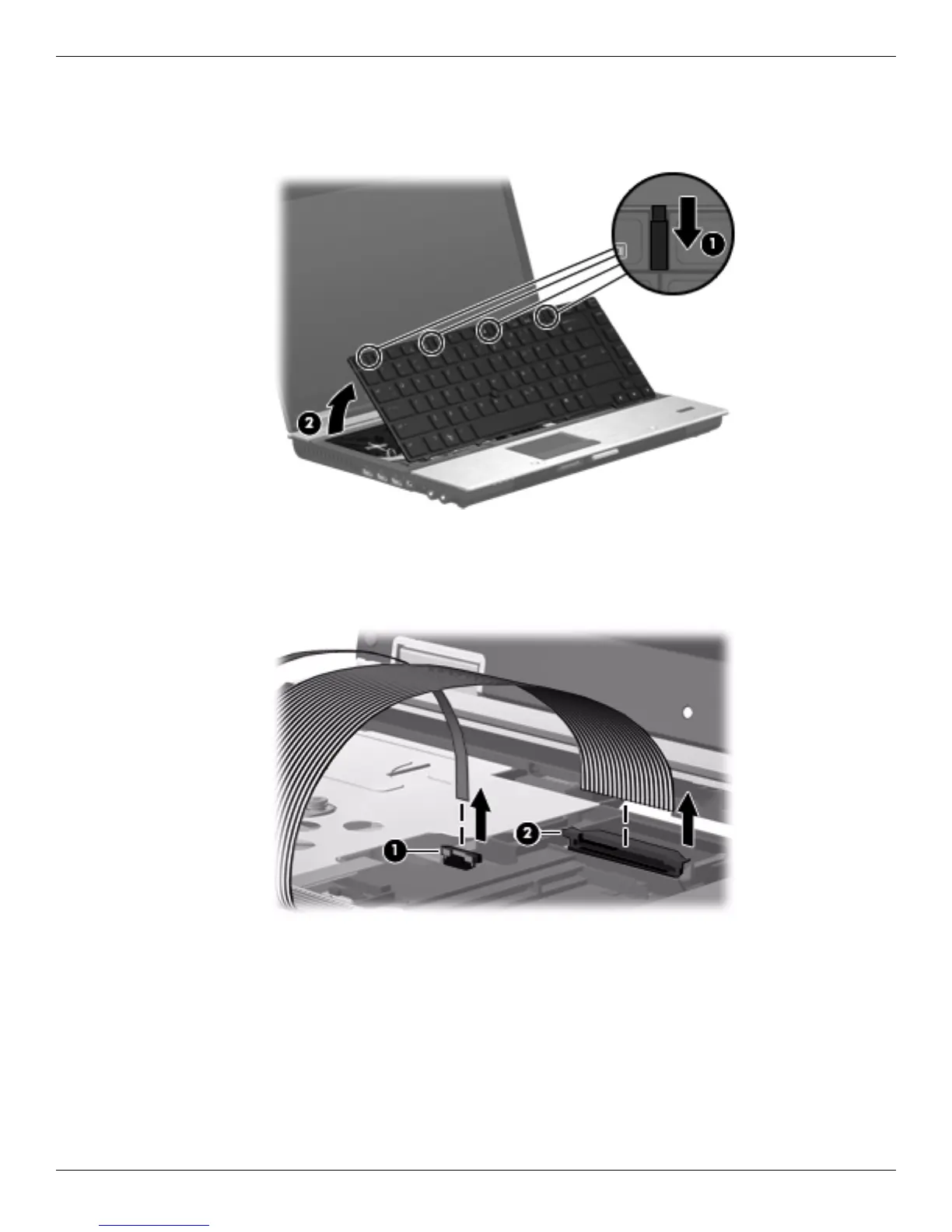

5. Release the 4 keyboard latches 1.
6. Lift the rear edge 2 of the keyboard until it rests at an angle, and then turn the keyboard over until it rests on
the front of the top cover.
7. Release the zero insertion force (ZIF) connectors to which the pointing stick cable 1 and the keyboard cable 2
is attached, and then disconnect the cables from the system board.
8. Remove the keyboard.
