Removal and replacement procedures
Maintenance and Service Guide 4–25

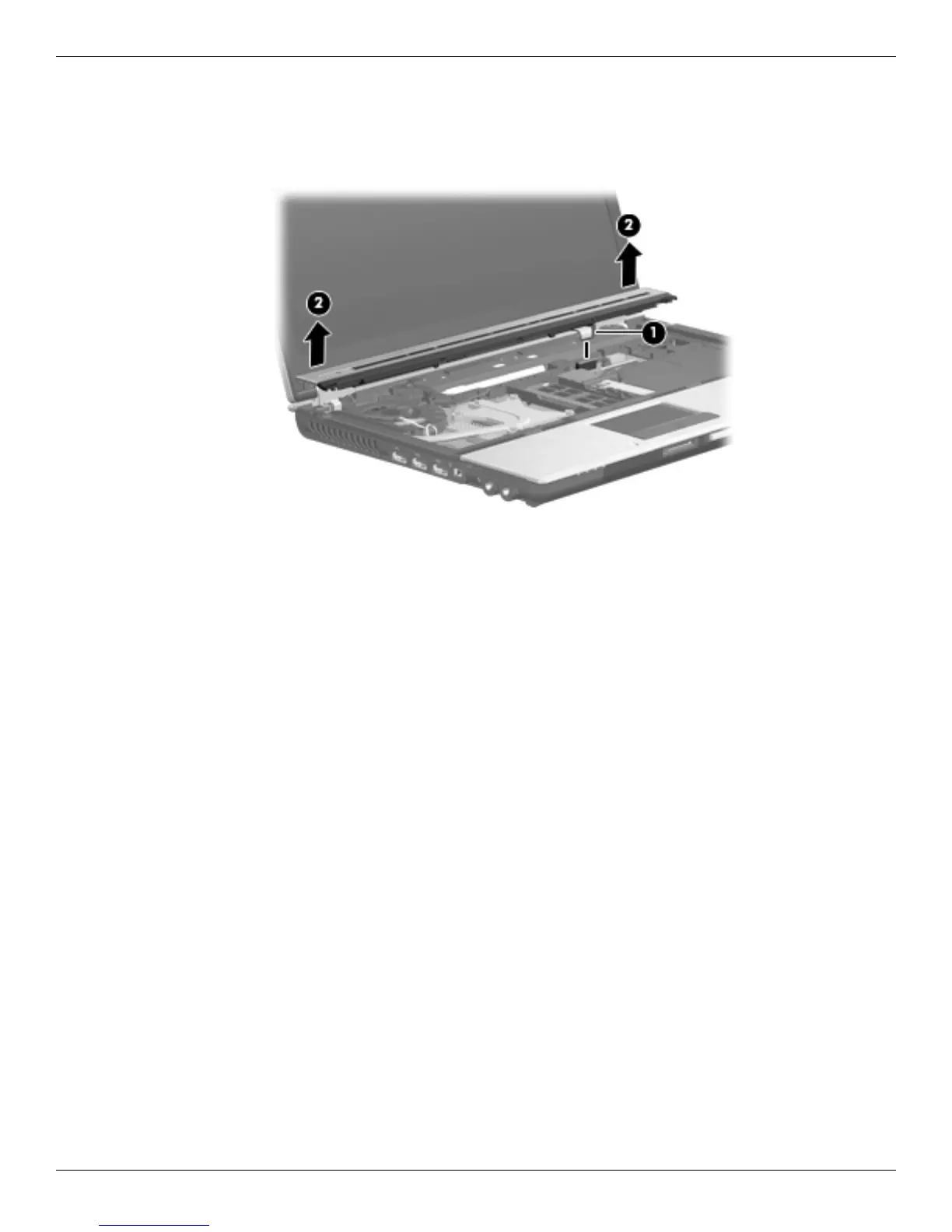

9. Release the ZIF connector to which the LED board cable 1 is attached, and then disconnect the LED board
cable from the system board.
10. Lift the back edge of the switch cover 2 and release it from the computer.
11. Remove the switch cover.
Reverse this procedure to install the keyboard and switch cover.
