6. If you need to remove the display bezel, webcam/microphone module, or raw display panel, see the
related procedures in Display assembly components (panel, bezel, webcam, microphone) on page 27.
7. If it is necessary to replace the display hinges:
Display hinges are available in the Display Hinge Kit, spare part number 757987-001.

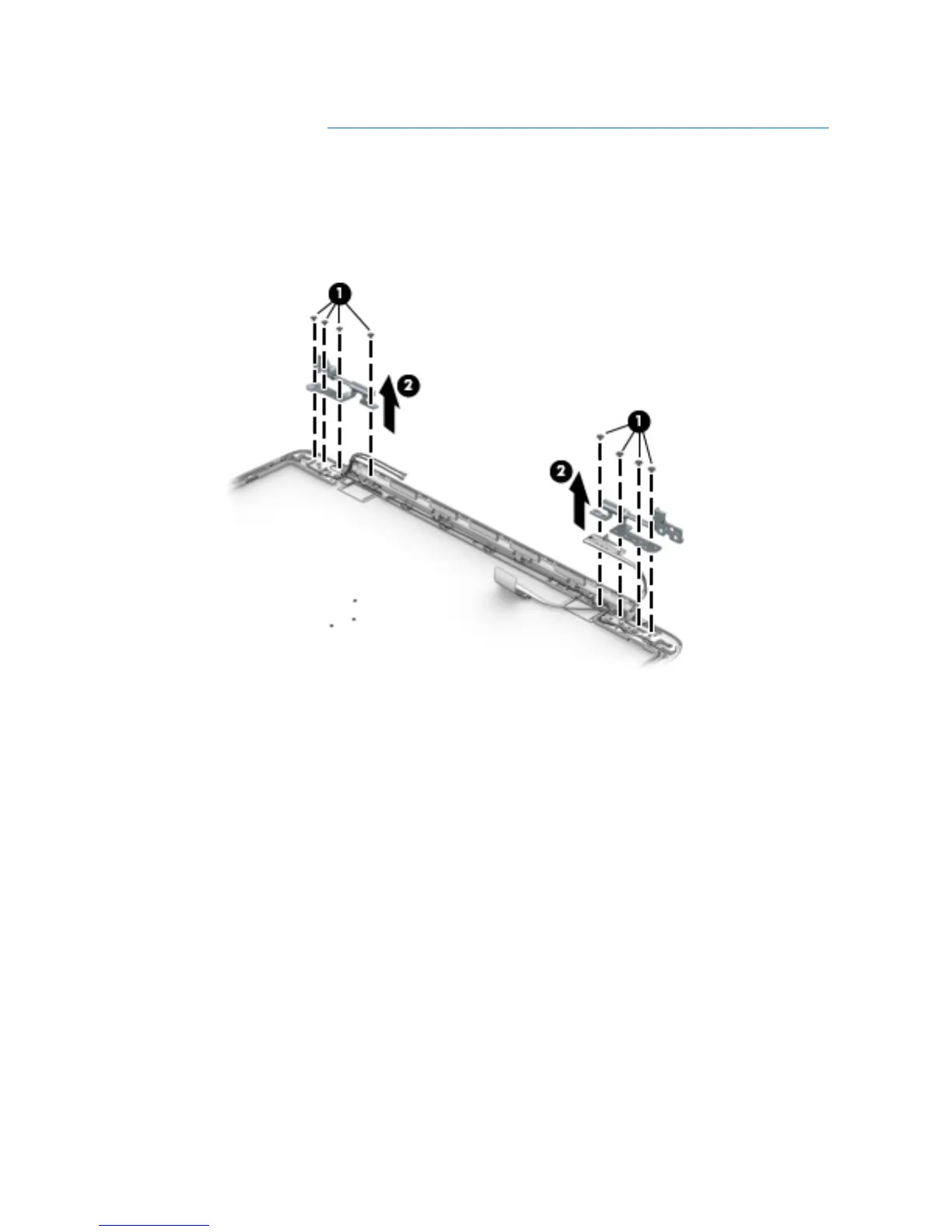

a. Remove the four broadhead Phillips PM2.5×3.0 screws (1) that secure each display hinge to the
display enclosure.
b. Lift the display hinges o the display enclosure (2).
Reverse this procedure to reassemble and install the display assembly.
34 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
