Display assembly
This section describes removing components that require you to completely remove the display panel. For
more information about removing display components that do not require that you remove the assembly
from the computer, see Display assembly components (panel, bezel, webcam, microphone) on page 27.
NOTE: The display assembly is spared at the subcomponent level only.
Before removing the display assembly, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Bottom cover (see Bottom cover on page 31)
5. Remove the battery (see Battery on page 36), and then remove the following components:
Remove the display assembly:

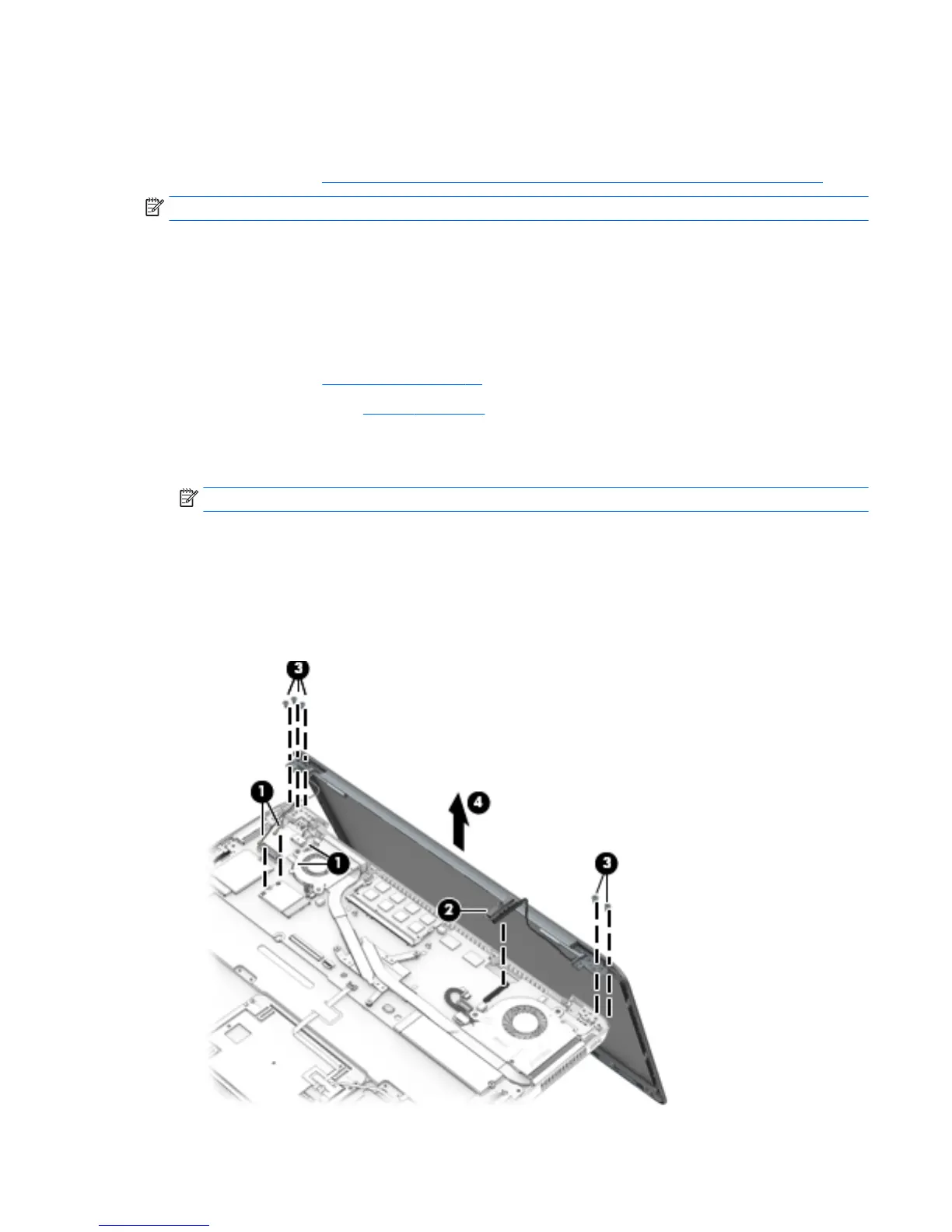

1. Open the computer and position it with the base enclosure on a table and the display hanging down.
NOTE: Be sure to support the display when removing the screws.
2. Disconnect the WWAN antennas cables from the WWAN module and remove the cables from the routing
path (1) from the system board.
3. Disconnect the display panel cable (2) from the system board.
4. Remove the ve Phillips PM2.5×4.0 screws (3) that secure the display assembly to the computer.
5. Remove the computer from the display assembly (4).
Component replacement procedures 33
