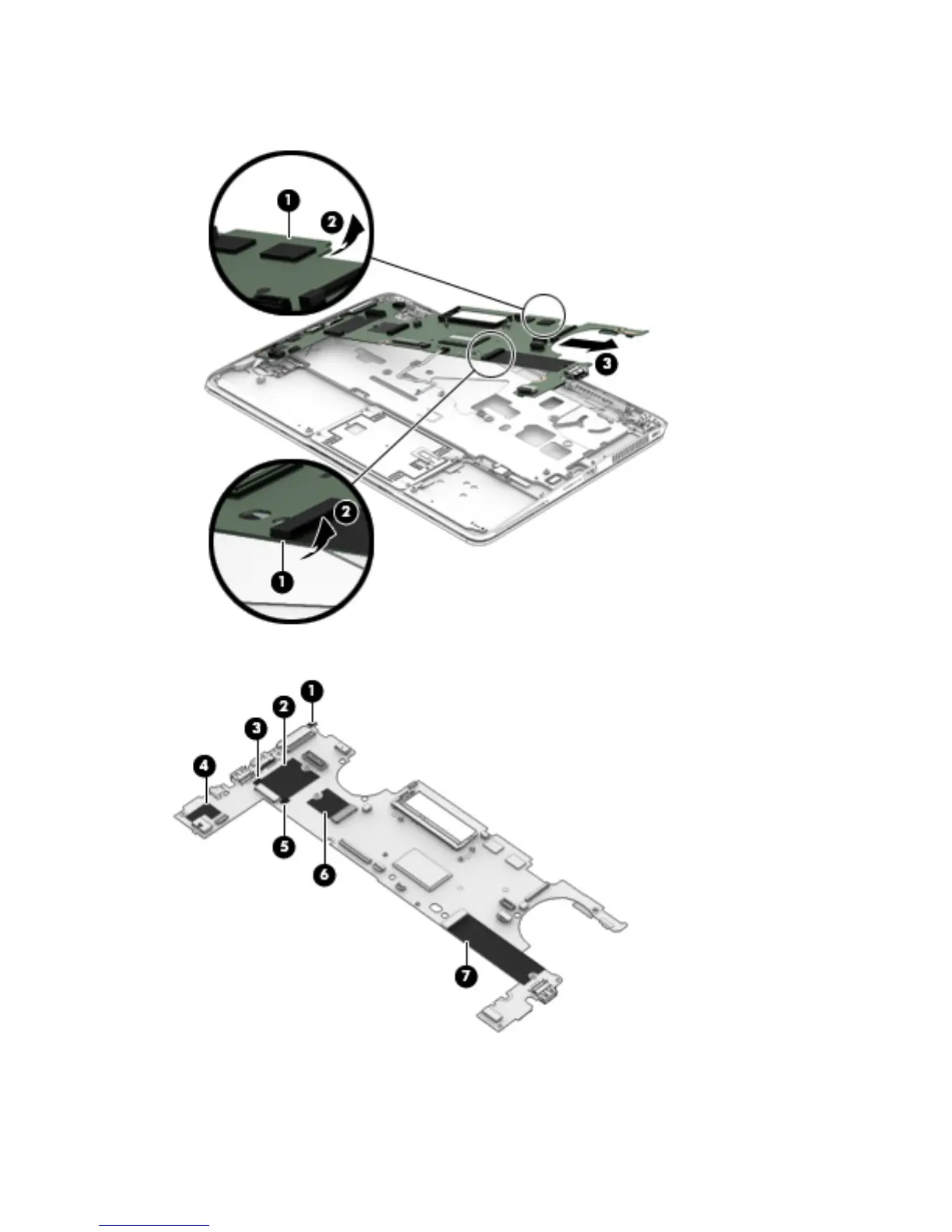

5. Pull the system board away from and out of the computer (3), making sure the connectors on the side of
the board are clear of the computer.
Use the following image to determine all Mylar locations on the system board.
Reverse this procedure to install the system board.
Component replacement procedures 59
