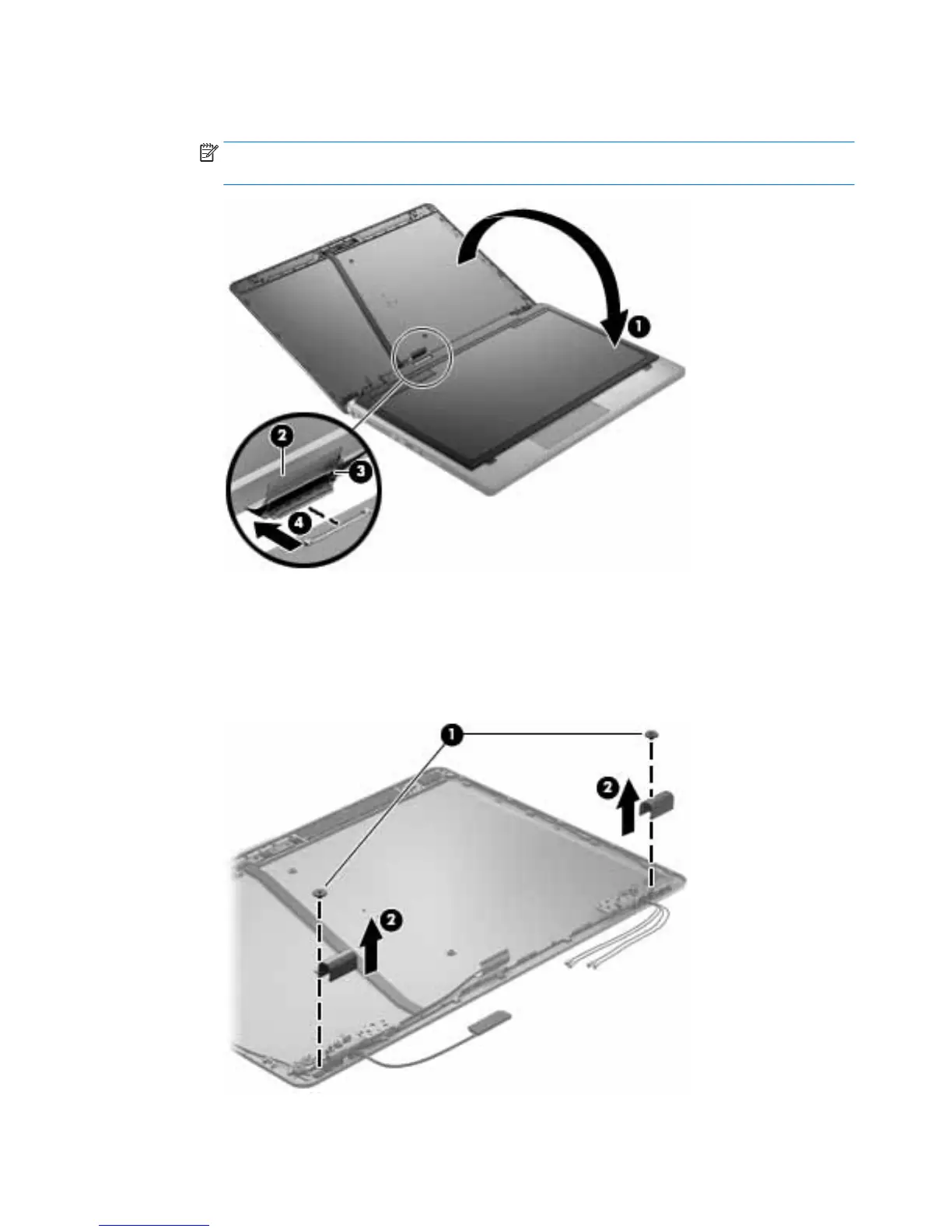

c. Lift the tape that secure the display cable connector on the panel (2), and then disconnect the
cable (3) from the connector (4).
NOTE: For this procedure the display will not be connected to the computer as shown in the
following image.
8. If it is necessary to replace the display hinges:
Display hinge covers and hinges are available in the Display Hinge Kit, spare part number 702857-001.
a. Remove the Phillips broadhead PM2.0×2.5 screw (1) that secures each hinge cover to the
display enclosure.
b. Remove the display hinge covers (2) from atop the hinges.
70 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
