NOTE: The #5/blue WWAN antenna cable connects to the WWAN module "#5/Main" terminal. The #6/ red
WWAN antenna cable connects to the WWAN module "#6/Aux" terminal.

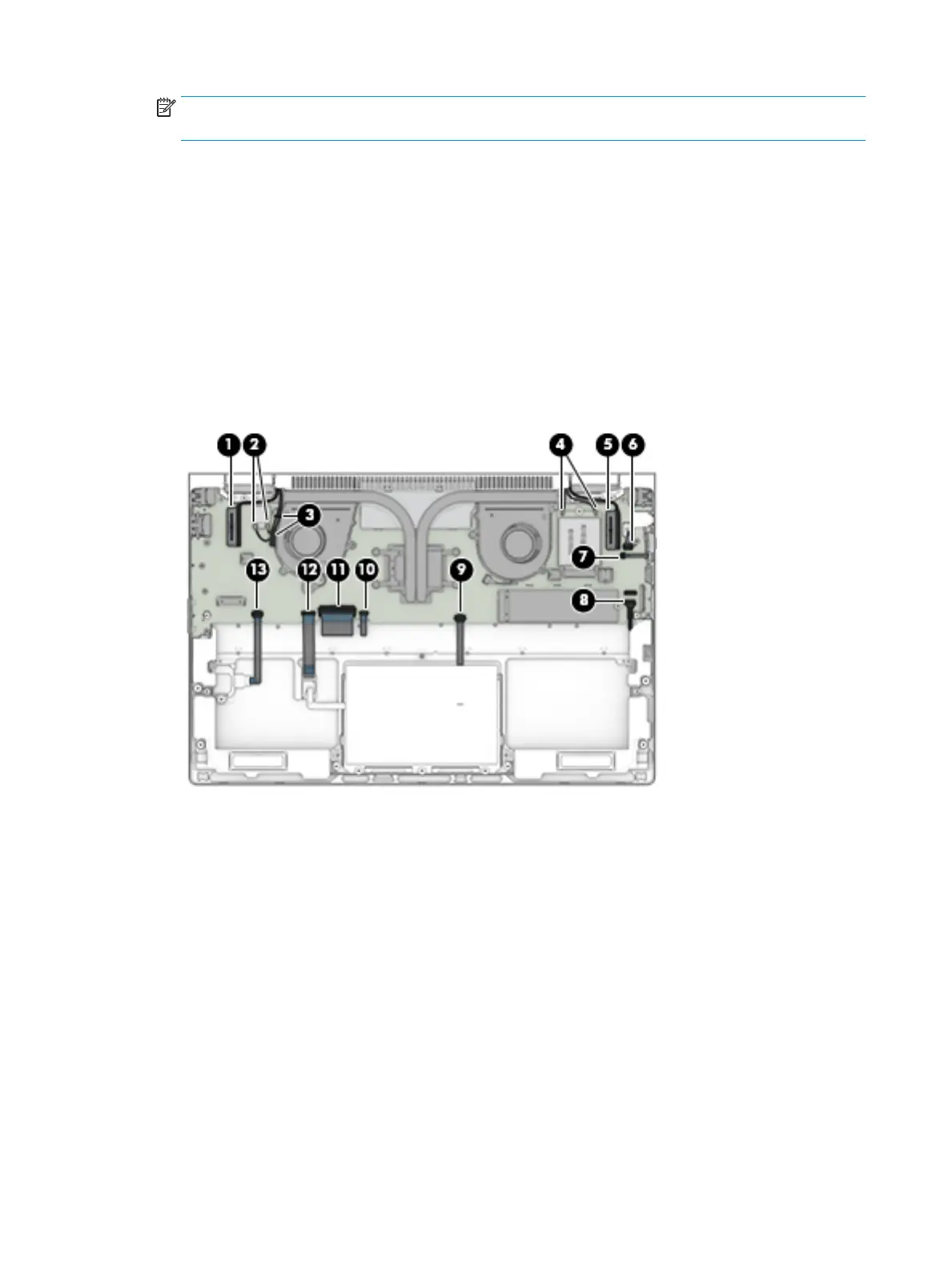

(5) Display panel cable cable
(6) Audio jack board ZIF connector cable
(7) Power button board ZIF connector cable
(8) Speaker cable
(9) TouchPad ZIF connector cable
(10) Keyboard backlight ZIF connector cable
(11) Keyboard ZIF connector cable
(12) NFC module ZIF connector cable
(13) Fingerprint reader module ZIF connector cable
2. Remove the six Phillips M2.0×4.2 screws (1) that secure the system board to the keyboard/top cover.
3. Remove the two Phillips M2.0×5.7 screws (2) that secure the system board to the keyboard/top cover.
42 Chapter 5 Removal and replacement procedures
