3. Detach the touchpad cable (3) from the computer. The touchpad cable is attached to the computer
with double-sided adhesive.
To install the touchpad cable, reverse this procedure.
Touchpad
To remove the touchpad, use this procedure and illustration.
NOTE: The touchpad spare part kit includes touchpad.
Table 5-16
Touchpad descriptions and part numbers
Description Spare part number
Touchpad N13694-001
NOTE: The touchpad spare part kit does not include the touchpad cable. The touchpad cable is included in the Cable Kit, spare
part number N09288-001.
Before removing the touchpad, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 39).
2. Remove the bottom cover (see Bottom cover on page 39).
3. Remove the battery (see Battery on page 41).
4. Remove the NFC module cable (see NFC module cable on page 62).
5. Remove the touchpad cable (see Touchpad cable on page 64).

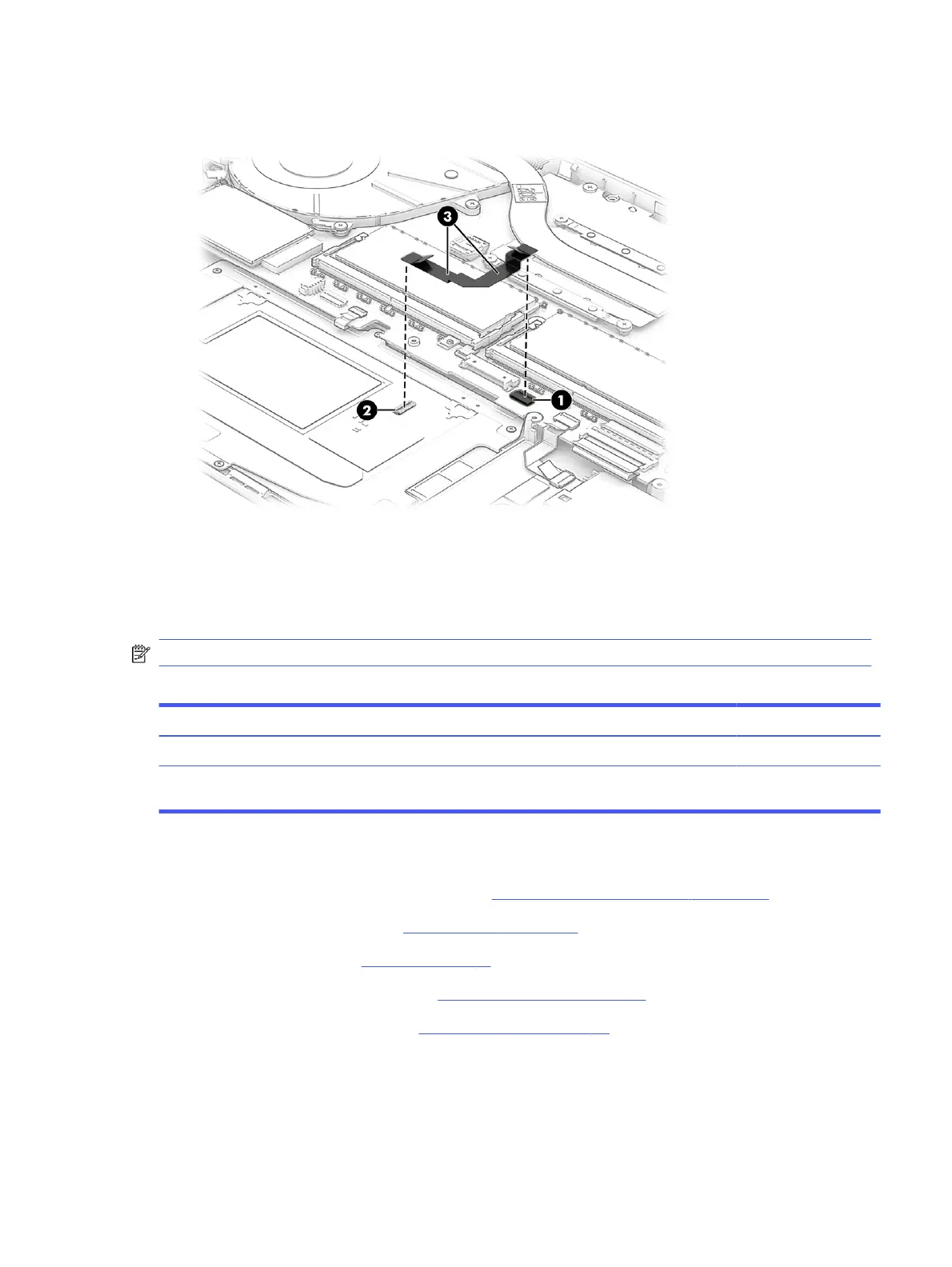

Remove the touchpad:
1. Release the ZIF connector (1) the NFC module cable is connected to, and then disconnect the NFC
module cable from the NFC module.
Touchpad
65
