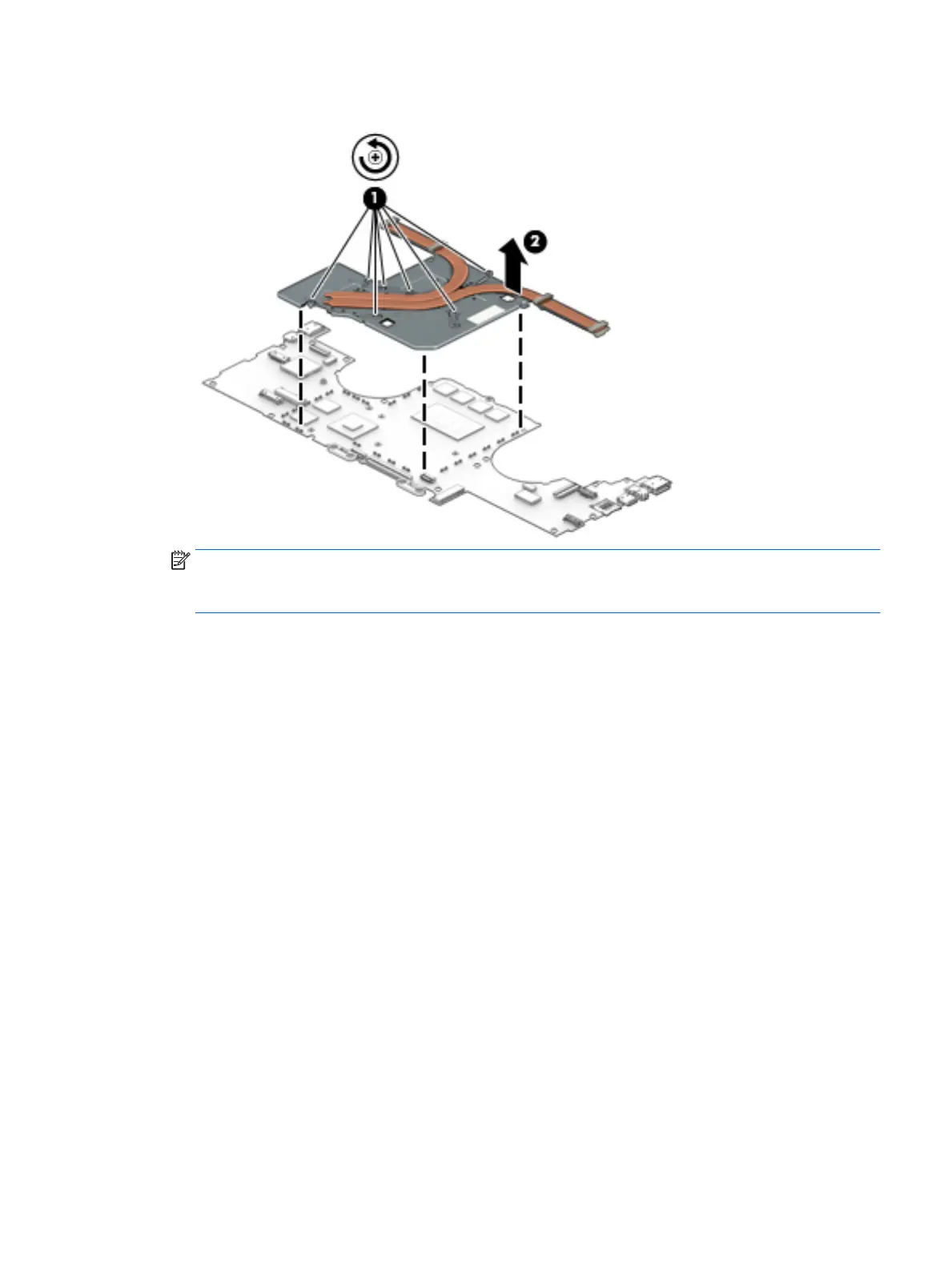

2. Remove the heat sink (2).
NOTE: Steps 3 through 6 apply to computer models equipped with a graphics subsystem with UMA
memory. See Steps 1 and 2 for heat sink removal information for computer models equipped with a
graphics subsystem with discrete memory.
3. Remove the Mylar shielding (1) that covers the heat sink screws.
4. Release the grounding foil (2) that covers the heat sink screws.
5. Loosen the three Phillips PM2.0×6.2 captive screws (3) that secure the heat sink to the system board.
Component replacement procedures 53
