2. With the remaining power cord, connect the other power supply to a rack power distribution
module. The power UID power switch LED turns green. The I/O module index number will
likely display 00, but if not, ignore the index number at this time.
3. Figure 14 (page 19) shows the complete cabling (both I/O modules) to one disk enclosure
in the expansion rack. In the disk enclosures above the controller enclosure in the main rack,
remove the cable between P2 (I/O-A) on the middle disk enclosure and P1 (I/O-A) on the
bottom disk enclosure.

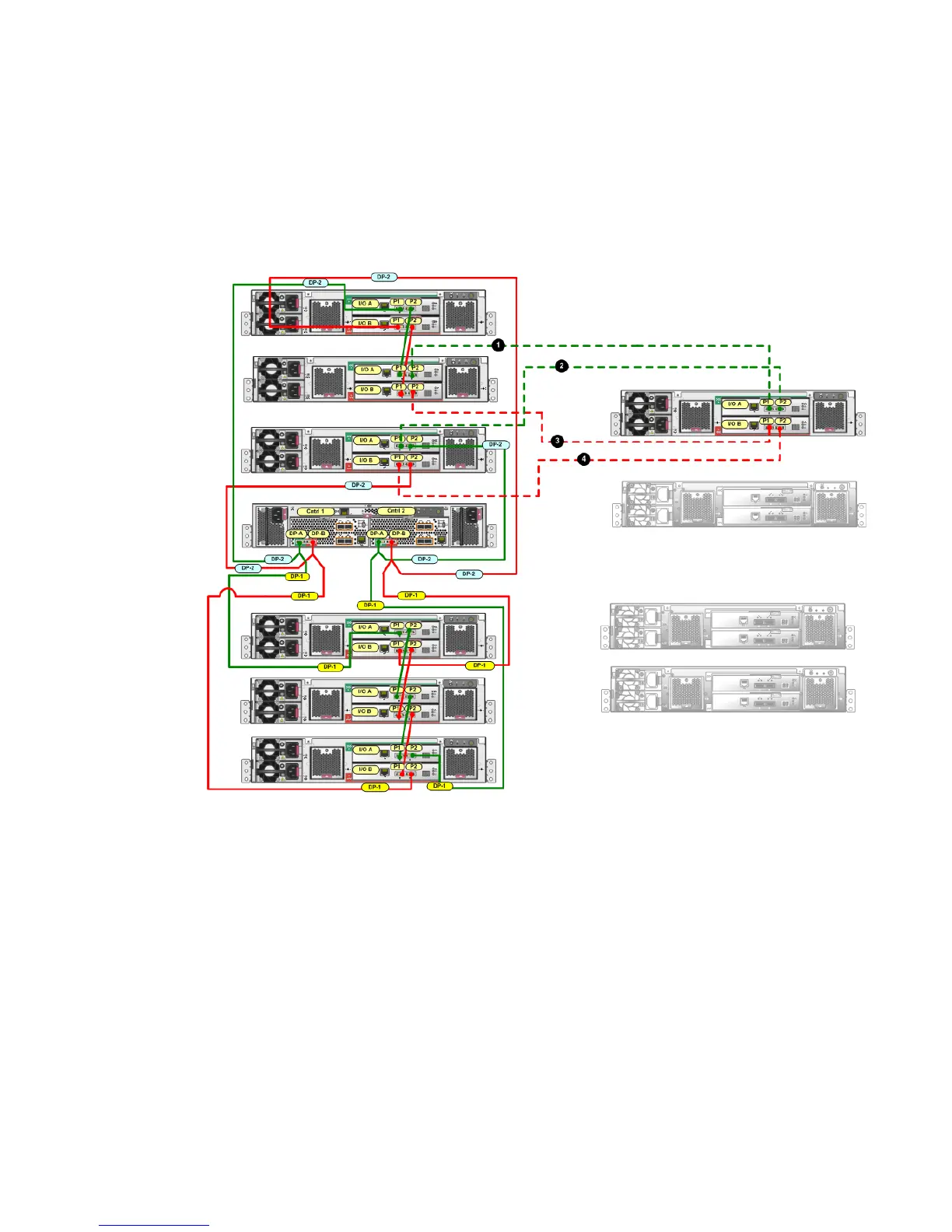

Figure 14 Connecting one expansion rack disk enclosure (first domain) to the P6500 EVA 2C6D
main rack
4. Using one of the 6m cables from the expansion kit, connect P2 (I/O-A) on the middle disk
enclosure in the main rack to P1 (I/O-A) on the top disk enclosure in the expansion rack (1,
Figure 14).
5. Using one of the 6m cables from the expansion kit, connect P1 (I/O-A) on the bottom disk
enclosure in the main rack to P2 (I/O-A) on the top disk enclosure in the expansion rack (2,
Figure 14).
In step Step 4 and Step 5, I/O module A is cabled first. However either I/O module can be
connected first as long as the other I/O module ports (in this example, B) in the main rack
disk enclosure are not unplugged until cabling is complete on the first I/O module and you
have completed Step 6.
6. Once you connect one I/O module (for example, A), verify the status of the I/O module A
ports and the presence of the newly added disk enclosures before you connect the other I/O
modules (in this example, B). Failure to complete this verification could result in potential loss
of data access for an extended period of time. Complete the following steps to verify:
a. Open HP P6000 Command View.
Online expansion 19
