Installing the switch in a 19-inch rack
Mounting brackets
Table 5 describes the mounting brackets applicable to the switch.
Table 5 Mounting brackets applicable to the switch
Switch model
Mounting brackets
Views
HPE 5140 24G 4SFP+ EI
HPE 5140 48G 4SFP+ EI
HPE 5140 24G PoE+ 4SFP+ EI
HPE 5140 48G PoE+ 4SFP+ EI
Mounting brackets A
(provided)
See A in Figure 2.
HPE 5140 24G SFP w/8G Combo 4SFP+ EI
HPE 5140 24G PoE+ 2SFP+ 2XGT EI
HPE 5140 48G PoE+ 2SFP+ 2XGT EI
HPE 5140 24G 2SFP+ 2XGT EI
Mounting brackets B
(provided)
See B in Figure 2.
HPE 5140 8G 2SFP 2GT Combo EI
Mounting brackets C with
product code R8M91A
(optional)
See C in Figure 2.

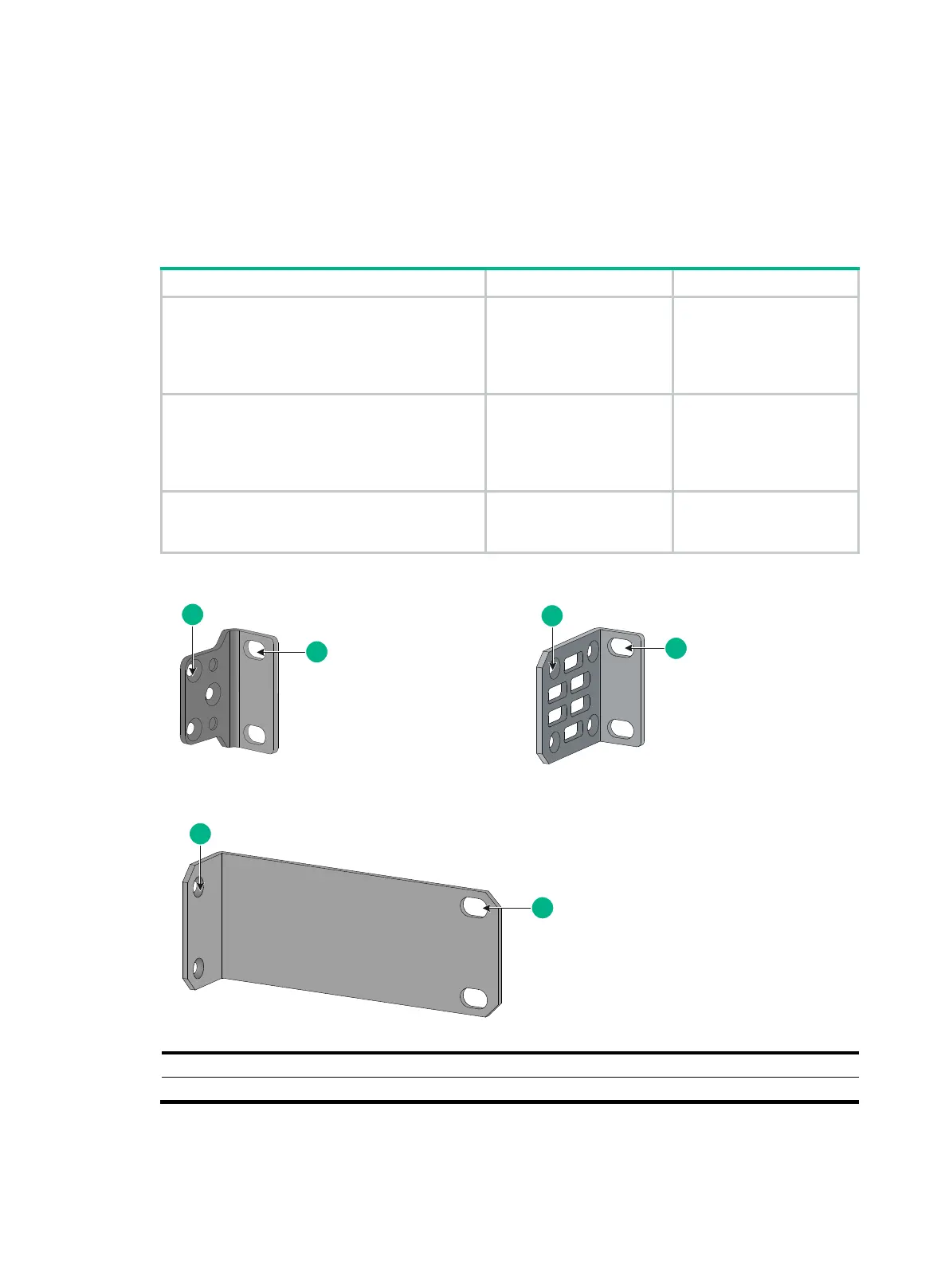

Figure 2 Mounting brackets
(1) Screw hole for attaching the bracket to the switch
(2 ) Screw hole for attaching the bracket to the rack post
1
2
(
A)
(
C)
1
2
(B)
1
2
