Chassis views
HPE 5140 8G 2SFP 2GT Combo EI

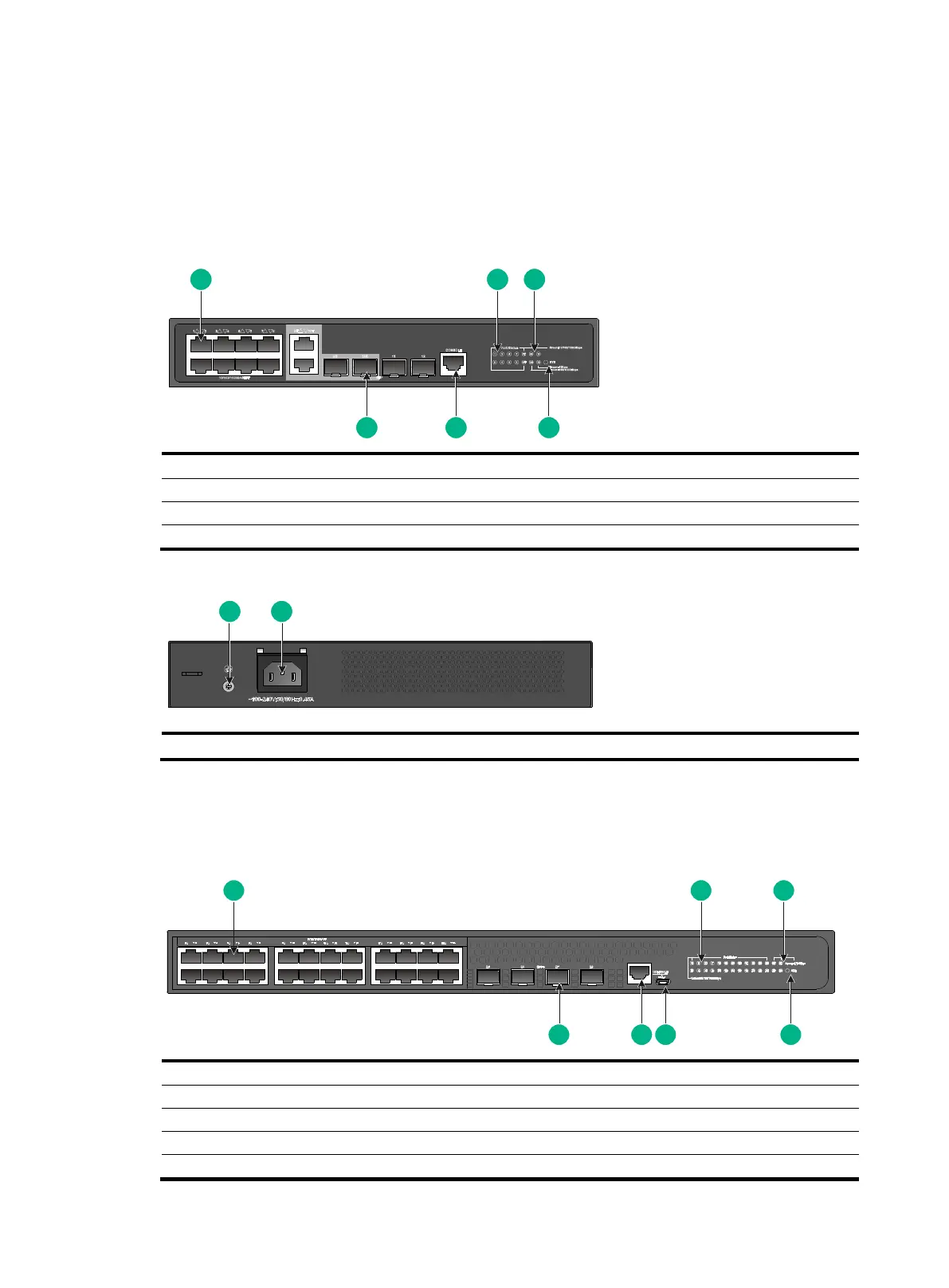

Figure 38 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) SFP port LED
(4) System status LED (SYS)
(5) Console port (CONSOLE)
(6) SFP port
Figure 39 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
HPE 5140 24G 4SFP+ EI
Figure 40 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) SFP+ port LED
(4) System status LED (SYS)
(5) Micro USB console port
(6) Console port (CONSOLE)
(7) SFP+ port
1
2 3
456
2
1
1
57
2 3
6 4
