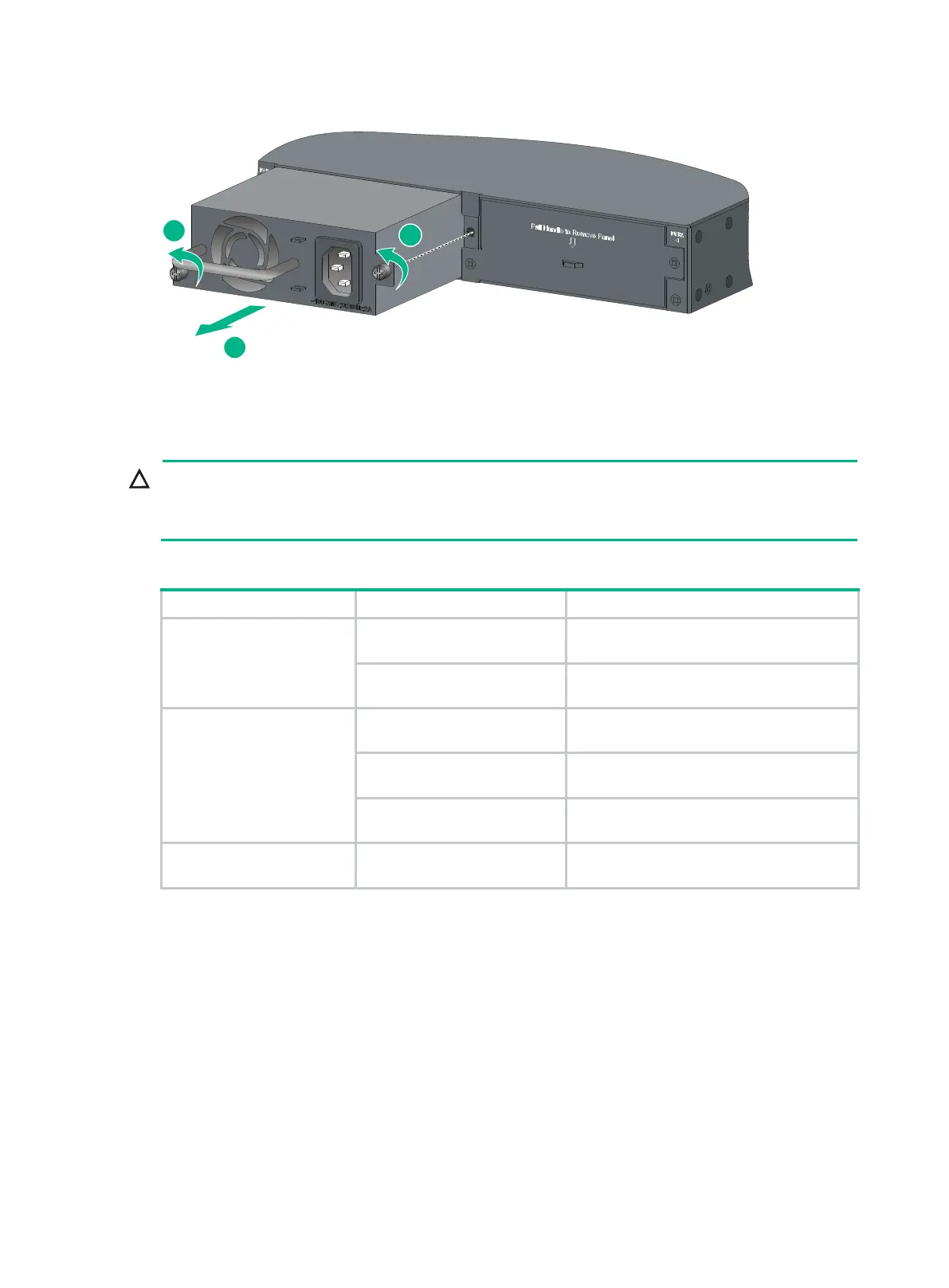

Figure 20 Removing a power supply
Connecting the power cord
CAUTION:
•
Provide a circuit breaker for each power cord.
• Before connecting the power cord, make sure the circuit breaker on the power cord is turned off.
Table 7 Power cord connection procedures at a glance
Switch model
Available power source
Connection procedure reference
HPE 5140 24G PoE+
4SFP+ EI
HPE 5140 48G PoE+
4SFP+ EI
AC power source
Connecting the AC power cord for the fixed
AC power supply
RPS1600-A
Connecting the DC power cord for the fixed
DC power supply
HPE 5140 24G SFP w/8G
Combo 4SFP+ EI
AC power source
Connecting the power cord for a
PSR150-A1
–48 VDC power source in the
equipment room
Connecting the power cord for a
PSR150-D1
RPS800-A or RPS1600-A
Connecting the power cord for a
PSR150-D1
Other HPE 5140 EI
switches
AC power source
Connecting the AC power cord for the fixed
AC power supply
The HPE 5140 24G SFP w/8G Combo 4SFP+ EI switches use removable power supplies. The
PSR150-A1 and PSR150-D1 power supplies are available for the switch. The PSR150-A1 power
supply uses AC power. The PSR150-D1 power supply uses –48 VDC power or RPS power.
Connecting the AC power cord for the fixed AC power supply
1. Connect the plug of the AC power cord to the AC-input power receptacle on the switch. See
Figure 21.
2. Use a cable tie to secure the power cord to the handle near the AC power receptacle. See
Figure 22.
3. Connect the other end of the power cord to an AC power source.
1
2
1
