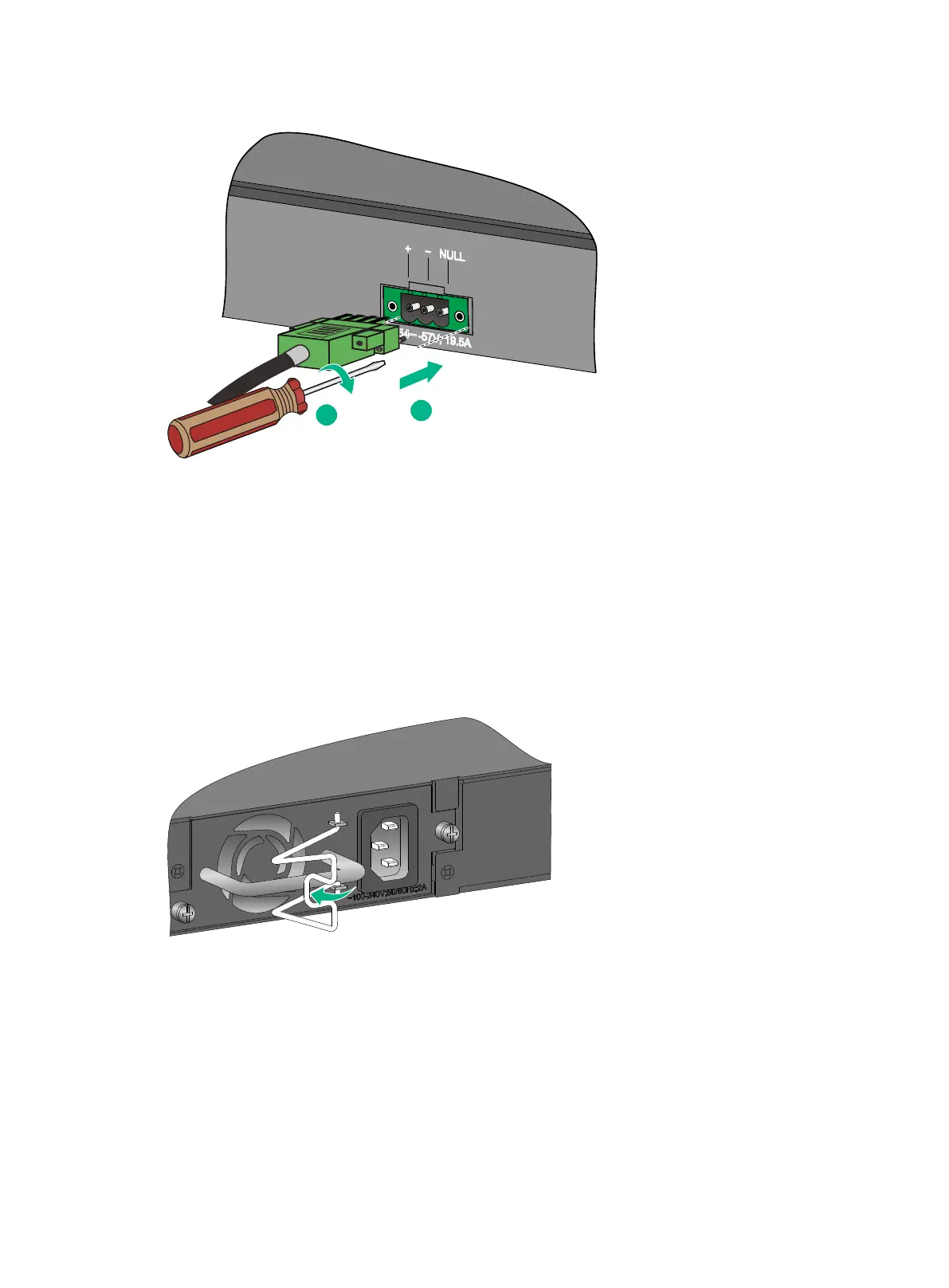

Figure 23 Connecting the DC power cord for the fixed DC power supply
Connecting the power cord for a PSR150-A1 power supply
1. Pull the bail latch leftward, as shown in Figure 24.
2. Connect the plug of the power cord to the power receptacle on the switch. See Figure 25.
3. Pull the bail latch rightward to secure the plug to the power receptacle. See Figure 25.
4. Connect the other end of the power cord to a power source.
5. Connect the power cord to an AC power source.
Figure 24 Connecting the power cord for a PSR150-A1 power supply (1)
