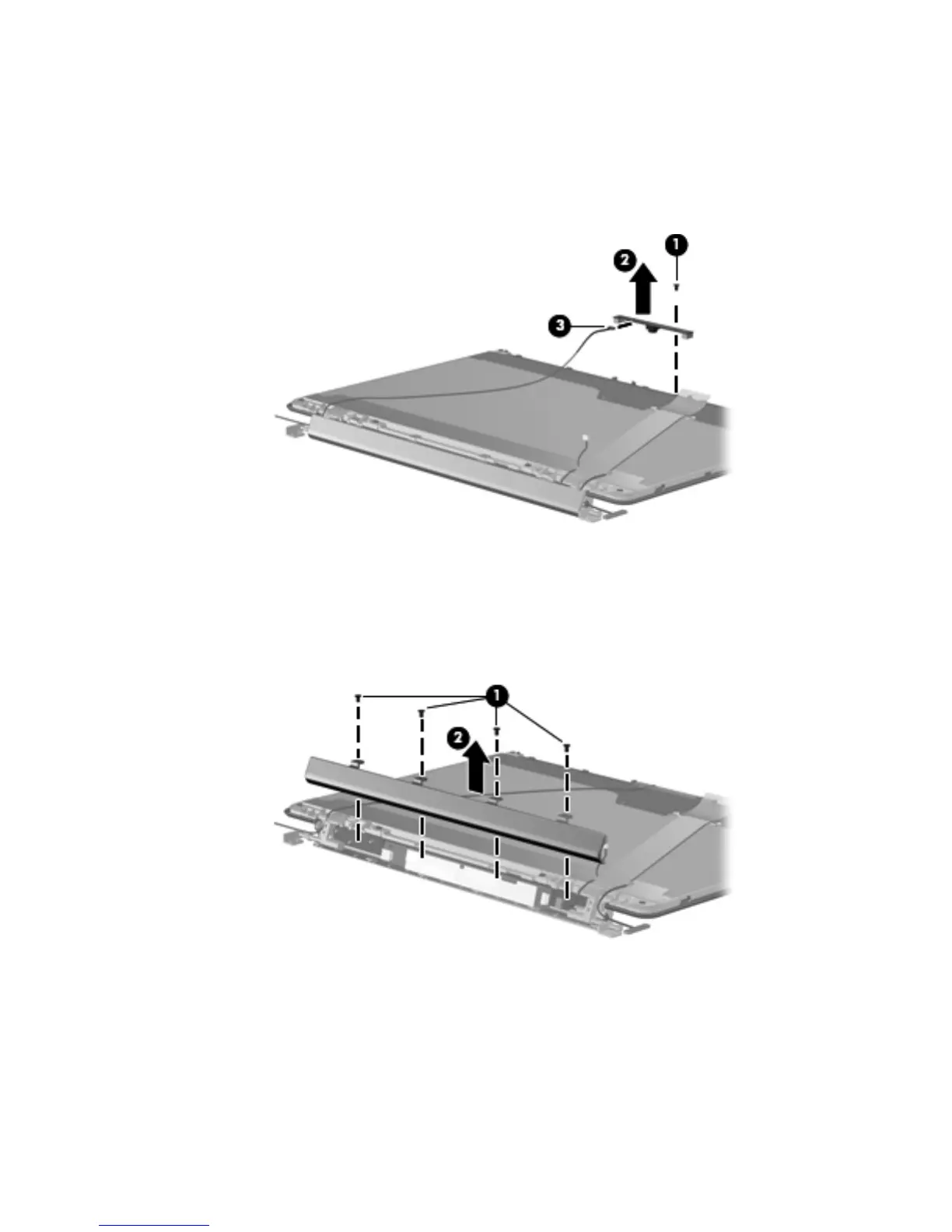

16. If it is necessary to replace the webcam/microphone module, remove the Phillips PM2.0×4.0 screw 1 that
secures the module to the display bezel.
17. Release the webcam/microphone module 2 as far from the display bezel as the webcam/microphone module
cable allows.
18. Disconnect the webcam/microphone module cable 3 from the webcam/microphone module, and remove the
webcam/microphone module. The webcam/microphone module is available using spare part number
496674-001.
19. If it is necessary to replace the display hinge cover, display inverter, display panel cable, or
webcam/microphone module cable, remove the four Phillips PM2.0×4.0 screws 1 that secure the display hinge
cover to the display bezel.
20. Remove the display hinge cover 2 from the display bezel. The display hinge cover is available using spare part
number 496464-001.
