21. If it is necessary to replace the webcam/microphone module cable, remove the cable from the display panel.
The webcam/microphone module cable is included in the Display Cable Kits, spare part numbers 496465-001
(for use only with dual-lamp display assemblies) and 514289-001 (for use only with single-lamp display
assemblies).

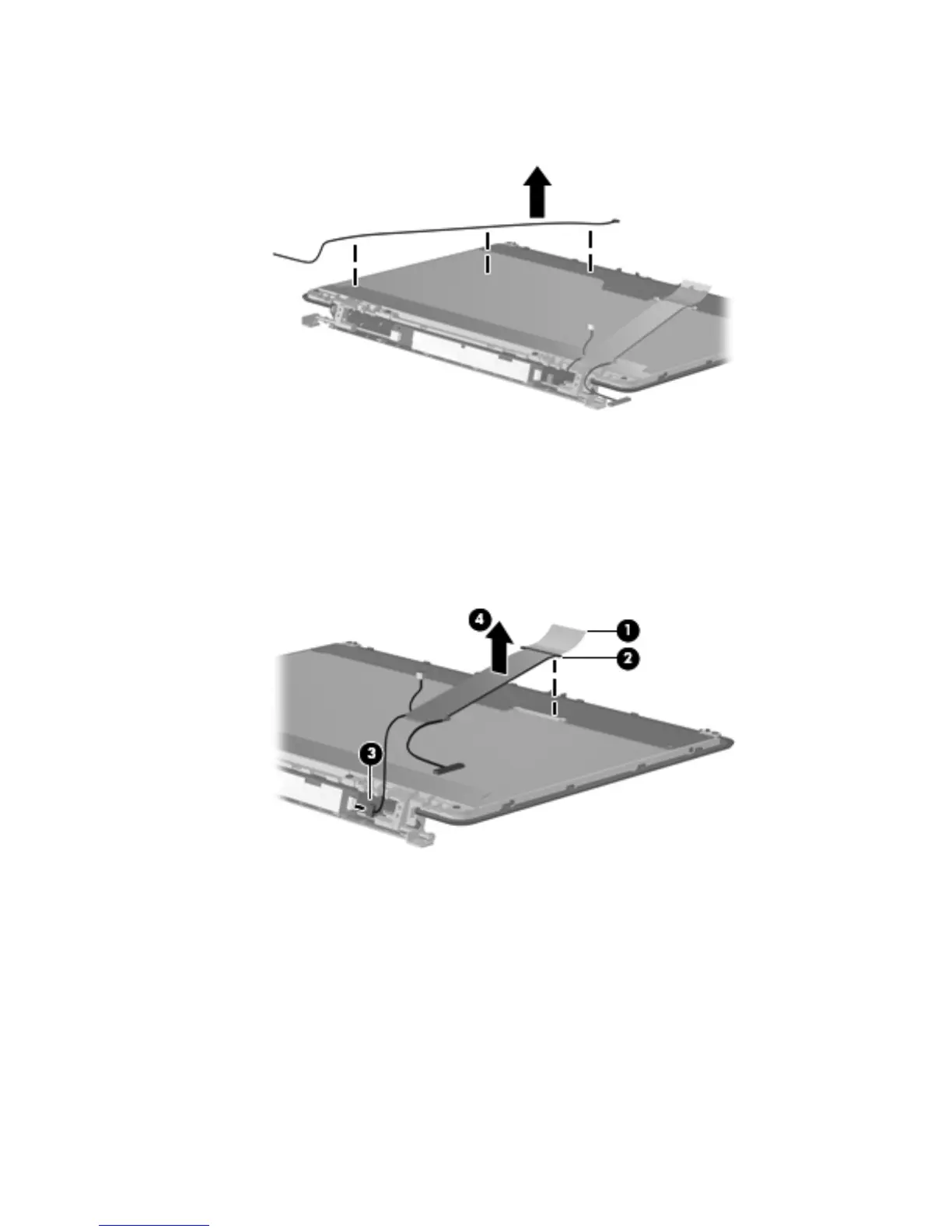

22. If it is necessary to replace the display panel cable, detach the adhesive reinforcement strip 1 that secures the
display panel cable to the display panel.
23. Disconnect the display panel cable 2 from the display panel.
24. Disconnect the display panel cable from the display inverter 3.
25. Remove the display panel cable 4. The display panel cable is included in the Display Cable Kits, spare part
numbers 496465-001 (for use only with dual-lamp display assemblies) and 514289-001 (for use only with
single-lamp display assemblies).
