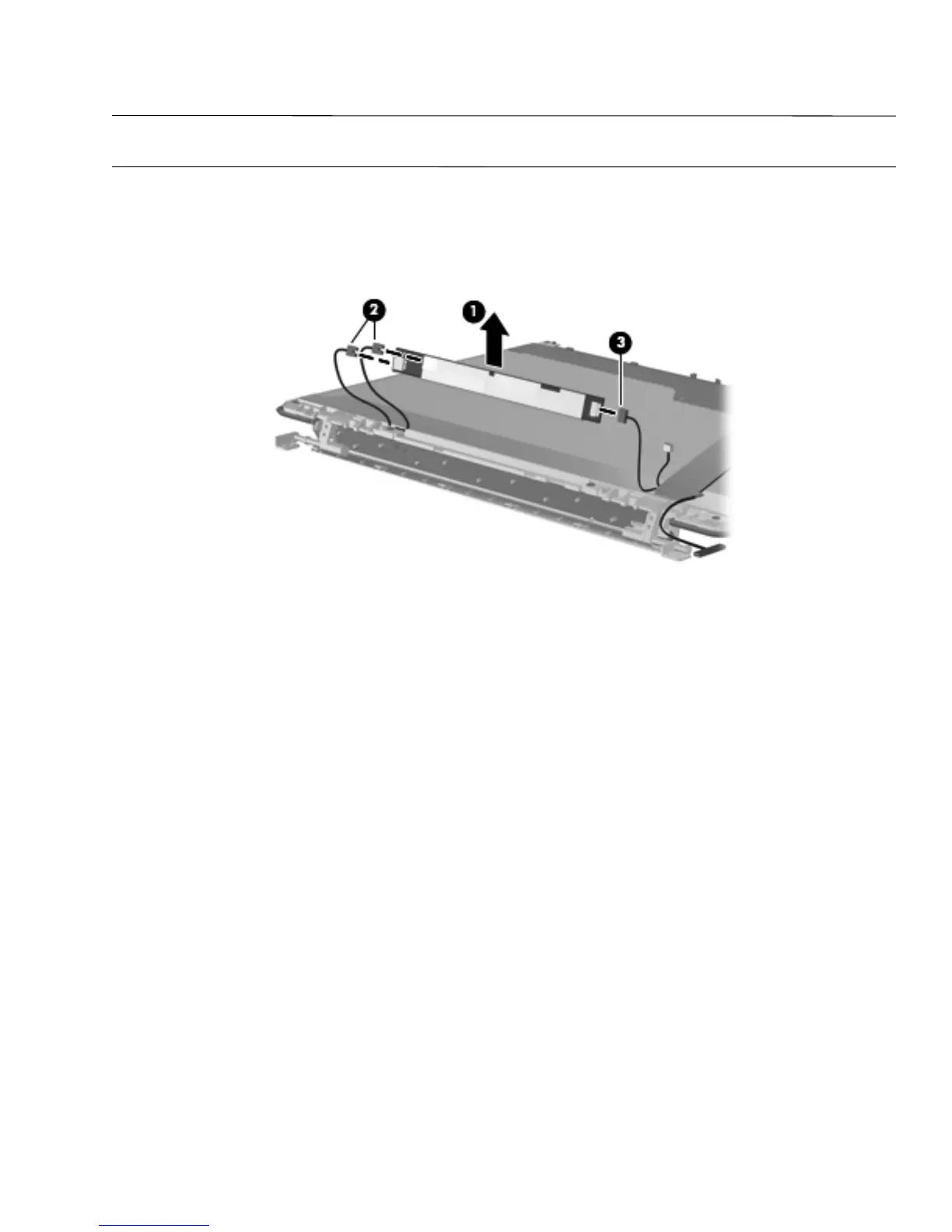

26. If it is necessary to replace the display inverter, release the display inverter 1 as far from the display bezel as
the backlight cables and display panel cable allow.
✎
Dual-lamp display assemblies will have two cables that must be disconnected in step 27. Single-lamp display
assemblies will only have one cable that must be disconnected.
27. Disconnect the backlight cables 2 and the display panel cable 3 from the display inverter, and remove the
display inverter. The display inverter is available using the following spare part numbers:
❏ 496467-001—for use only with dual-lamp display assemblies
❏ 499317-001—for use only with single-lamp display assemblies
