Removal and replacement procedures 4–38

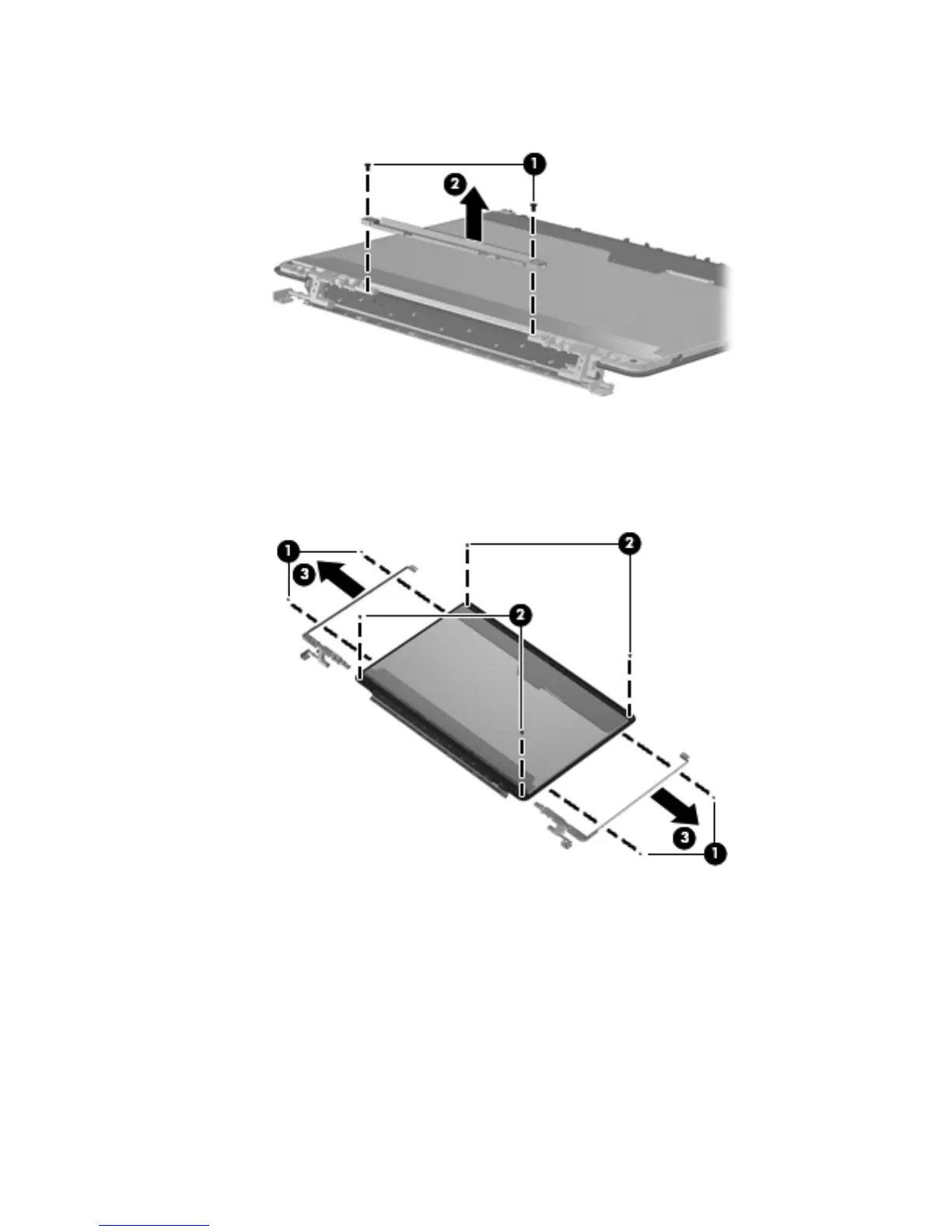

28. If it is necessary to replace the display hinges, remove the two Phillips PM2.0×4.0 screws 1 that secure the
display hinge bracket to the display bezel.
29. Remove the display hinge bracket 2.
30. Remove the four Phillips PM2.0×4.0 screws 1 that secure the display hinges to the display panel.
31. Remove the four Phillips PM2.5×7.0 screws 2 that secure the display hinges to the display panel.
32. Remove the display hinges 3. The display hinges and display hinge bracket are included in the Display
Hinge Kit, spare part number 496463-001.
Reverse this procedure to reassemble and install the display assembly.
